AMETEK CTs NetWave

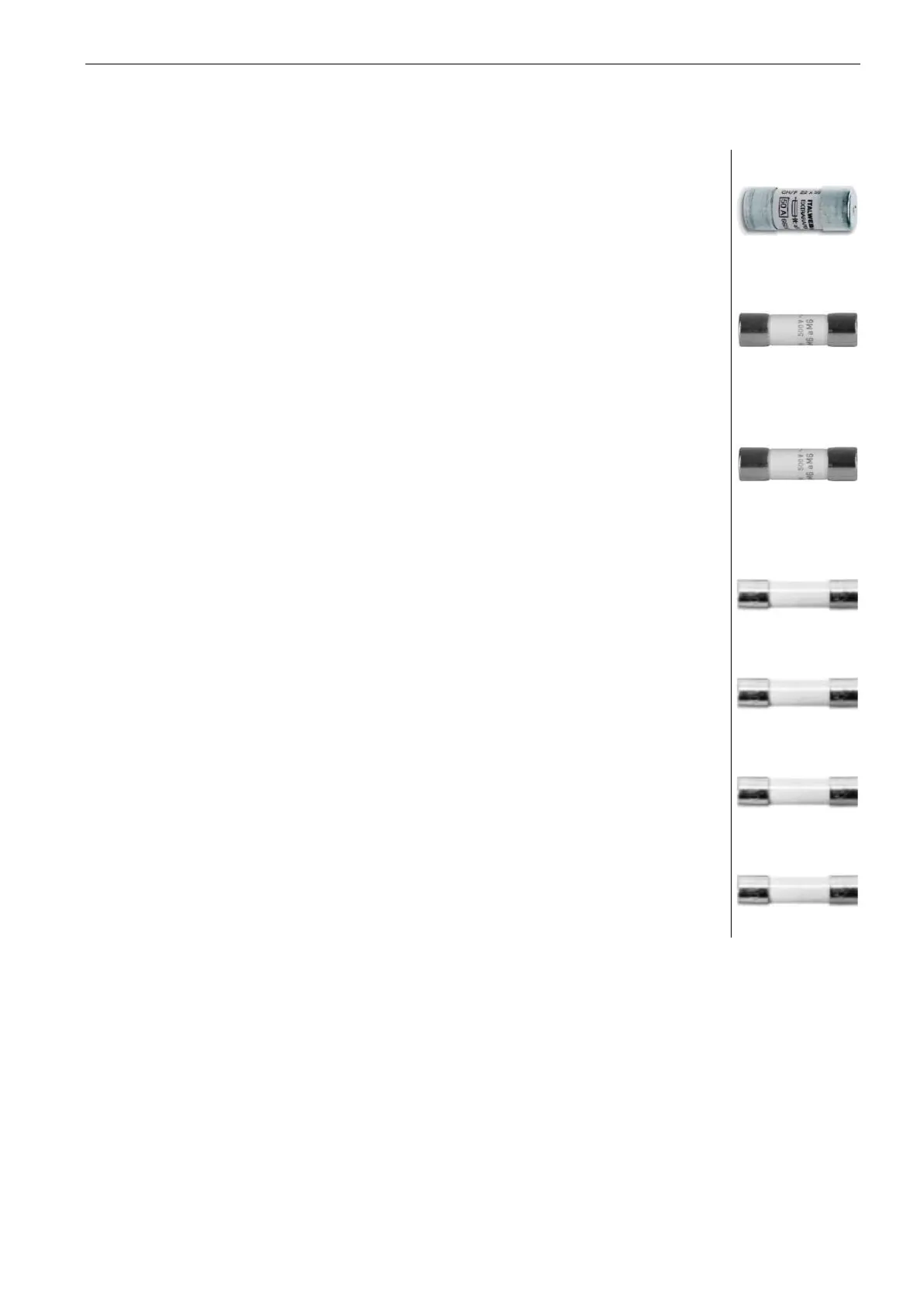

8.5.3. Fuses NetWave 30.x
The fuses are located at the right side of the NetWave behind the cover. For replace the user must open the
four screws at the cover.
F1…F3 Fuses for General Input Line R, S, T
Rated voltage: 500 V
Rated current : 80 A
Type : CH22 / gG ITALWEBER 1441080
Breaking capacity: >120 kA
22x58 mm
F4 – F 6 Fuses for Line Inverter phase unit R, S, T
Rated voltage: 500 V
Rated current : 1 A slow blow
Dimension : 10 x 38 mm
Type : aM Legrand
Breaking capacity: >120 kA
10x38 mm
F7 – F 8 Fuses for Input Auxiliary Transformer
Rated voltage: 500V
Rated current : 4A slow blow
Dimension : 10 x 38 mm
Type : aM Wimex
Breaking capacity: >120 kA
10x38 mm
F9 – F 10 Fuses for Output Auxiliary Transformer
Rated voltage: 250 V
Rated current : WGT 5 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F11 – F 12 Fuses for Controller
Rated voltage: 250 V
Rated current : WGT 3.15 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F13 – F 20 Fuses for Auxiliary Supply Inverter Phase R, S, T and Fan
Rated voltage: 250 V
Rated current : WGT 2.5 A slow blow
Dimension : 5 x 20 mm
5x20 mm
F21 – F 22 Fuses for Safety Circuit
Rated voltage: 250 V
Rated current : WGT 1 A slow blow
Dimension : 5 x 20 mm
5x20 mm
