AMETEK CTs NetWave
Alarm
Meaning
Error Code
binary value
Digit: - - - x
CVMAX
Overvoltage
1
CVMIN
Under voltage
2
CTMAX
Overtemperature
4
CCRT
Inverter
8
Digit: - - x -
IM
Limit Out ( Overcurrent)
1
DV
Limit Out ( Overcurrent)
2
DIM
Limit Out ( Overcurrent)
4
PE
Overvoltage PE
8
Digit: - x - -
LINE
Fault in Line
1
OUT
Overvoltage Output
2
BUS
Overvoltage Bus
4
CRT
Sink Inverter
8
Digit: x - - -
OVC
Limit Input Sink Current
1
2
4
8

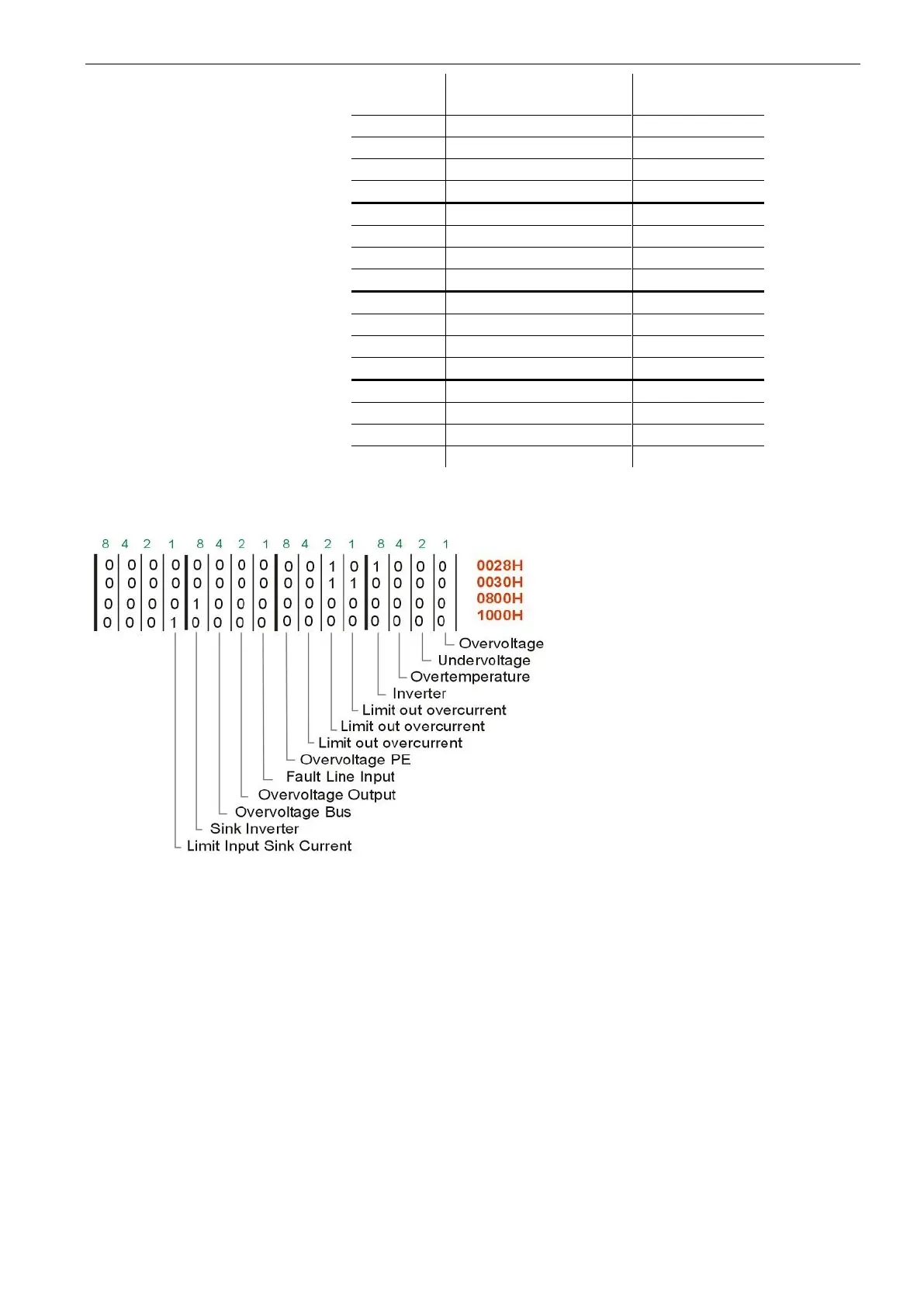

Binary table of error messages
Examples:
Alarm 0028 = Inverter and overcurrent
Alarm 0030 = Limit Out and overcurrent
Alarm 0800 = Sink Inverter
Alarm 1000 = Limit Input Sink Current
Alarm 0001 = Overvoltage
5.3.3. Error Messages
ERROR: [Power Source 1 2 3] Termination Adapter (Part No 101732) is not connected properly at the
Framebus
NetWave 1-ph: Check the terminating adapter at the Framebus OUT
connector at the rear panel.
NetWave 3-ph: Termination adapter is internal mounted at the AC-source
for phase L3.
This Adapter connects Pin 1 to 9 via a 120 resistor for terminate the
Framebus.
