3 Layout of the instrument
The working zone is in front of and to the right of the instrument.
3.1 Front side

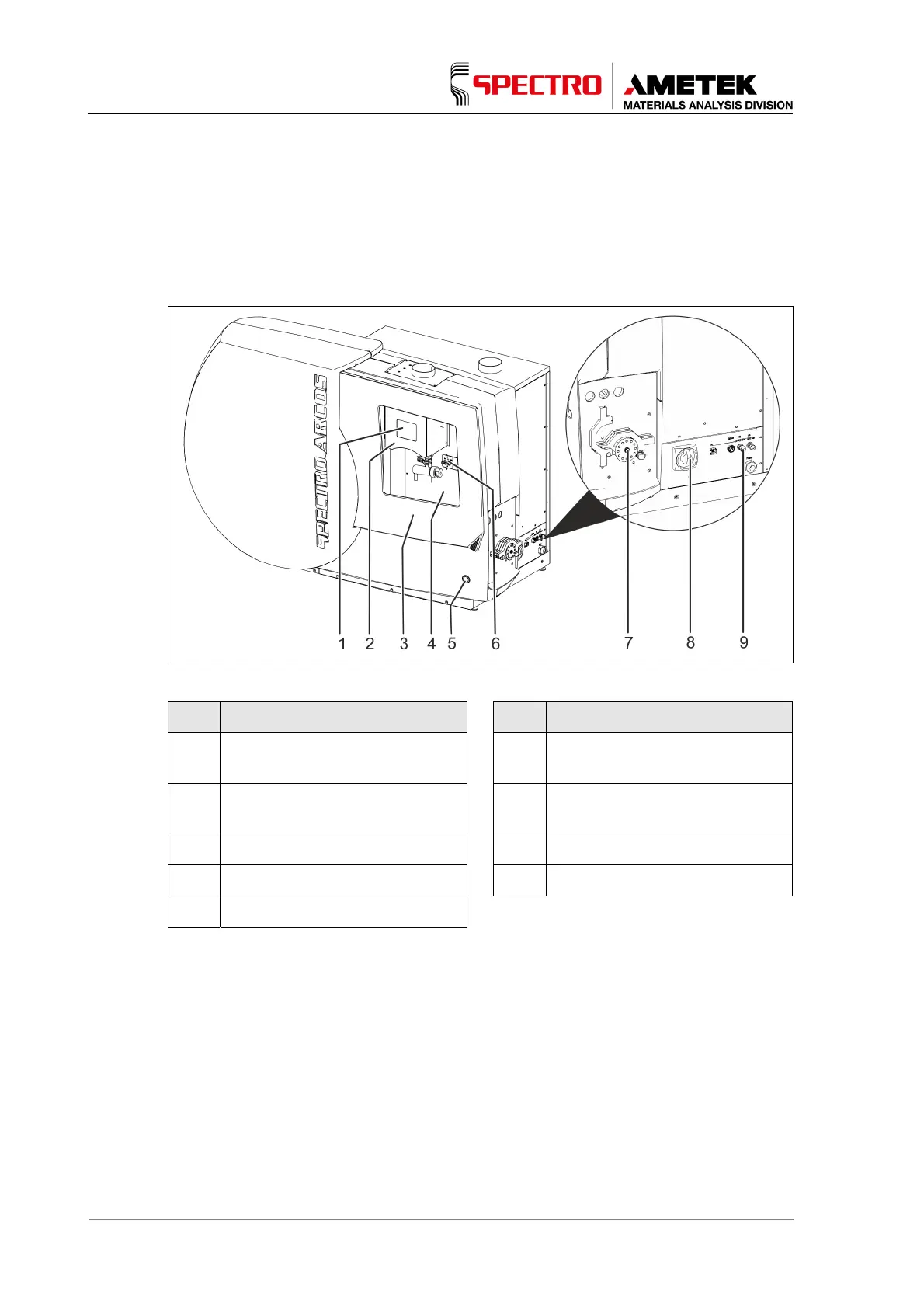

Fig. 1
No. Component No. Component
1
Plasma torch box inspection
window
6
Connection to sample introduction
system
2 Plasma torch box housing 7 Peristaltic pump (sample
transport)
3 Drip pan (behind door) 8 Main switch
4 Sample introduction chamber 9 Connection points
5 Plasma off
