Transportation/Setting-up
SPECTROCHECK — 07.05.2015 — 15
5 Transportation/Setting-up
Notice! Measurement errors!
If the instrument is subject to vibrations and shocks, measurement errors
may occur during the measuring process.
The instrument must be installed in a vibration- and shock-free location.
Measurement errors result from temperature differences inside the
instrument.
The instrument must be installed at a location, where it cannot heat up
or cool down on one side only.
Observe the following information regarding the instrument's installation:
All connections are located at the back panel.
The instrument must be accessible from the front and from both sides for
maintenance purposes. Set up the instrument accordingly. Sufficient space
should be provided for the computer workstation (keyboard, monitor, printer,
and sample changer, if necessary) and operating personnel.
The clearance from other objects must be at least 20 cm (including the rear).
A table of corresponding dimensions and load-carrying capacity is required,
see chapter 4 „Technical data“ on page 14.
In addition to the space required by the SPECTROCHECK, some space is
needed for the gas supply, unless fixed gas connections are available.
5.1 Space requirements

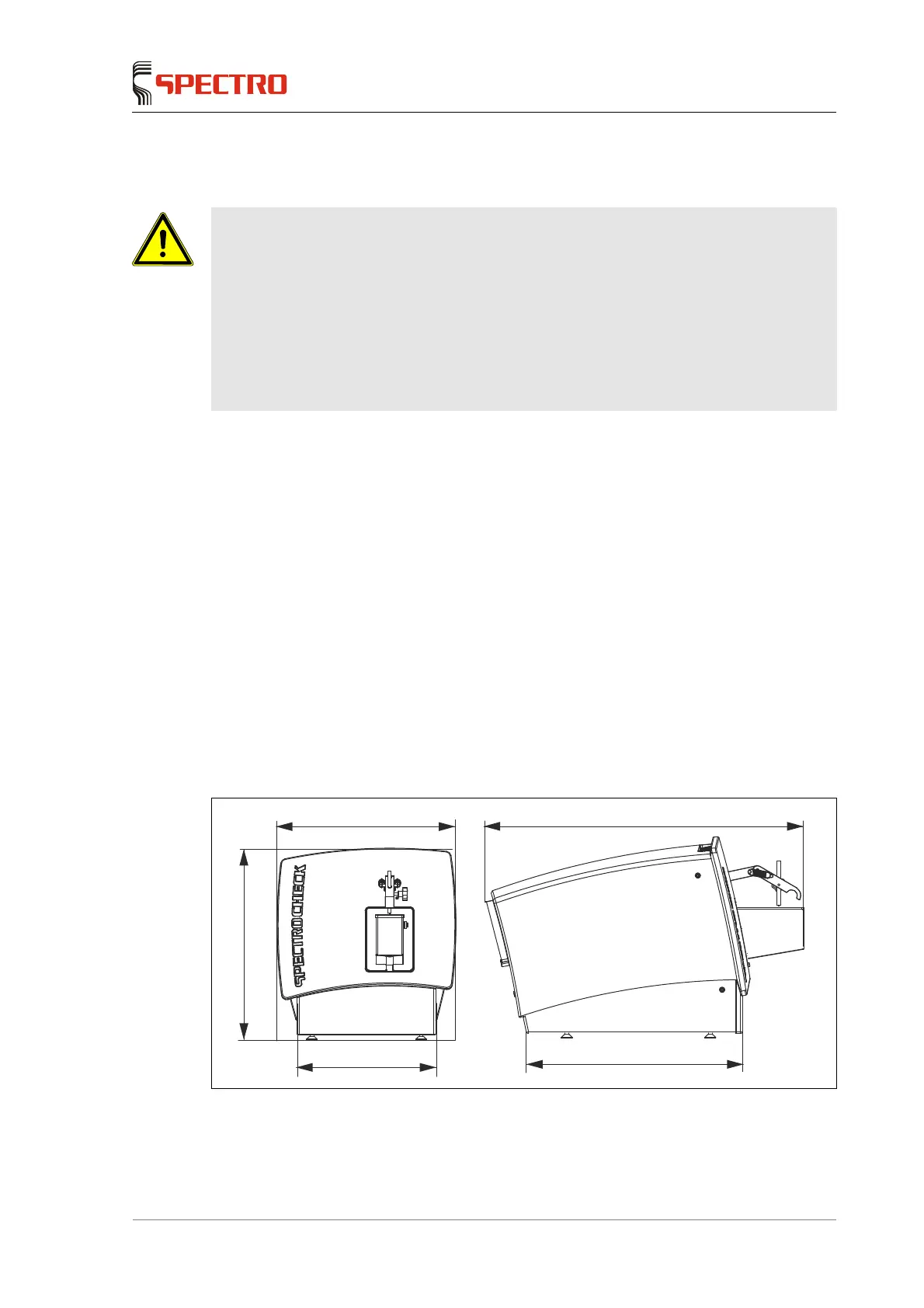

547 mm (21.6")
510 mm (20.1")
395 mm (15.6")
590 mm (23.2")
865 mm (34.1")
