Maintenance
— 32 SPECTROCHECK — 07.05.2015

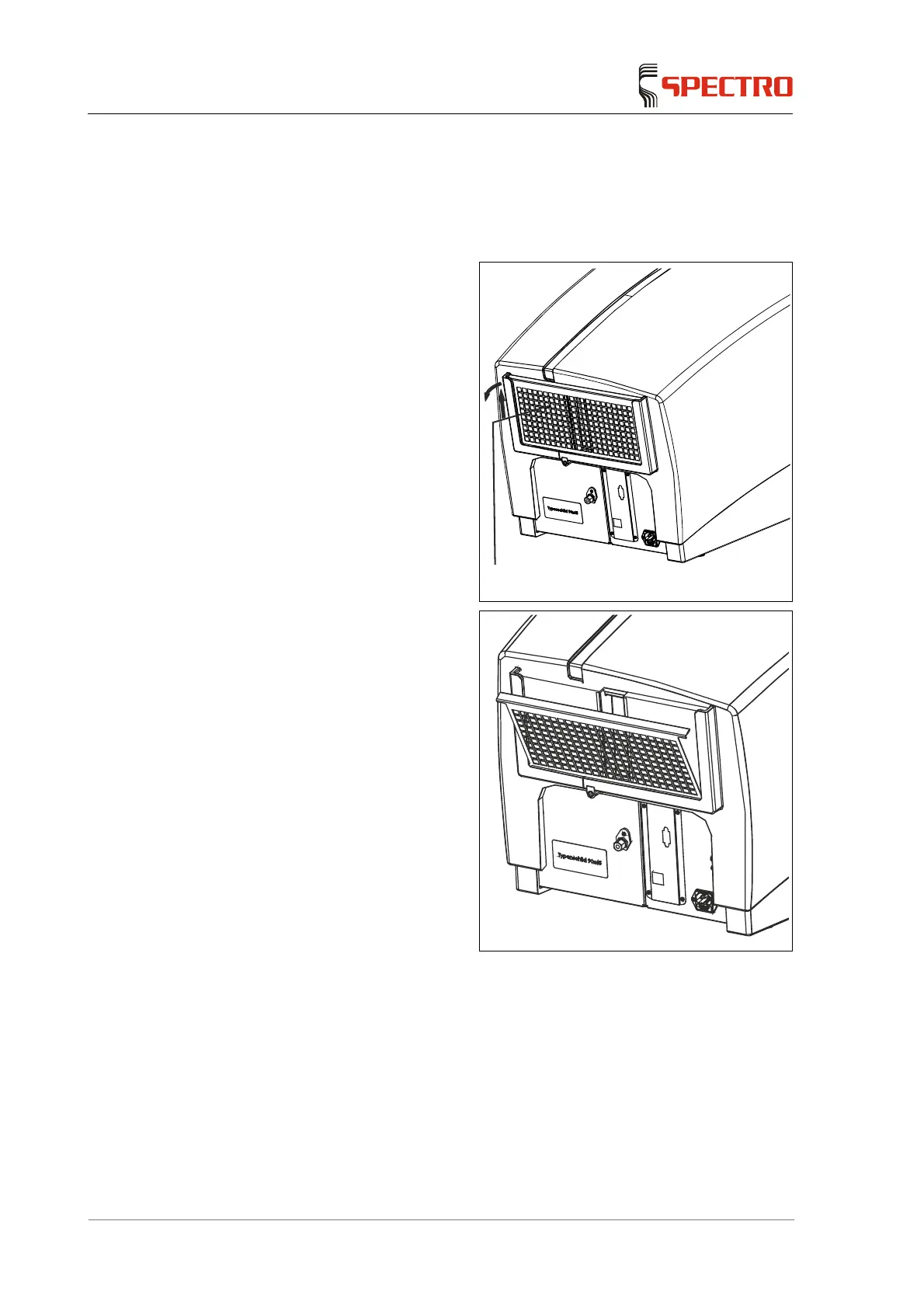

8.5 Replacing the air filter
In order to replace the air filter, proceed as follows:
1. Carefully lift the filter holder (1)
then pull it back.
2. Remove the old filter.
3. Install the new filter. First,
carefully install the mat with the
rounded edges. Subsequently,
place the square mat on top.
4. In order to insert the filter
bracket, hold it at an angle, tilt it
towards the front and then lower
it into the guide rail.
Now, the filters are replaced.
1
