Service and Parts | 7-7

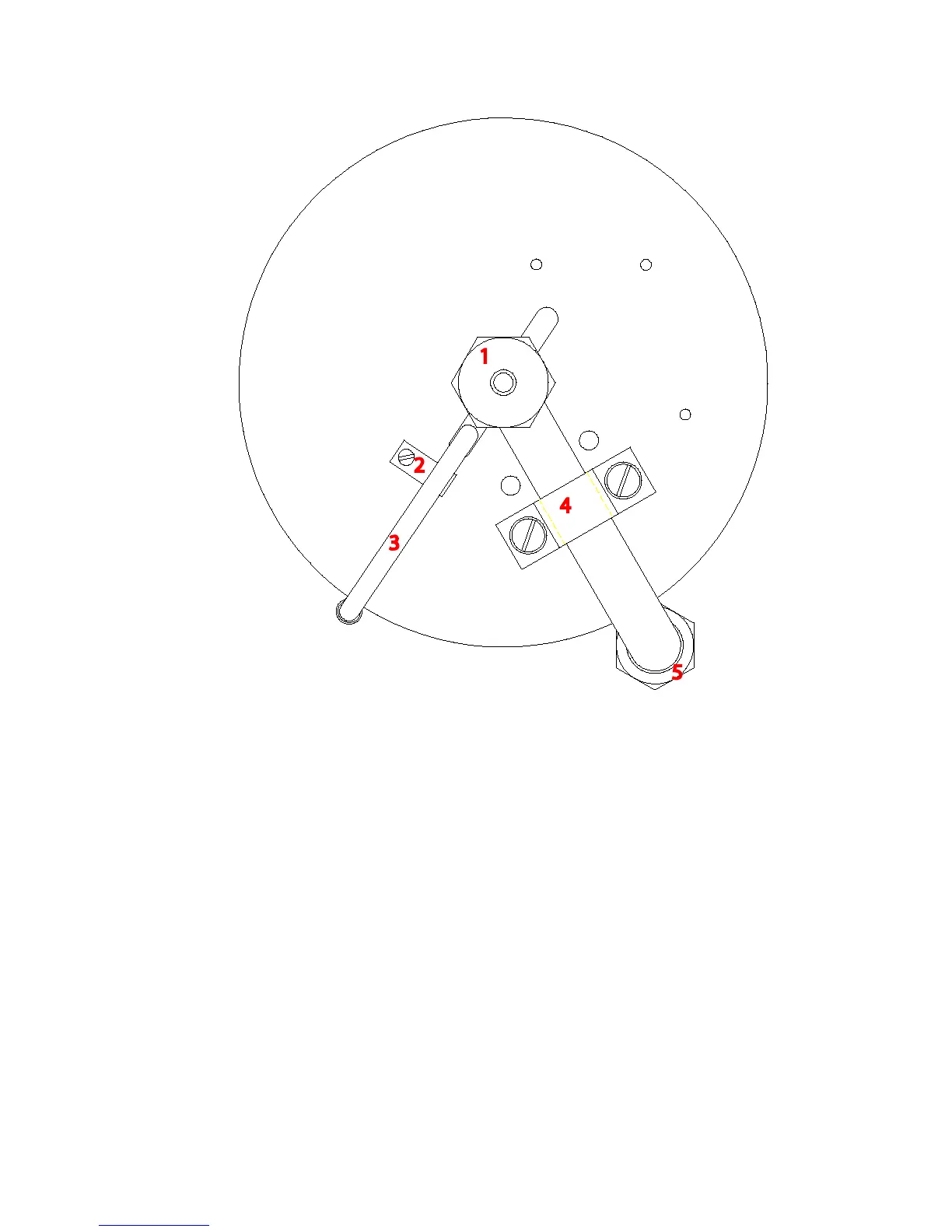

TOP VIEW - FURNACE
1 Cell housing
2 Thermocouple mounting tab
3 Thermocouple
4 Convection loop mounting clamp
5 Compression tting
Figure 7-3. Thermocouple replacement.
