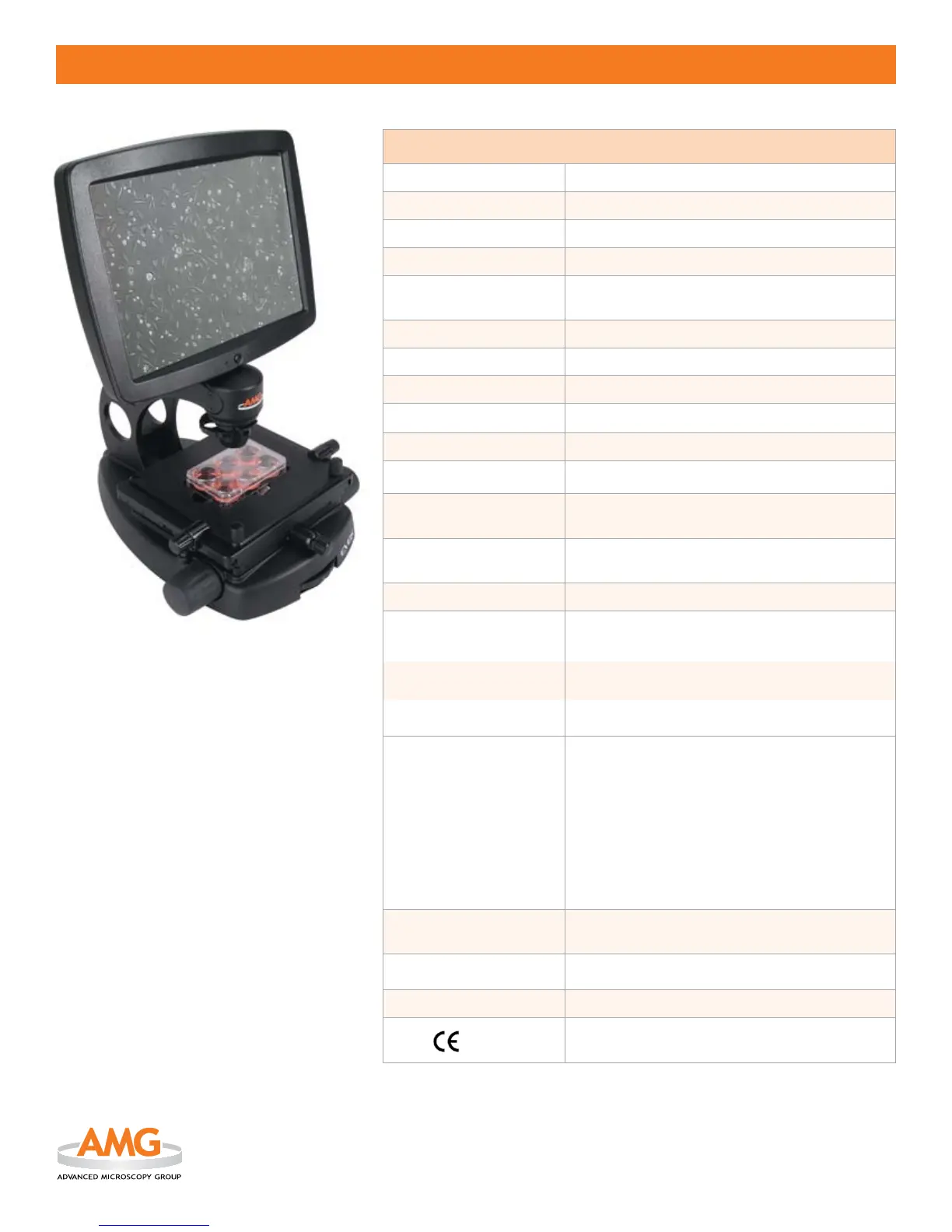

EVOS™ User Guide
SPECIFICATIONS
EVOS SPECIFICATIONS
Optics Innity corrected optical system
Standard Objectives LWD; 4xBF, 10xPh, 20xPh; 40xPh (optional)
Olympus Objectives LWD; 4xPh; 10xPh, 20xPh; 40xPh (optional)
Objective Turret 4-position, with front-mounted control
LCD Display
15”, color, 1024 x 768 pixels, controls for backlight
contrast and saturation; adjustable positioning
Camera 3MP color CMOS
Captured Image Resolution 2048 x 1536 pixels
Captured File Format DNG le format; 3MB/image
Illumination LED, 50,000-hour service life with dimmer
Contrast Methods Brighteld and Phase Contrast
Standard Condenser 3-position turret for BF, 10x/20x Phase and 40x Phase
Olympus Condenser
3-position turret for BF, 4x Phase and 10x/20x/40x
Phase
Filter Assemblies
Brighteld: Pinhole and Diuser lters included
Phase: Green lter included
Focusing Dual, low-position controls with rubber grip
PLAIN STAGE
196 mm x 196 mm (7.7” x 7.7”) plain stage; X
low-position, 110 mm (4.3”) from table; X
Working Distance with
Condenser
62 mm (2.4”) X
Dimensions Height: 587 mm (23.1”) with LCD raised to maximum;
Width: 363 mm (14.3”); Depth: 449 mm (17.7”)
MECHANICAL STAGE
x-y axis ne-positioning controls; X
low-position, 110 mm (4.3”) from table X
interchangeable vessel holders available for most X
common shapes & sizes
110 mm x 110 mm (4.3” x 4.3”) viewable area
X
Working Distance w/ Multi-
well Stage Plate
58.0 mm (2.3”) X
Dimensions Height: 587 mm (23.1”) with LCD raised to maximum;
Width: 363 mm (14.3”); Depth: 449 mm (17.7”)
Weight
11.8 Kg (26 Lb.) - PLAIN STAGE
13.6 Kg (30 Lb.) - MECHANICAL STAGE
Storage Device/Output Secure Digital (SD™) card or USB2 connection to PC
Software Micron(EVOS) imaging software (included)
Power Supply
AC Adapter; Input 100-240V, 50-60Hz, 0.5A;
Output 12 VDC
4x: 3.6mm x 2.7mm
10x: 1.44mm x 1.08mm
20x: 0.72mm x 0.54mm
40x: 0.36mm x 0.27mm
