OPTION #2: Replace the Disposable Body (see Figure 4)

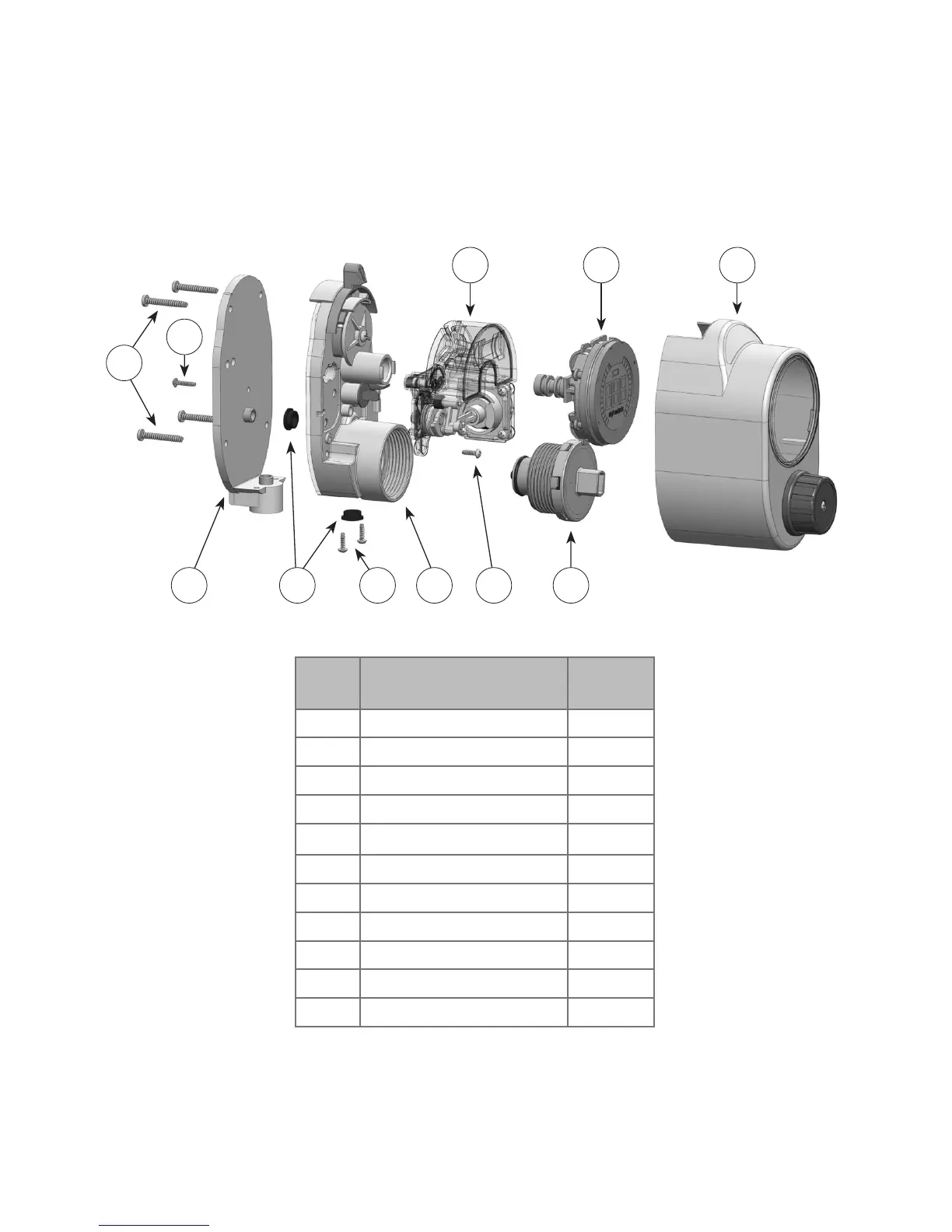

Figure 4: Replace Disposable Body - Scout
Cleaning Instructions - Scout
Item # Part # Related
Steps
1 Front Housing 1, 12
2 Vacuum Gauge 2, 7, 11
3 Regulating Module 3, 10
4 Intermittent Module 4, 9
5
Control Knob Screw 4, 9
6 Disposable Body 5, 7, 8, 10
7 Disposable Back Screws 5, 7, 8
8 Port Gasket 6, 7, 8
9 Back Housing 5, 8
10 Disposable Body Back Screws 5, 7, 8
11 Housing Screws 1, 12
11
4
89
2
67
1
3
10
5
