4. Select power level and switch to 'ON' - The light should blink.
5. Trace the wire with the 2000. The signal will stop at the break in the
wire.
A2201 Clamp-On Transmitter Accessory
Enables the T2200 to induce its signal onto an unenergized or energized
circuit. Plug the A2201 into the T2200 and clamp it around any conductor
in an unenergized circuit, or the hot wire in an energized circuit. The
signal will be induced on top of the 50 Hz frequency which may be
present. The A2201 acts like a 1/2 Volt battery when clamped around a
conductor. On a complete circuit this voltage will cause about 80mA of
current to flow on top of whatever frequency is present.
To increase the signal strength, loop the wire around the clamp a few
times or use the B2024 Battery Pack. The A2201 will allow wire tracing
without the need for direct connection.

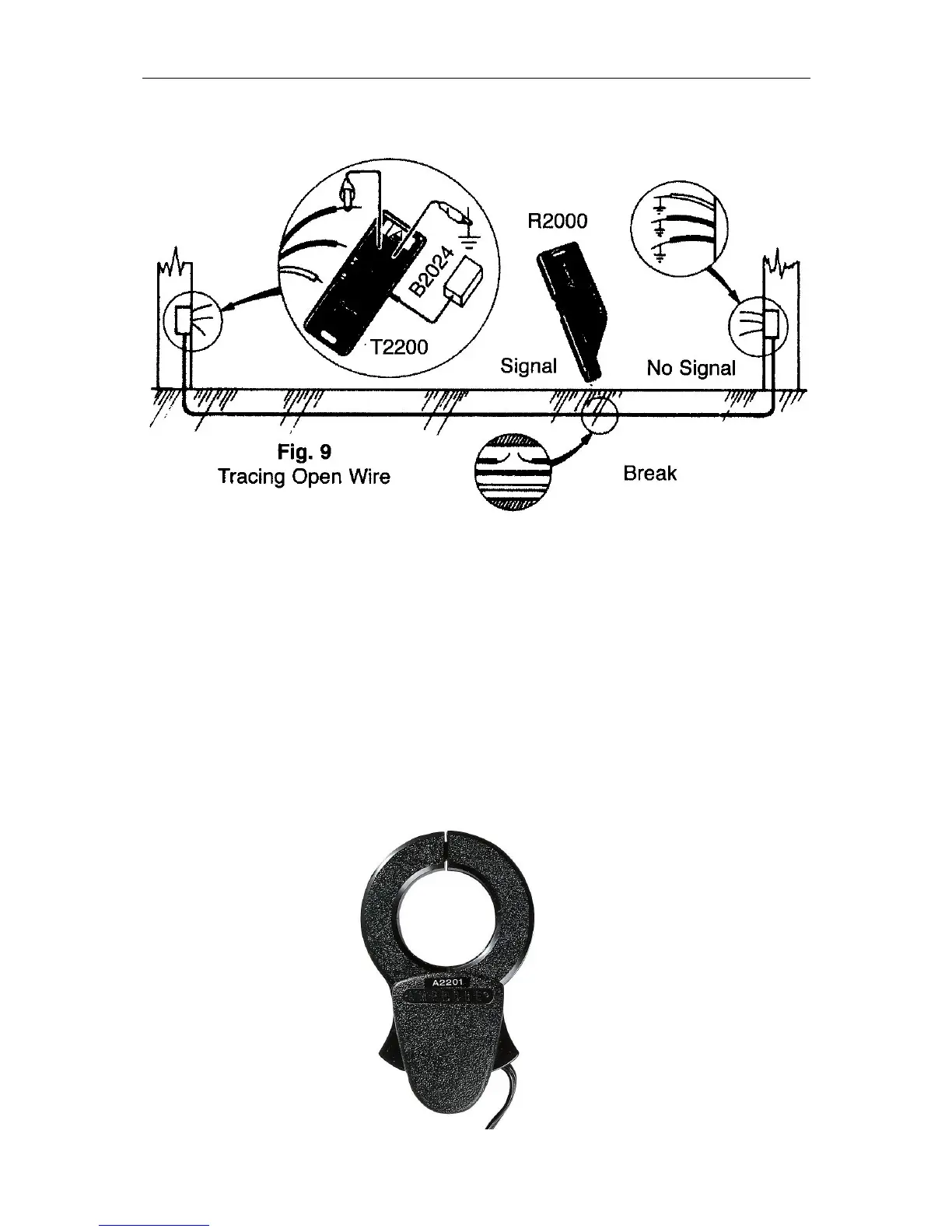

Fig.10
