COMPONENT DESCRIPTION
R2000 Receiver
Has two built in detector that are tuned to pick up the 32.768khz signals
generated by any of the other devices in the AT-2000 family: S2300,
S2600, T2200, A2201. The R2000 is designed to display the signal's
strength to enable quick locating of the conductor carrying the signal.

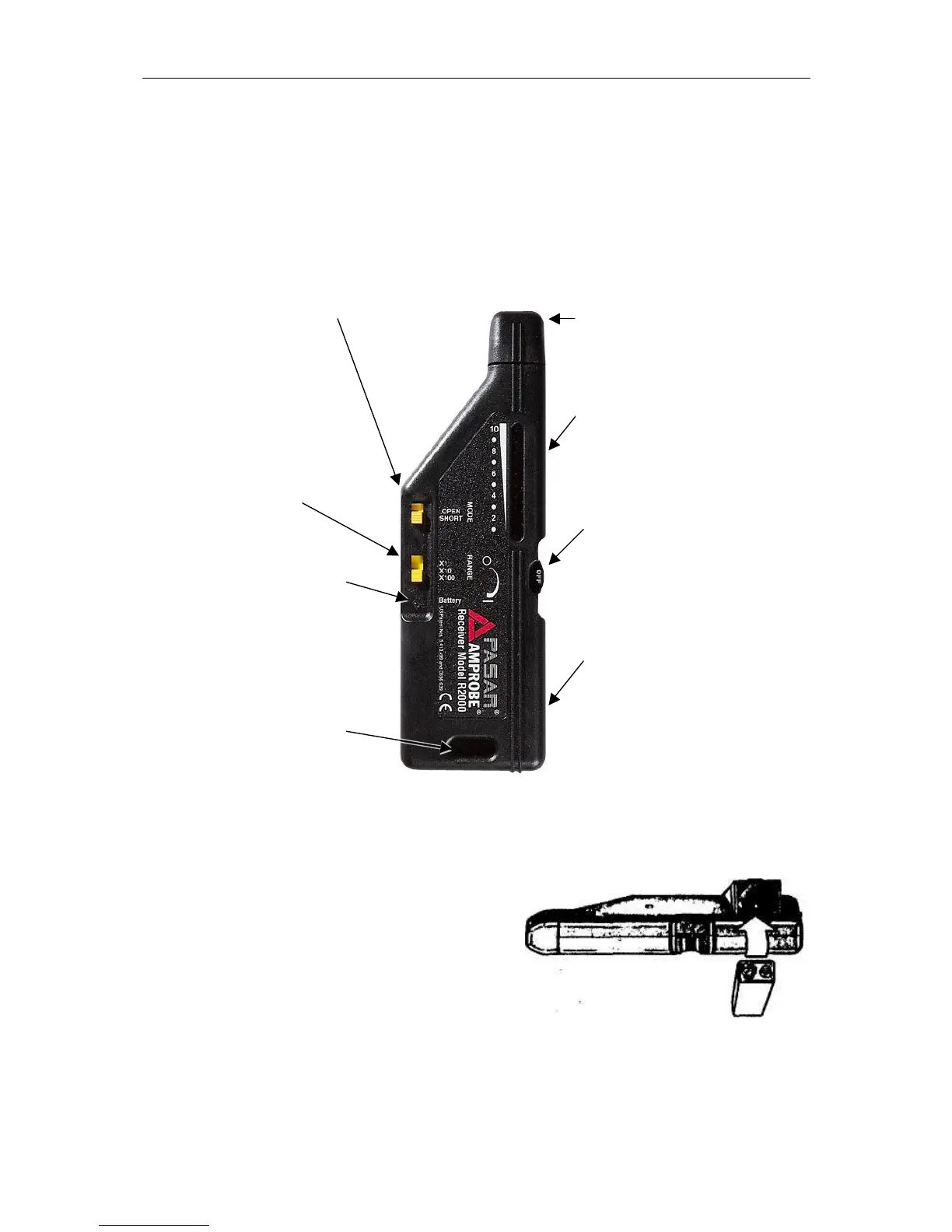

Fig.1
Changing Batteries
The battery compartment on the back of
the R2000 and the T2200 is a new
design that allows you to drop the
battery in and out quickly and easily.
Two holes on the bottom of the
compartment accept the round terminals
of a 9 volt battery. The compartment is
designed to accept the battery 180° and
try again.
Mode Adjustment
Switch
'OPEN' mode is used
for open conductors.
'SHORT' mode is used
on conductors that
make up a complete
circuit.
Range Switch
Coarse sensitivity
adjustment
Battery light
Will illuminate when unit
is turned 'on' provided
the battery is in place
and charged
Lanyard Attachment Hole
attach a wrist strap to
prevent accidental dropping
Electromagnetic and
Electrostatic detectors
located In tip
Sensitivity
Adjustment/ON-OFF
thumbwheel
On -Off switch combined
with fine adjustment of
sensitivity
Battery Compartment
Drop-ln-And-Close design
automatically connects
battery with the contacts.
Battery must be oriented
properly to allow it to close
Signal Strength Indicator
10 LED's positioned behind
a red filter lens to allow
readability in direct sunlight
Fig.2
