Amprobe Europe GmbH AT-2000
- 10 -

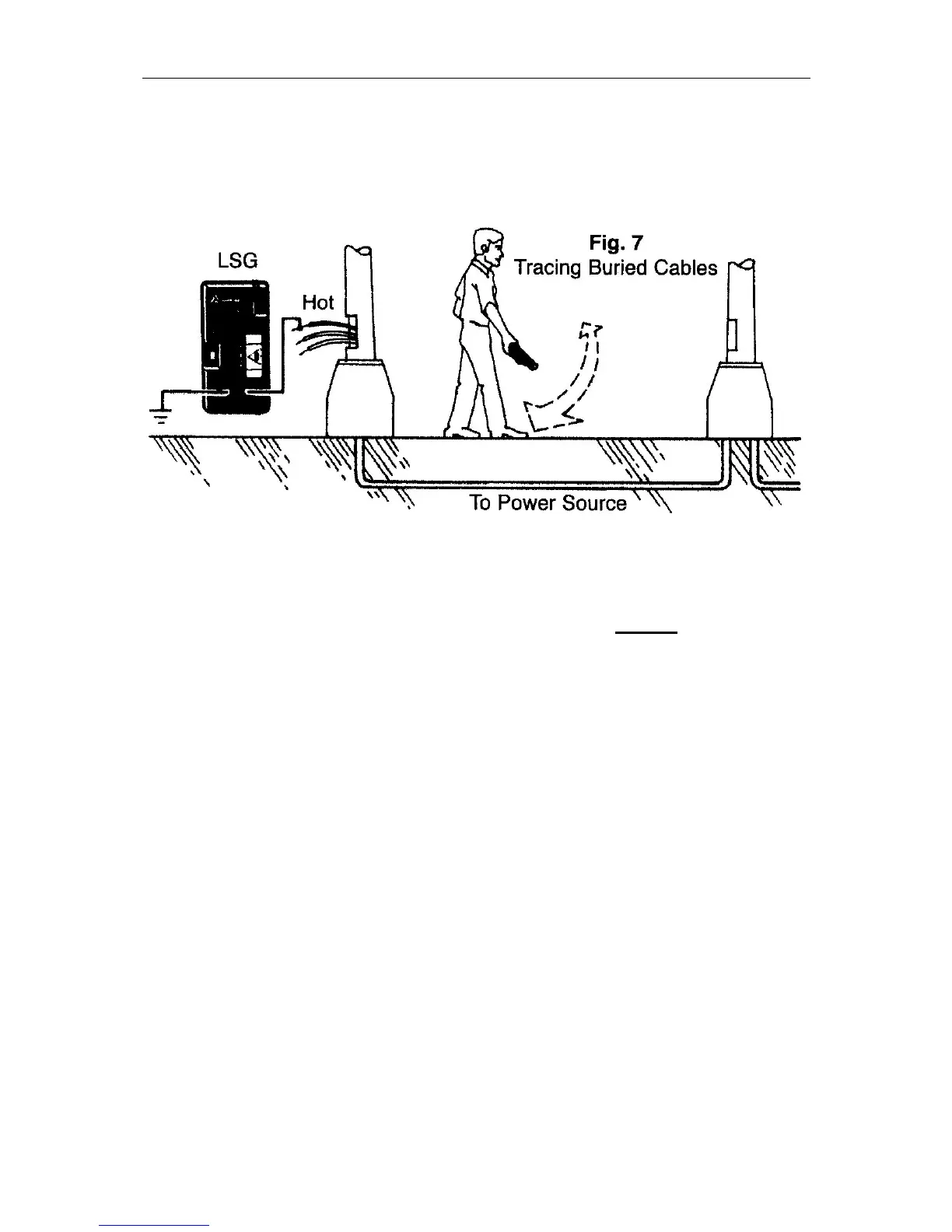

Easy tracing of wires and buried cable is accomplished by simply
separating wire from the return path (ground). Instead of using the
neutral wire or the conduit as the ground, use the EU-200 Alligator clip
cordset and attach one clip to separate ground such as a water pipe or a
ground rod. A blinking light indicates a completed, functioning circuit.
Using the S2300 and S2600 Load Signal Generators (LSG's)
1. Make sure the voltage does not exceed the rating of the LSG.
2. Always connect the banana plugs to the LSG before connecting
to the circuit. Use the cordset (EU-200) when the task is to identify
which 220V breakers control certain receptacles. Use the alligator clip
for all other applications.
3. Set power switch to 'High' when not tracing GFCI-protected circuits.
4. Light will blink if circuit is complete and energized.
