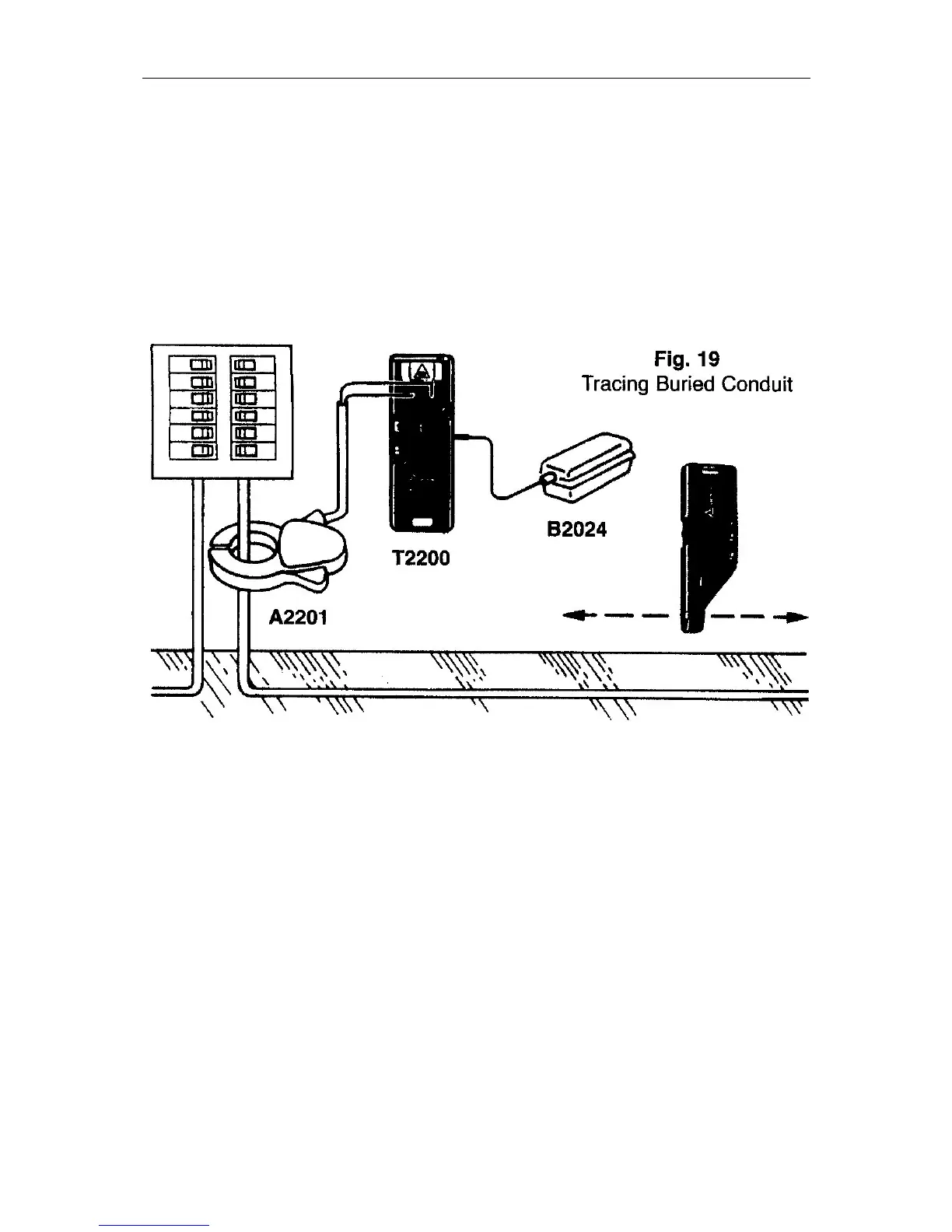

Locating Buried Conduit or Metal Pipe
1. Connect the A2201 Clamp to the T2200 transmitter and then clamp it
around the conduit or pipe.
2. Use the B2024 battery or the BV2025 Converter is recommended.
Plug either one into the jack on the side of the T2200.
3. Set the T2200 to 'higher' mode.
4. Set the R2000 to 'short' mode, x 10 range and turn thumb wheel to 5'.
5. Trace the conduit (see page 7 for technique).
