Parking Brake
Parking brake is used to help transition rider on/off
the tryke safely and easily. To install it:
1. Remove the two Allen bolts from the brake’s
extension tube.
2. Place the extension tube over the right rear axle
so that the handle is pointing toward the front of
tryke.
3. Install the two Allen bolts up through the
attached fender bracket on the axle and turn
them clockwise into the extension tube.
4. Tighten the two Allen head screws from the bottom.
Handlebar
Handlebar is installed by first placing the handlebar stem into the front fork
steering tube.

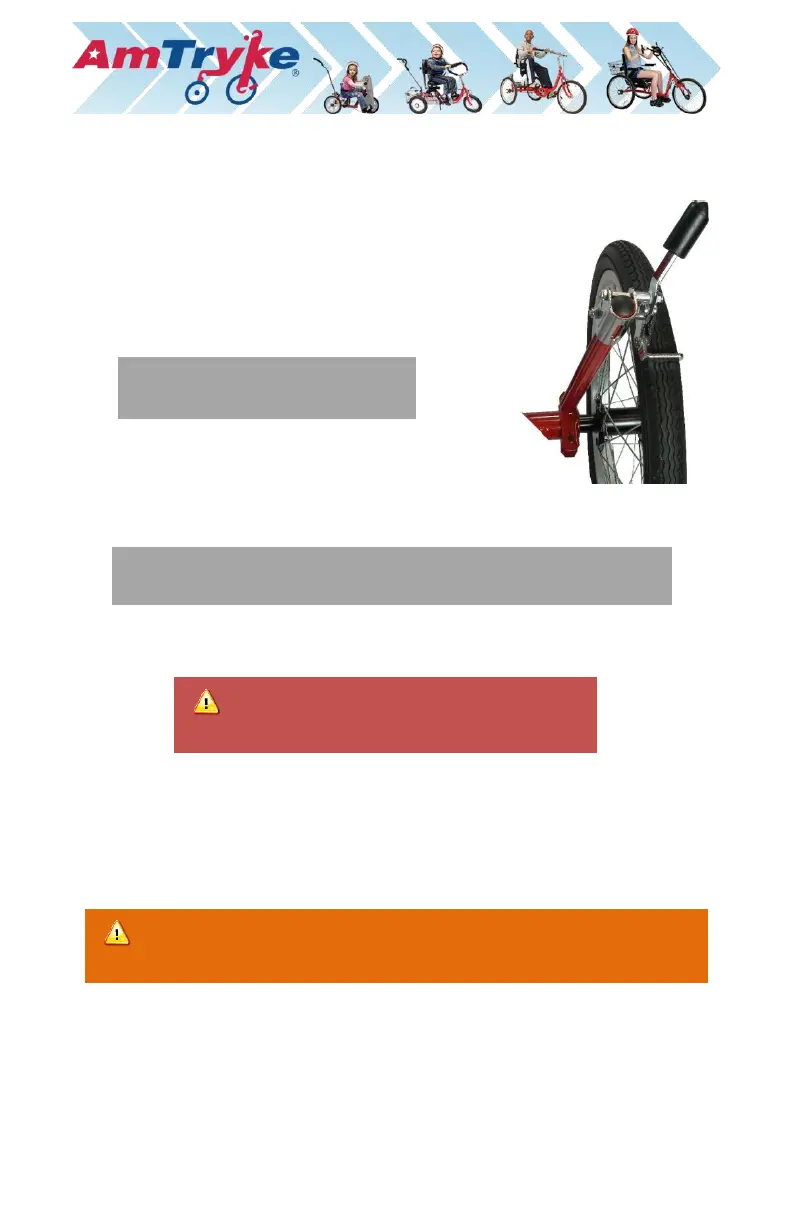

Parking brake (picture from
rear of tryke)
NOTE: The tube angles slightly outward to position the brake over the
tire. Be sure the foot of the bracket is fully on top of the red axle tube.
WARNING: DO NOT USE PARKING BRAKE FOR
BRAKING. DOING SO MAY CAUSE SERIOUS INJURY.
NOTE: Make sure the handle is in
the down position and over the tire.
CAUTION: PAY CLOSE ATTENTION TO MAXIMUM HEIGHT LINE. HASH
MARKS SHOULD BE COMPLETELY INSIDE FRONT FORK TUBE.
Allen
bolt
