Brake Caliper

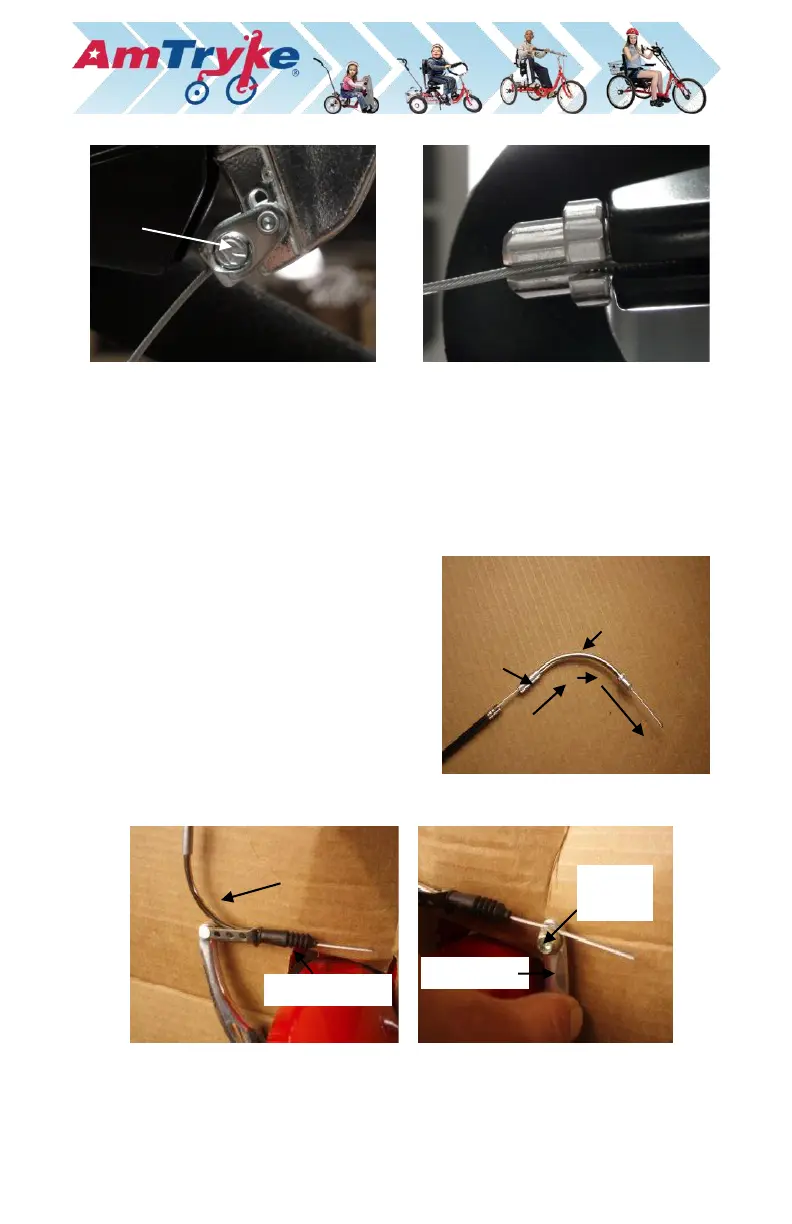

To install the cable to the brake caliper, follow these instructions:
1. Thread the cable through the large end
of the cable noodle.
2. Slide the cable noodle through the slot
in the caliper control arm.
3. Slide the rubber boot over the cable
and onto the cable noodle.
4. Use a 5 mm Allen wrench to loosen the
anchor bolt on the caliper arm and put
the cable between the thick washer
and caliper arm.
Step 4: Slide the cable through the slots of
the ferrule and locking nut, then turn the
locking nut and ferrule 180 degrees from
each other.
