36
VIDEO OUT
VIDEO
S-VIDEO
OPTICAL
OUT
DIG ITA
L
T
U
N
E
R
FM
75
AM
VIDEO
L
R
+
-
+
-
SPEAKER
Customer Service 1 626 968 6860

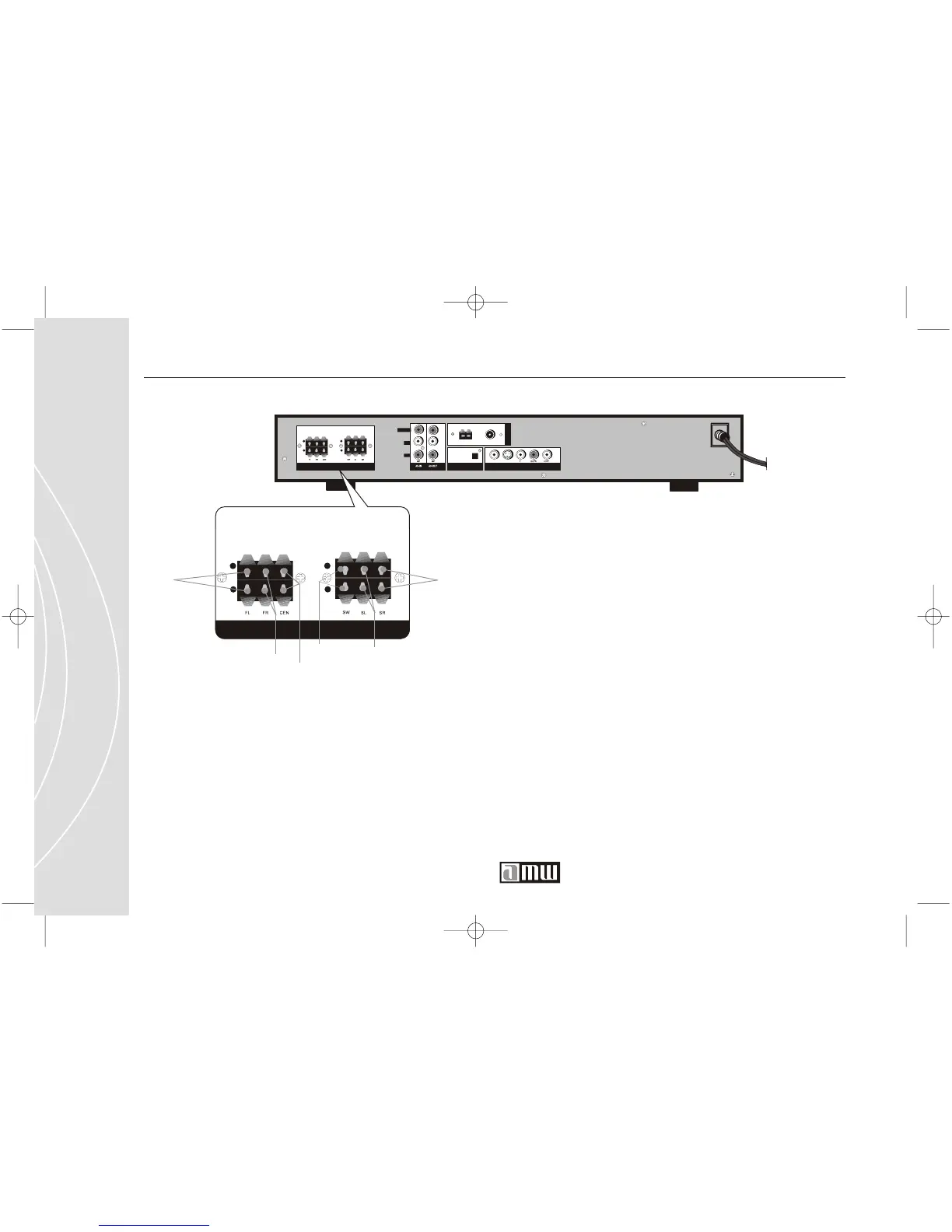

Connect the Home Theater speakers with the proper gauge of wire, cut to be
as short as possible. Press the speaker wire terminal tabs down, then insert
the bare wires and secure them by releasing the tabs. If these connections
are faulty, no sound will be heard from the speakers. Make sure that the
polarity of the speaker wires is correct, that is, that the + and - markings are
obsered. If these wires are released, the sound will be unnatural and will
lack bass. Do not coil up excess speaker wire or bundle the speaker cables
with the power cords.
SPEAKER
+
-
+
-
LEFT
FRONT
SPEAKER
RIGHT
FRONT
SPEAKER
CENTER
SPEAKER
SUBWOOFER
LEFT
SURROUND
RIGHT
SURROUND
To Next Page
