Installing Tabletop (MXT) Panels

Modero S Series Touch Panels - Installation & Hardware Reference Manual

Installing Tabletop (MXT) Panels

MST-1001/701/431

Detailed specifications drawings for the MST-1001 are available to download from www.amx.com.

Detailed specifications drawings for the MST-701 are available to download from www.amx.com.

Detailed specifications drawings for the MST-431 are available to download from www.amx.com.

Connector Locations

USB peripherals (mouse, keyboard, etc.) may be connected to the USB port on the rear of the device. Updates to the device’s

firmware can also made via the USB port.

Note that FIG. 12 shows a MST-1001, but the connector locations are similar for all MST panels:

Power via Power Over Ethernet

Power for the MST-1001 is supplied via Power Over Ethernet (PoE), utilizing an AMX-certified, capacitive touch-compliant PoE

injector such as the PS-POE-AT-TC High Power PoE Injector (FG423-83) or other approved AMX PoE power source.

The incoming Ethernet cable should be connected to the RJ45 port on the panel.

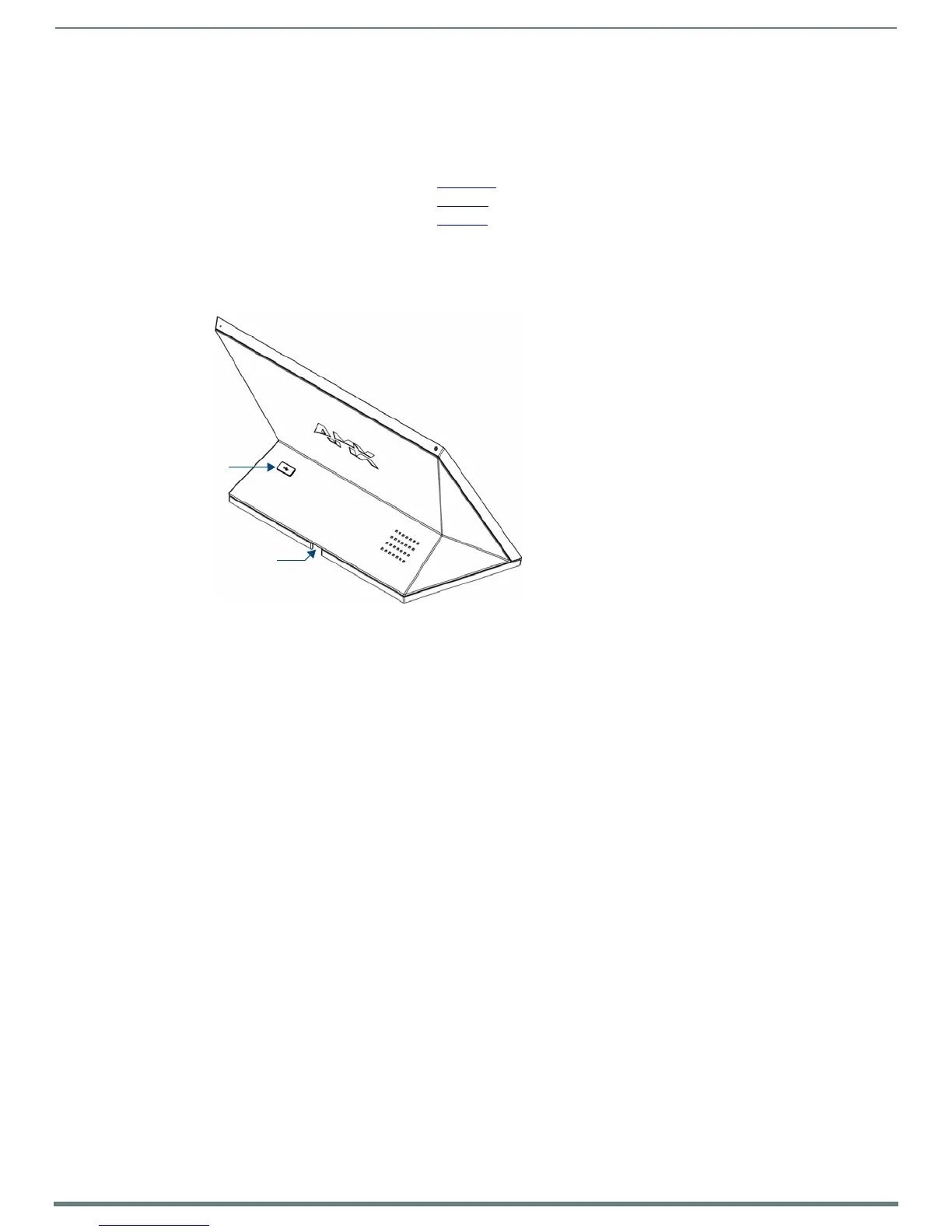

FIG. 12

MST-1001 Connector Location

USB Port

RJ-45 Port

Other manuals for AMX MST-1001

Questions and Answers:

Need help?

Do you have a question about the AMX MST-1001 and is the answer not in the manual?

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W
