Installing Wall-Mount (MXD) Panels

Modero S Series Touch Panels - Installation & Hardware Reference Manual

Removing the MSD-1001-L from the Backbox

The clips on the bottom edge of the Backbox lock down the MSD-1001-L and must be unlatched in order to remove the touch panel

from the Backbox. To do this, you ll need a thin probe such as an straightened paper clip:

1. With a straightened paper-clip, carefully press straight into the access holes indicated in FIG. 26, to disconnect the two bottom

latches.

2. Grasp the bottom of the panel and gently pull outward until the bottom edge of the panel is free of the Backbox. Use your

other hand to stabilize the front of the touch panel. Always pull on the panel’s plastic bezel - NEVER pull on the glass edge

(FIG. 27):

3. With the bottom edge of the panel free, carefully lift up and out to release the tabs on the top edge of the panel.

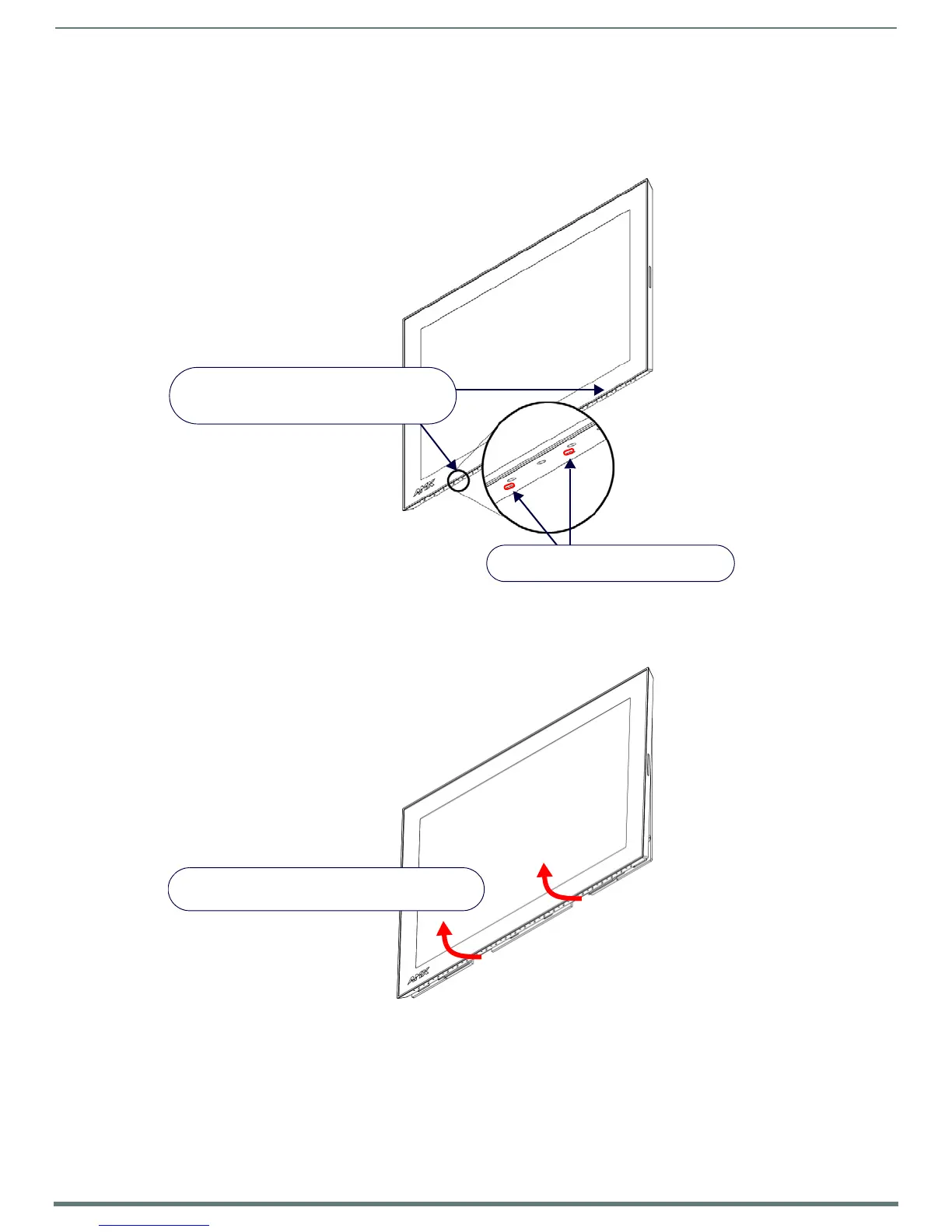

FIG. 26

MSD-1001-L/BACKBOX ASSEMBLY

FIG. 27 MSD-1001-L/BACKBOX ASSEMBLY (RELEASING THE BOTTOM EDGE OF THE PANEL)

Gently press up through these holes with a thin

probe such as a straightened paper clip to

release the panel from the tabs in the Backbox

Insert probe through either hole to push

the tab in and away from the panel

Lift the bottom edge of the panel by the plastic bezel

and gently rotate up and away from the Backbox

Note: To avoid damaging the

panel, always pull on the plastic

bezel - do not pull on the glass.

Note: Hold the panel to prevent it from

falling once the bottom edge is free
