Installing Wall-Mount (MXD) Panels

Modero S Series Touch Panels - Installation & Hardware Reference Manual

NOTE: For typical mounting surfaces, such as drywall, use the locking tabs as the primary method for securing the Backbox to the

surface. For thin walls or solid surfaces, use mounting screws (not included).

STEP 1: Install the Plastic Backbox

Use the included Installation Template to determine the placement of the Backbox in the mounting surface. The outside edges of

the template are the same dimensions as the touch panel, which allows you to troubleshoot possible conflicts with wall edges,

doors, and other potential obstacles.

NOTE: Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.

MXD-1001-L - Template, Backbox, 10.1" Touch Panel, Modero S Series (68-2265-03)

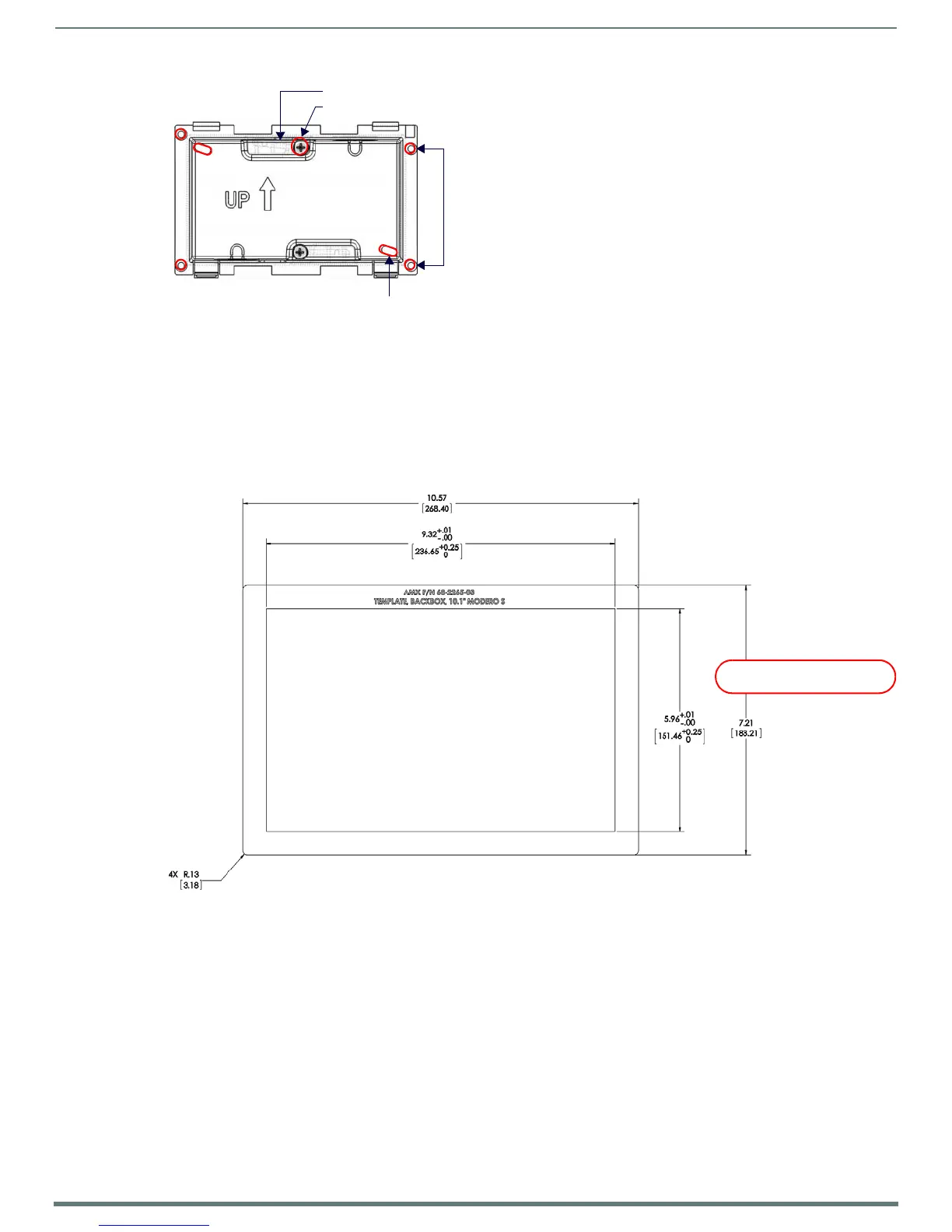

FIG. 17

4" MODERO S Backbox (Front View)

FIG. 18 S Series Installation Templates

Locking Tab (X2)

Locking Tab screw (x2)

Mounting holes (X4) for use with

Use these mounting holes to install

mounting screws (not included)

the Backbox into thin walls (less

than 0.5” thick) or solid surfaces

Mounting holes (X2) for installing the Backbox into a Rough-In Box (screws not included)

FOR REFERENCE ONLY
