Modero S Series G4 Touch Panels

Modero S Series Touch Panels - Installation & Hardware Reference Manual

Modero S Series G4 Touch Panels

Overview

The Modero S Series is a beautiful touch panel family sophisticated enough for room control yet priced right for the most cost

sensitive installations. The Modero S Series panels include VoIP, brilliant 24-bit color depth, PoE connectivity, USB and streaming

video.

The Modero S-Series G4 Touch Panels covered in this manual include:

Multi-Functional Sleep Button

S Series touch panels are operated using an integral touchscreen, as well as the multi-functional Sleep button. This button

provides a method to place the panel in sleep mode as well as to power-down and power-up the panel and to access the Setup

pages. The Sleep button is located on the top left edge of the frame when facing the panel (see FIG. 2).

The Sleep Button’s Functions are described below:

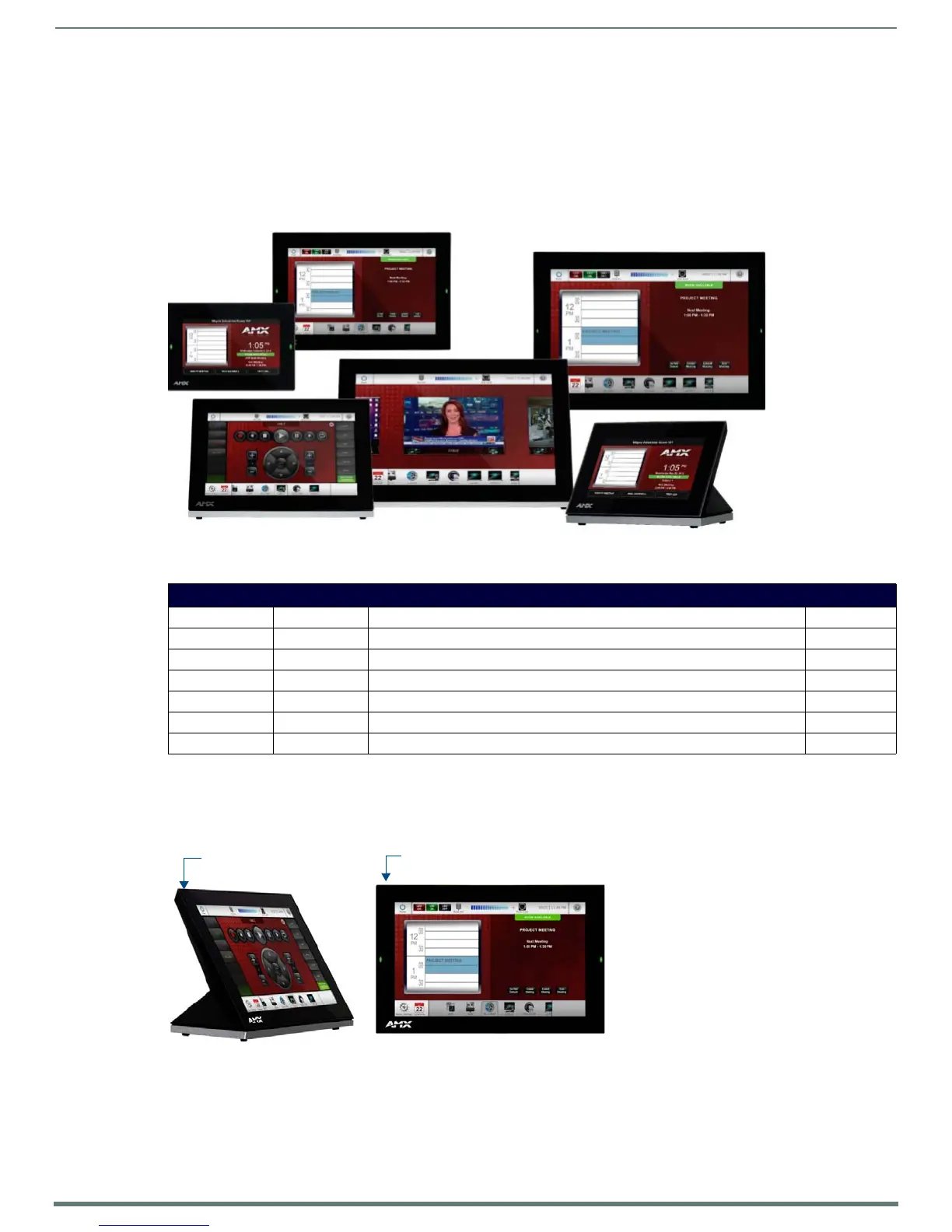

FIG. 1

Modero S Series Touch Panels

Modero S-Series G4 Touch Panels

Name FG# Description Page Ref

MST-1001 FG2265-05 10.1" Modero S Series Tabletop Touch Panel page 10

MSD-1001-L FG2265-01 10.1" Modero S Series Landscape Wall Mount Touch Panel page 12

MST-701 FG2265-06 7" Modero S Series Tabletop Touch Panel page 14

MSD-701-L FG2265-02 7" Modero S Series Landscape Wall Mount Touch Panel page 16

MST-431 FG2265-07 4.3" Modero S Series Tabletop Touch Panel page 18

MSD-431-L FG2265-03 4.3" Modero S Series Landscape Wall Mount Touch Panel page 20

FIG. 2 Sleep Button location - Tabletop and Wall Mount

Sleep button

(on top panel)

Other manuals for AMX MST-1001

Questions and Answers:

Need help?

Do you have a question about the AMX MST-1001 and is the answer not in the manual?

General

Aspect ratio	16:9
Screen shape	Flat
Display diagonal	10 \
Touchscreen type	Tabletop
Display brightness	350 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Touchscreen technology	Resistive
Viewable size diagonal	256 mm
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Product color	Black
Ethernet LAN (RJ-45) ports	1
Display viewable area (HxV)	136 x 217 mm
Power supply type	DC
Power consumption (standby)	4.5 W
Power consumption (typical)	7.5 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Wall mountable	No
HDMI ports quantity	0
Graphics card	AMX G4
Internal memory	512 MB
Internal memory type	DDR
RMS rated power	1.5 W
