AMX NXA-WAP1000

NXA-WAPZD1000 Installation
6
NXA-WAP1000 Smart Wireless Access Point
Care should be taken to consider vertical placement as well as horizontal placement to maximize coverage
(FIG. 2).

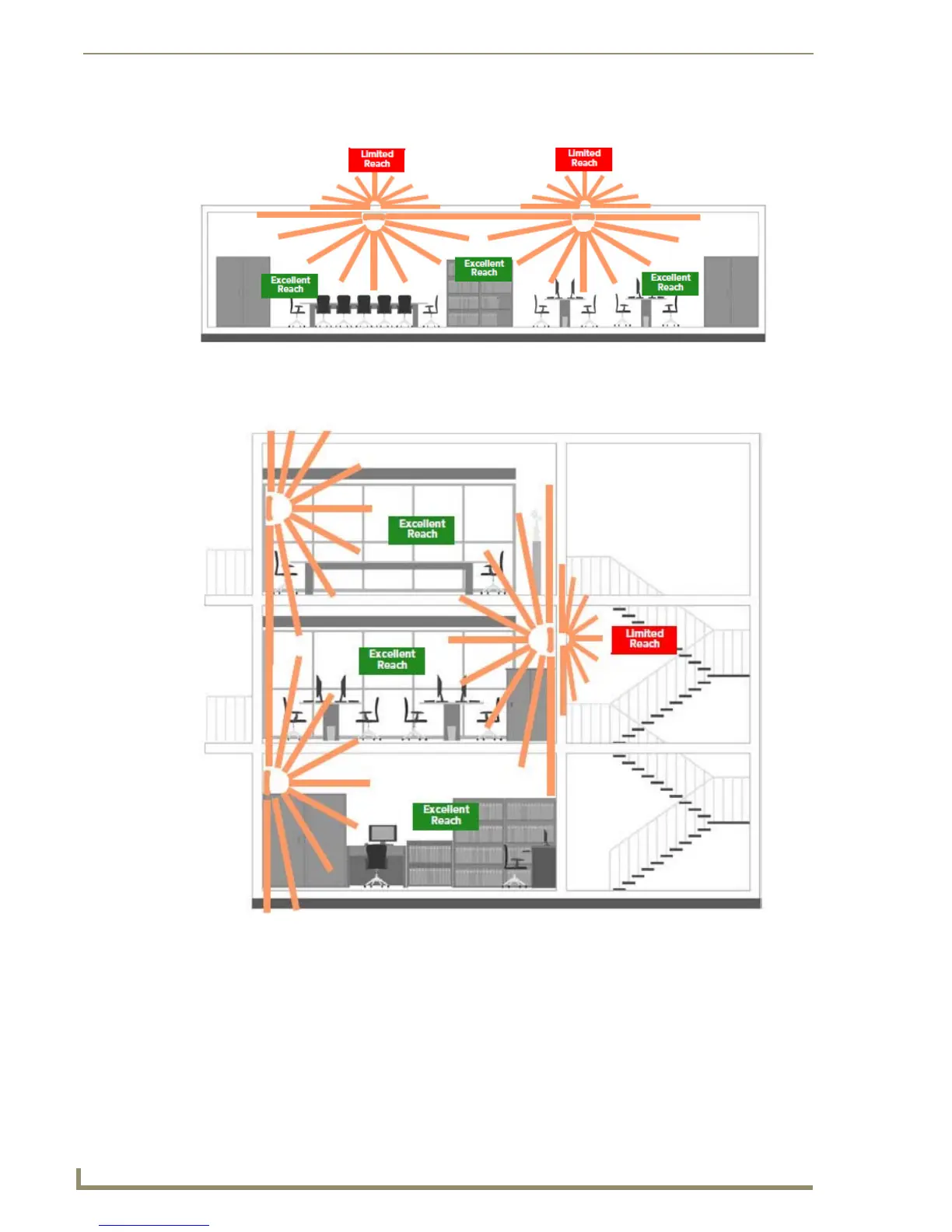

FIG. 1 Recommended ceiling mounting installation
FIG. 2 Recommended wall mounting installation
