Browser-Based Configuration Pages
41
NXA-WAP1000 Smart Wireless Access Point
Rate Limiting
Rate Limiting allows you to cap the data transfer rates per client for a specific WLAN.
To enable per station rate limits:
1. Go to Configuration > 2.4G or Configuration > 5G.
2. Select the WLAN that you want to configure from the tabs at the top of the page.
3. Click the Edit Settings button next to Rate Limiting.
4. The Rate Limiting page appears (FIG. 25).
5. Set the maximum Downlink and Uplink rate per station, or leave disabled if you do not want to limit
traffic rate per station in that direction.
6. The table below updates to show the maximum transfer rates for each traffic type.
7. Click Update Settings to save your changes.

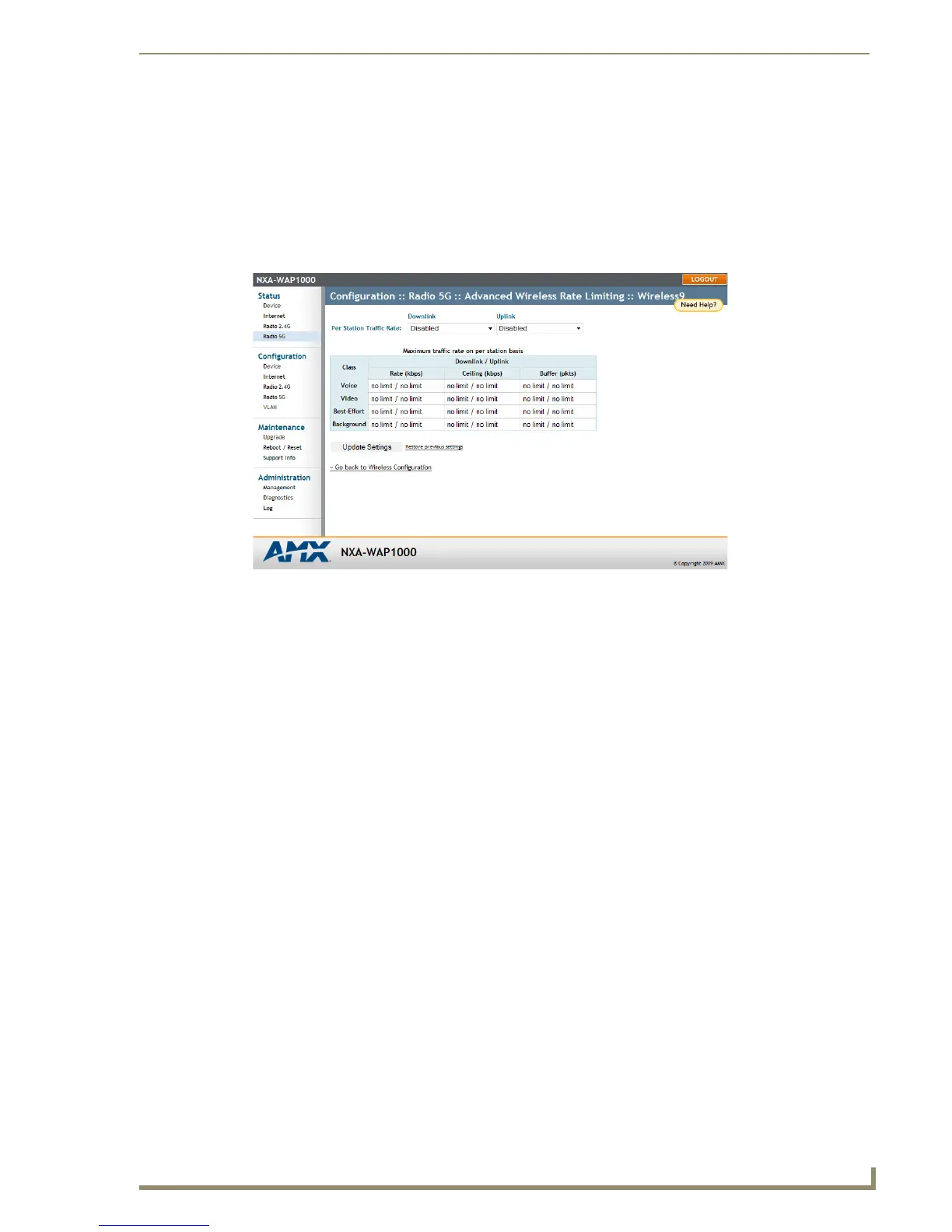

FIG. 25 Rate Limiting
