Long press key for 5 seconds ODO clear.
P14 is the controller current limit setting option, the instrument controller current limit
adjustable range is: 1~20A. default 12A.
15.Tobedeveloped To Be Developed
16.Single Zero Setting
1.Standard Connector Wiring Sequence
14.Controller Current Limit Value Setting

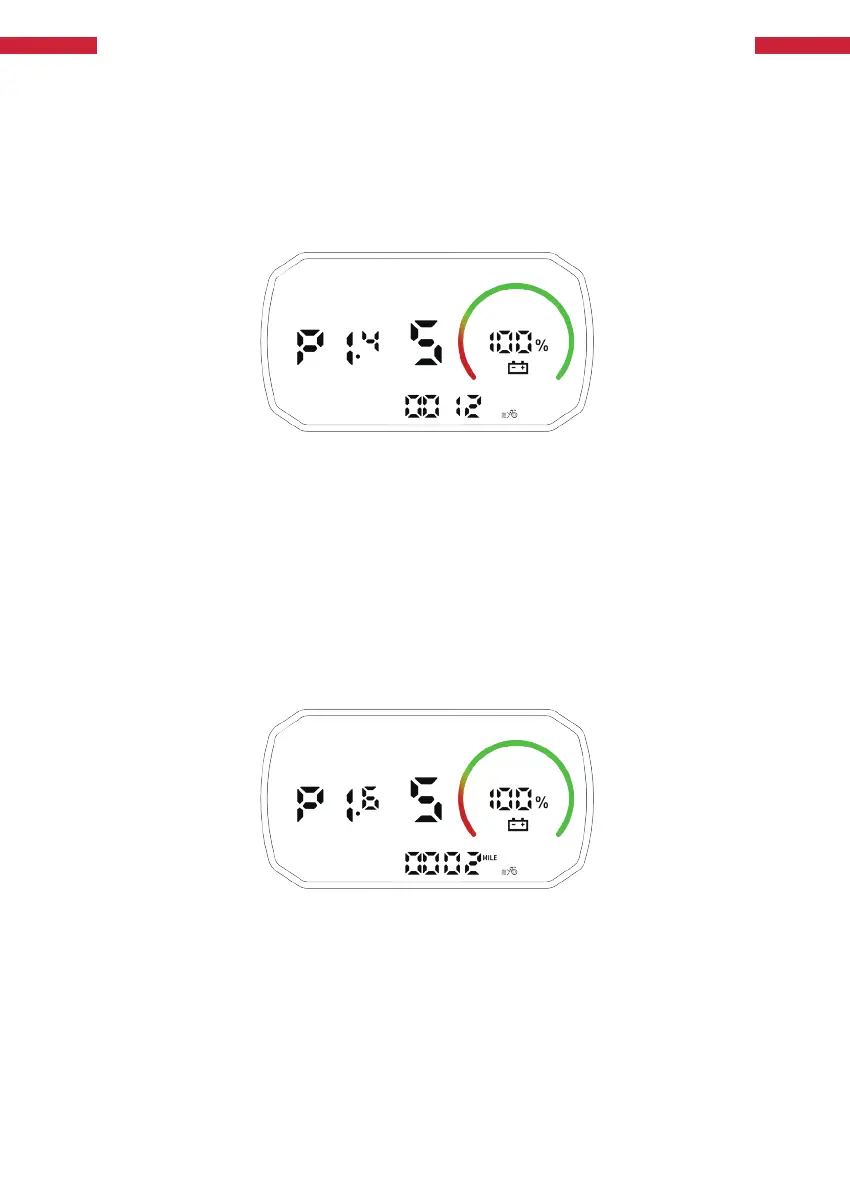

Figure 14 Controller current limit setting interface
Figure 16 Single Zero Setting setting interface
+
