AMYET S6 E-BIKE
18

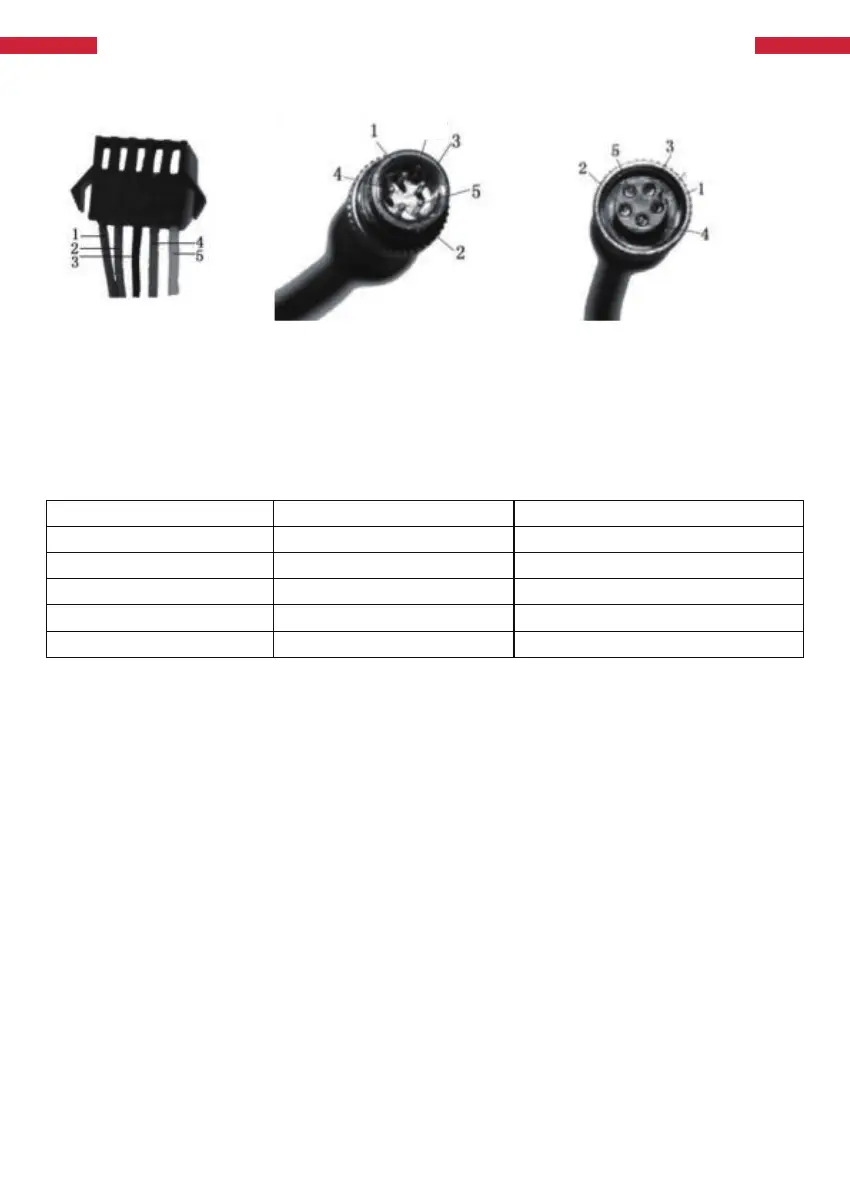

Controllers Meter (female) Meter (male)
Convex State
Groove State
Figure 1 Standard Connector Wire Sequence Table
1.Standard Connector Wiring Sequence
Some models are equipped with waterproof connectors and it is not possible to see the
colour of the internal wires.
SETTINGS
Standard Wiring Sequence
1
2
3
4
5
Red (VCC)
Blue (Kp)
Black (GND)
Green (RX)
Yellow (TX)
Instrument Power Cord
Controller Power Cord
Instrument ground
Data receiving line of the instrument
Instrument data transmission line
Standard Cable Colours Functionality
P01: Backlight brightness, level 1 is the darkest and level 3 is the brightest;
P02: Mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, default 36V;
P04: Sleep time: 0, no sleep; Other numbers refer to sleep time, ranging from 1 to 60; Unit
minute;
P05: Power assisted gear: 0, 3rd gear mode: 1st gear 2V, 2nd gear, 3V, 3rd gear, 4V;1st and
5th gear modes: 1st gear 2V, 2nd gear 2.5V, 3rd gear 3V,4th gear, 3.5V, 5th gear, 4V;
P06: Wheel diameter: unit, inch; Accuracy: 0.1;
