8. Use the Stream Config tab (right-click on Target Processor → Device Properties → Stream Config) to define audio
streams across the nodes. (See the Stream Configuration figure). The stream assignments configure the up-
stream and downstream slot settings across the nodes.

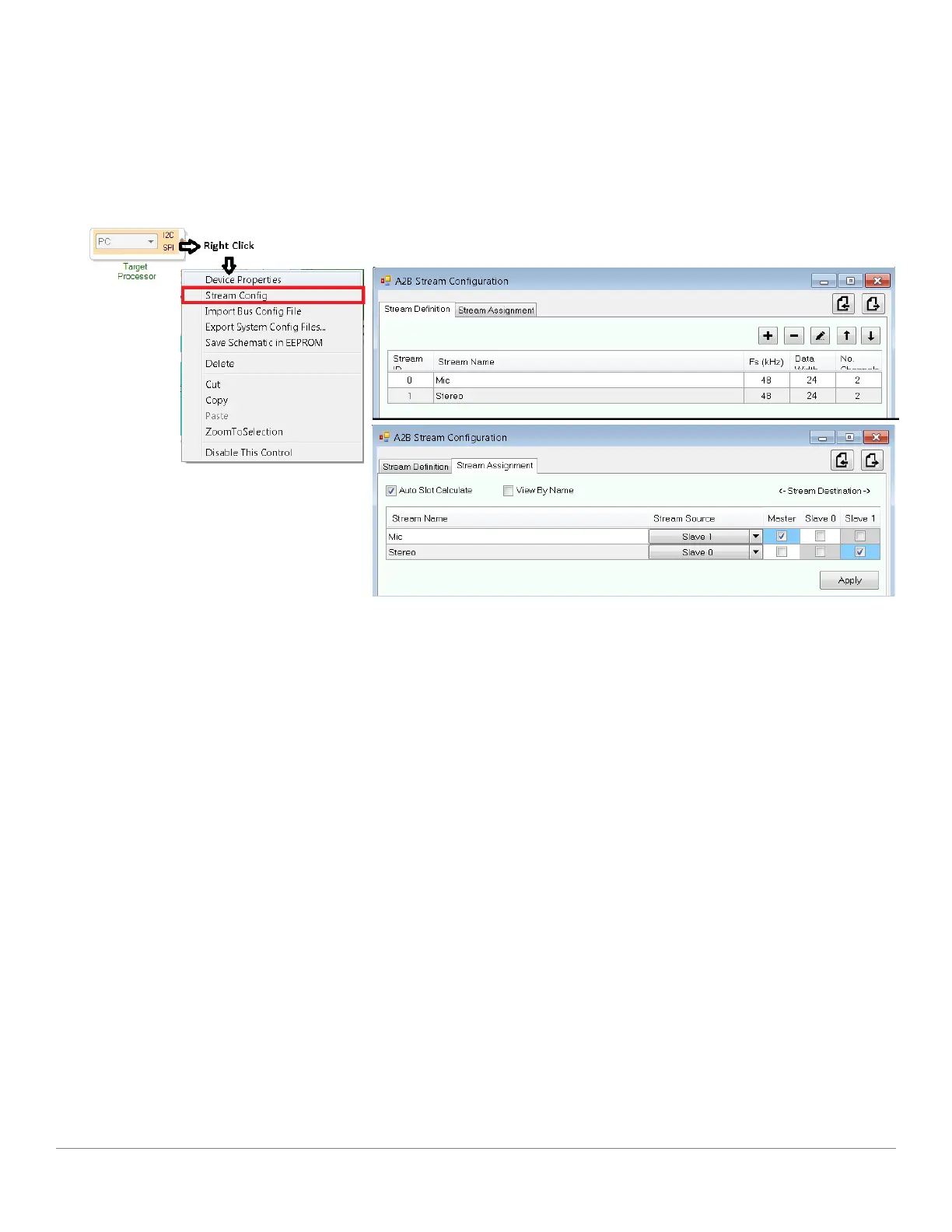

Figure 2-5: Stream Configuration
