UG-1829 EVAL-AD9081/EVAL-AD9082/EVAL-AD9986/EVAL-AD9988 User Guide
Rev. 0 | Page 8 of 26
Chip View
Double-clicking the AD9081, AD9082, AD9986, or AD9988
icon in the board view opens the chip view. The chip view enables
the user to customize the AD9081, AD9082, AD9986, or
AD9988 beyond the functions available in the board view. Use
the QUICK CONFIGURATION pane in the chip view if using
a direct external clock. Figure 14 shows the details of the chip
view for the AD9082 as an example.
OPTIONS TO CONFIGURE
DATAPATH
QUICK CONFIGURATION
FOR NCO FREQUENCIES
PULL-DOWN MENU
CLOCK OPTIONS
ACCESS TO
MEMORY MAP AND
ANALYSIS WINDOW
CHIP VIEW TAB
24165-010

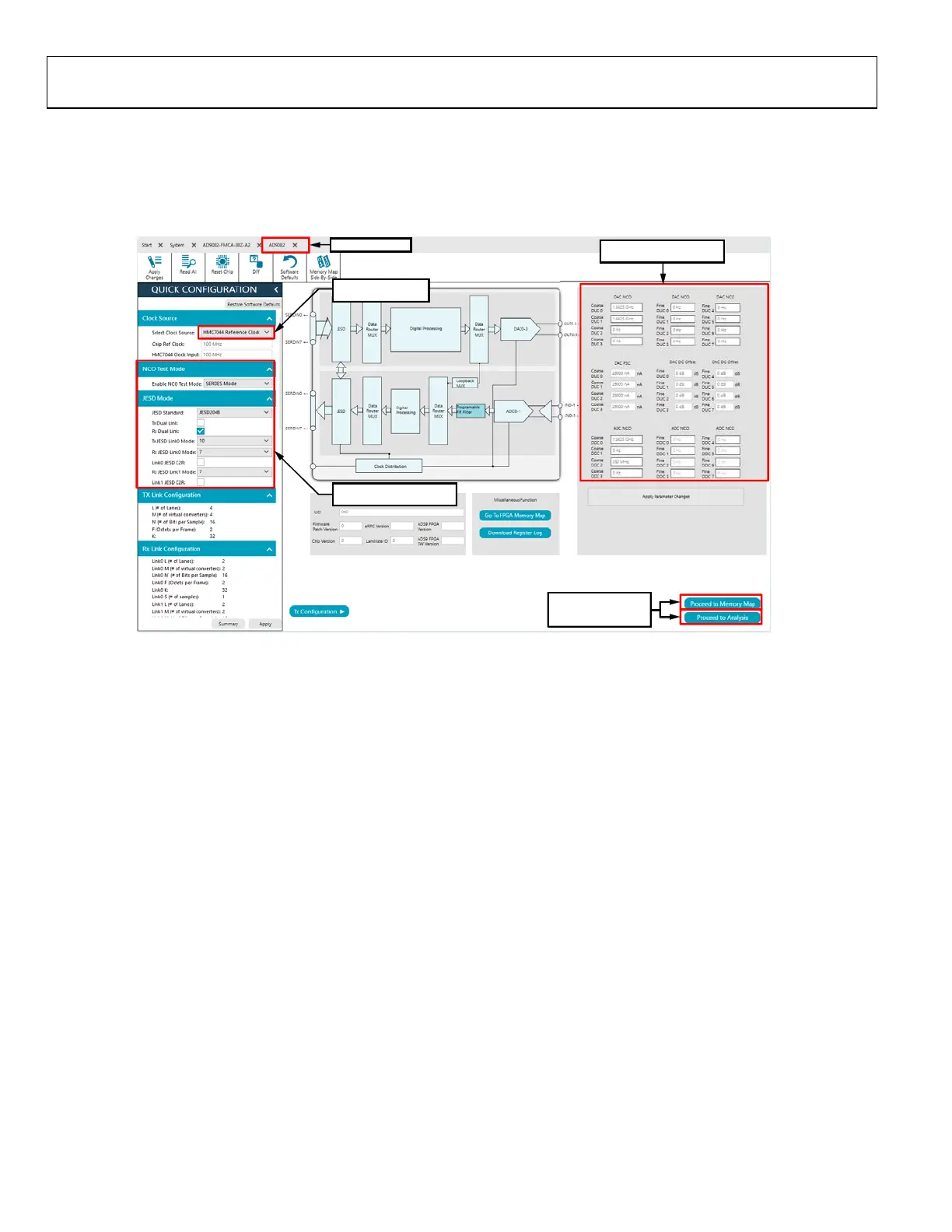

Figure 14. AD9082 Chip View Tab Detail
