Analog Devices SigmaDSP ADAU1463

EVAL-ADAU1467Z UG-1134
Rev. A (Draft) | Page 27 of 55

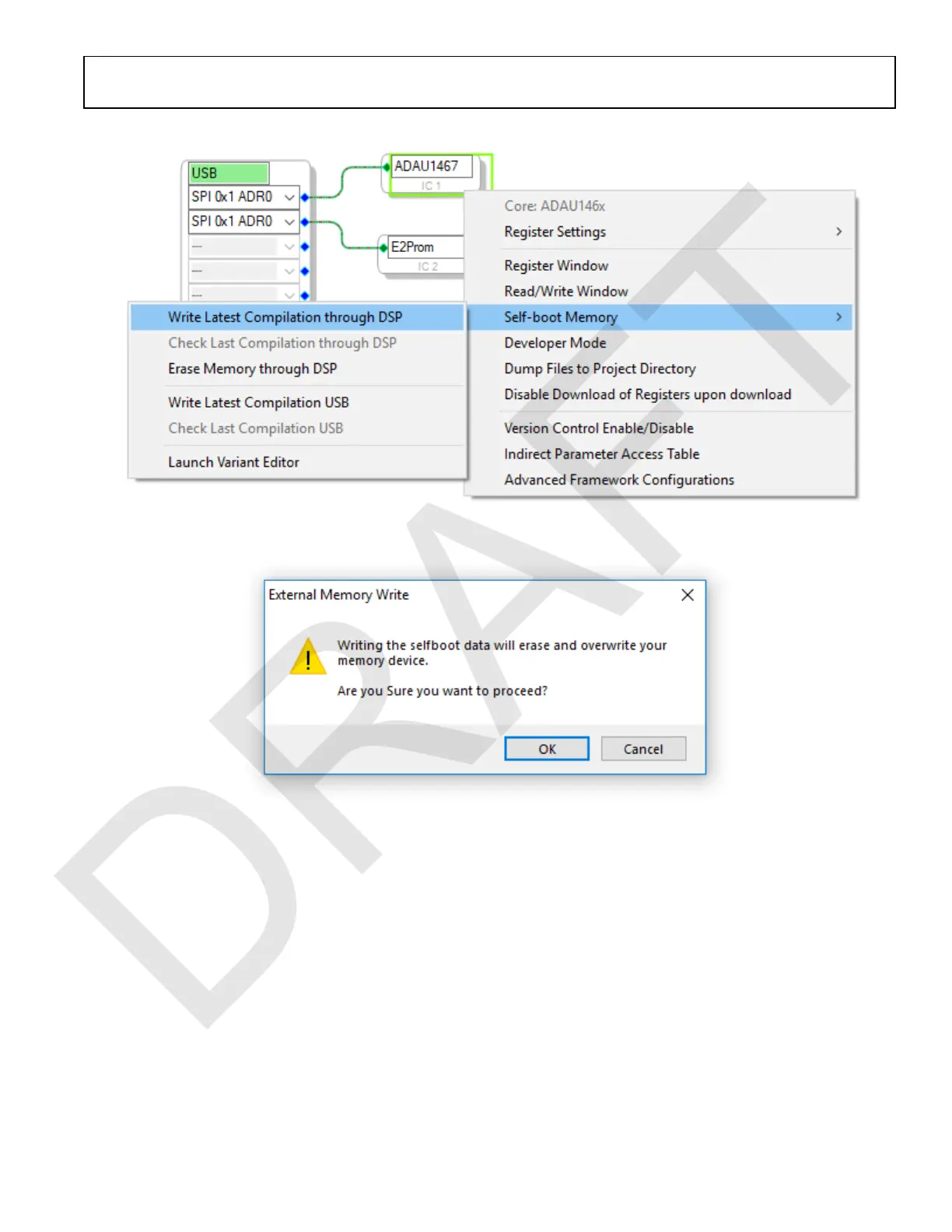

Figure 79. Writing to the EEPROM Through the ADAU1467 Master SPI Port
Figure 80. External Memory Erase and Overwrite Warning Window
7. An EEPROM Properties dialog box appears. Enter the
appropriate values into the text fields as shown in Figure 81,
then click OK.
