Service, maintenance, lamp replacement
SPECORD PLUS Edition 03/2013 39
The SPECORD PLUS can now be switched back on.

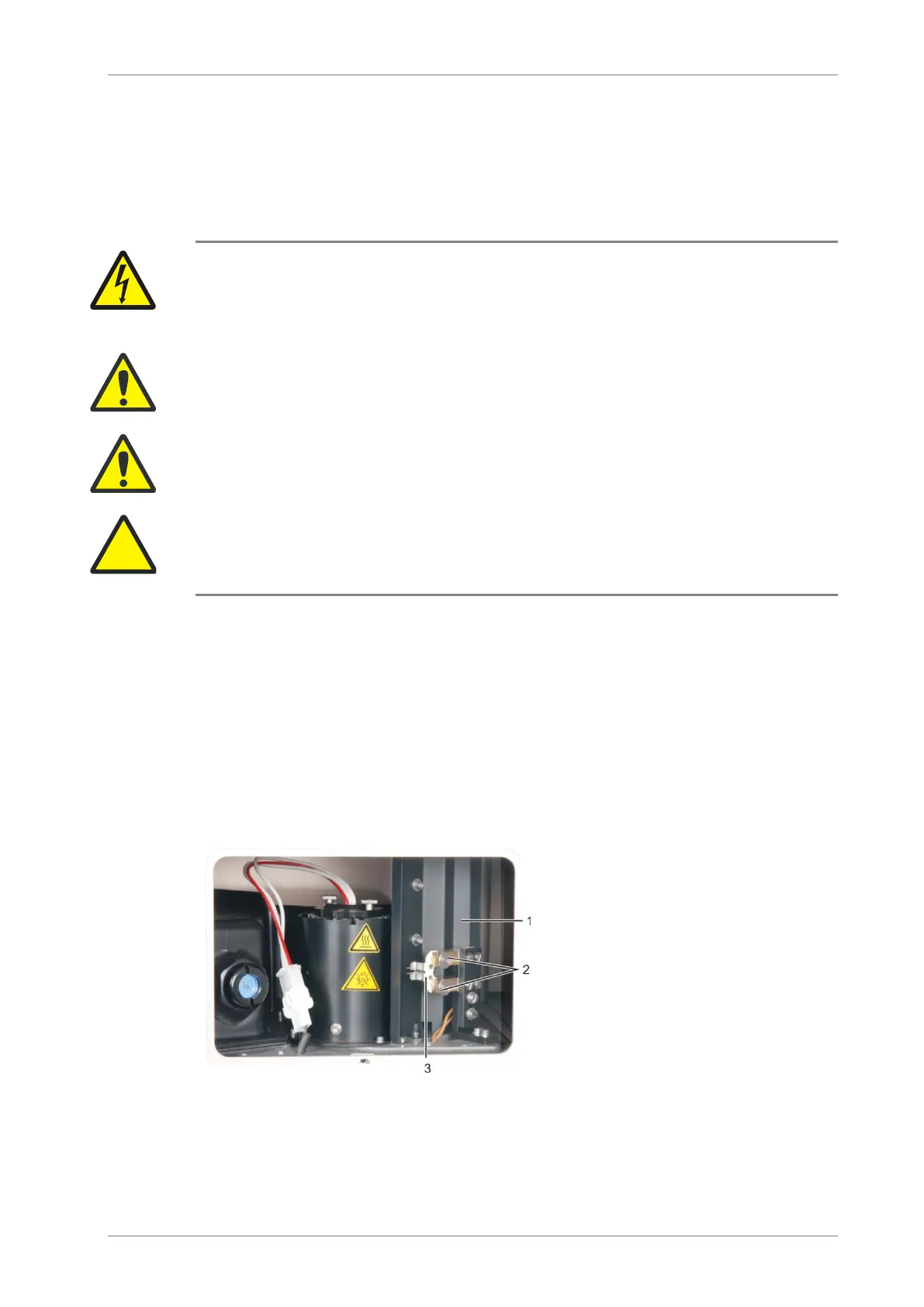

Halogen lamp replacement
WARNING! Electric shock!
Before replacing the halogen lamp switch off the mains switch and disconnect the mains
cable from the SPECORD PLUS connection.
CAUTION! Risk of burns!
Allow the halogen lamp to cool down. There is a risk of burning!
CAUTION! Lamp emits radiation!
Do not look into the illuminated lamp! The radiation can damage your eyes!
ATTENTION! Contamination of the lamp!
Do not touch the glass body of the new lamp. There is a risk of contamination of the lamp
body!
1. Switch off the SPECORD PLUS.
2. Disconnect the mains cable from the device connection and turn the SPECORD PLUS
around until the rear of the device points forward.
3. Wait 30 minutes for the lamps to cool down. Otherwise there is a risk of burning from
the hot lamps or their covers.
4. Undo the knurled head screw of the service flap on the rear of the SPECORD PLUS
and remove the service flap.
5. Unscrew the front halogen lamp cover (5 in Fig. 21).
1 Rear halogen lamp cover
2 Knurled head screws for mounting the halogen lamp
3 Halogen lamp with socket
Fig. 23 Halogen lamp replacement
6. Undo the attachment screws (2 in Fig. 23).
