15
4 Moving the Bale Wrapper
Short Distances
Your bale wrapper can be moved very short distances using its own traction. Start the engine
and use the control levers (Figure 4.1). (There are 4 ways to start the HONDA engine: manual
ignition, electronic ignition with key, electronic ignition with remote control, and electronic
ignition using the same remote control as for remote steering.)

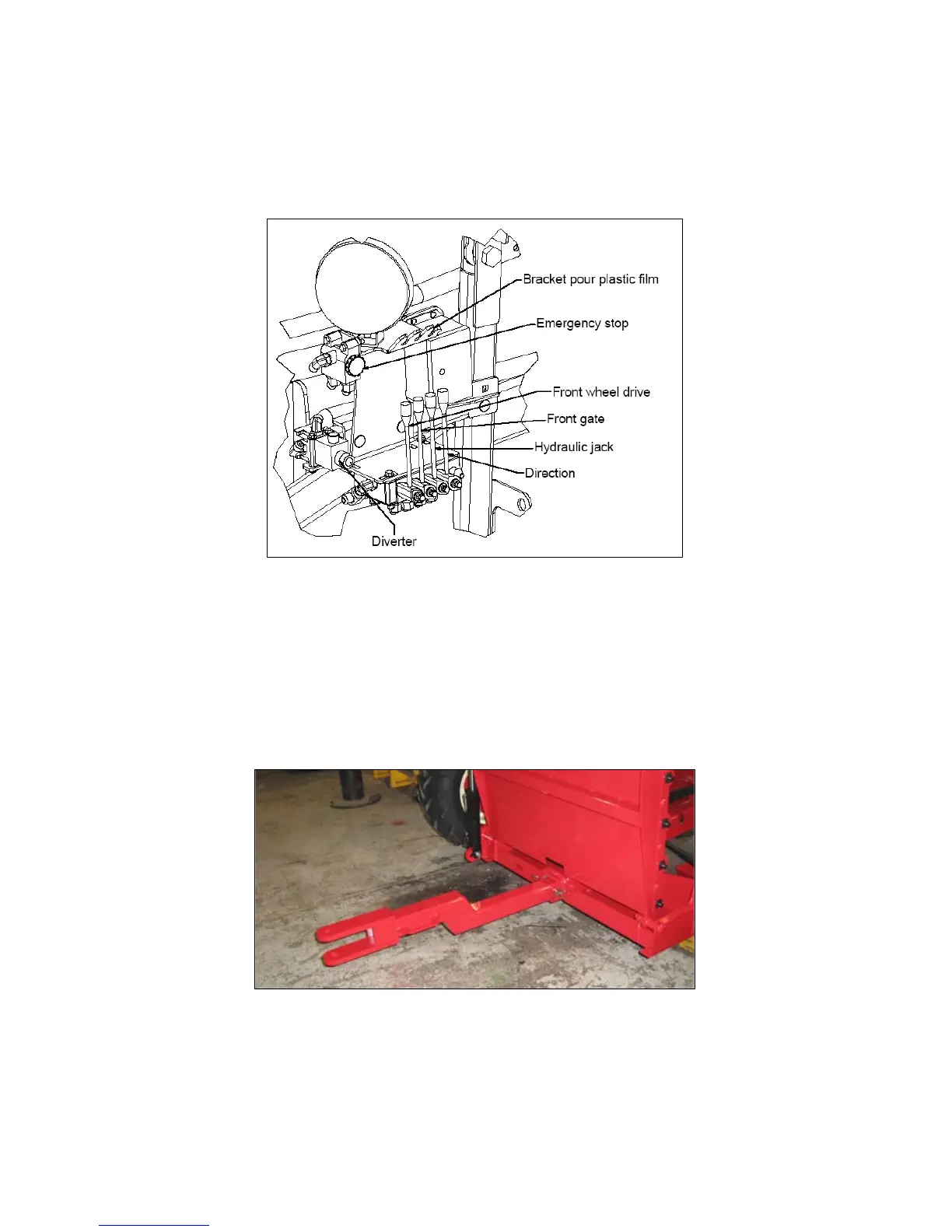

Figure 4.1 Controls
Medium Distances
Your machine can be moved short and medium distances behind a tractor or truck. Use the
hydraulic jack to raise the front of the bale wrapper. Attach the machine and attach a security
chain to the ring provided for this purpose on the draw bar (Figure 4.2). The front wheels of
the machine should not touch the ground during transportation. Closely align the rear wheels
using the indicator decal and the needle gauge (Figure 4.3). On public roads, follow the traffic
regulations of your region for agricultural machines.
Figure 4.2 Draw bar
