Anderson WRAPTOR User Manual
5
of 1
of 1 rating
70 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Anderson Group
, 5125 de la Plaisa
nce Chesterville (Québec) G0P
1J0
Toll Fr
ee : 1-888-8
33-2952, Tel
. : 819-382-29
52, Fax.
: 819-382-264
3 Email :
service@granderson.com

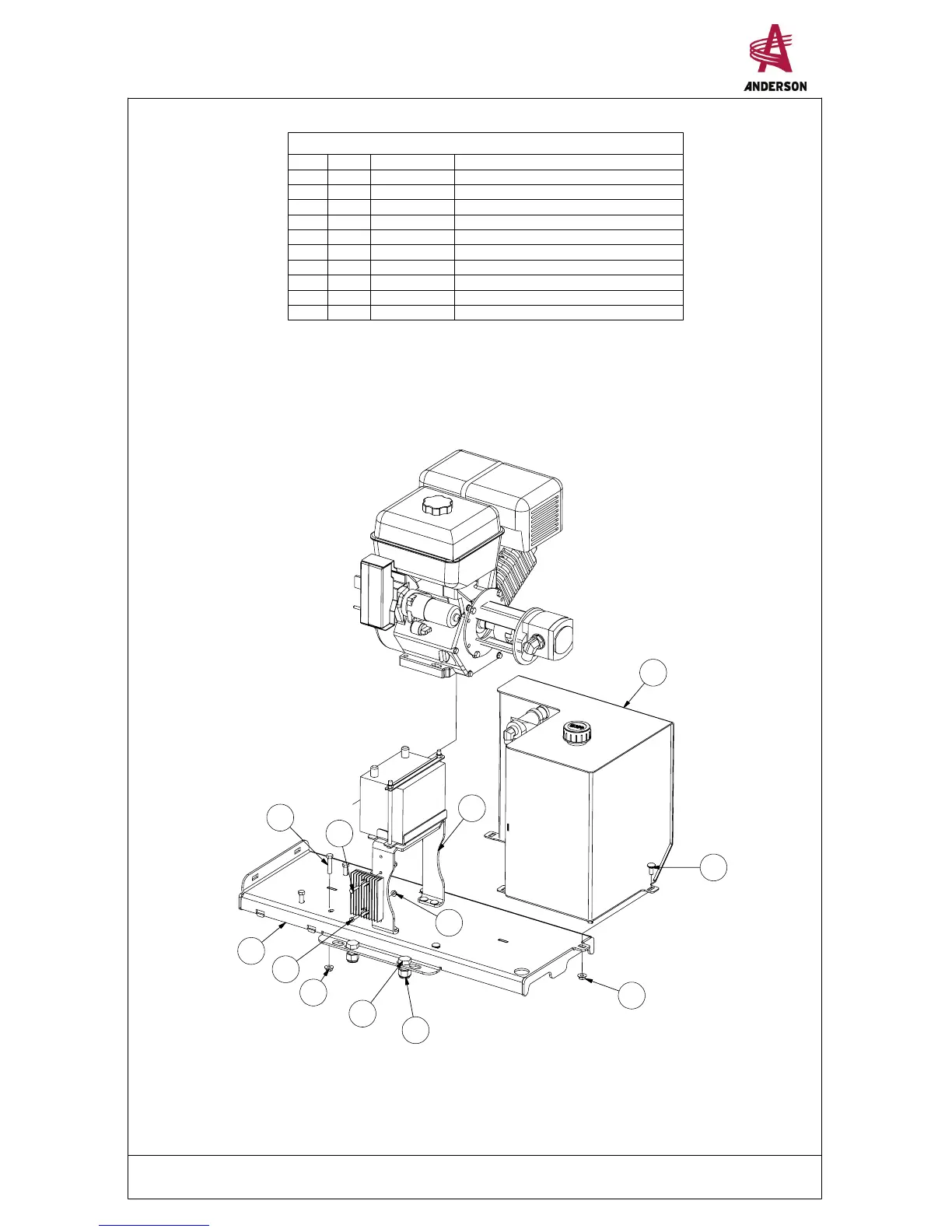

PART
S LIST
DESCRIPTION
PAR
T
QTY
ITEM
OIL TA
NK
237106
1
1
FLANGE NUT
501022
13
2
BASE
237107
1
3
FRAME ASSEMB
LY
237108
1
4
NYLO
N NUT
501036
4
5
BOLT
500090
4
6
CARRIGE BOLT
500440
3
7
BOLT
500006
2
8
FLANGE NUT
501020
2
9
BOLT
500212
4
10
9
8
2
8
6
3
10
5
2
7
1
11 - POWER UNIT
4
P. 16
54
56
Table of Contents
Table of Contents
3
1 ANDERSON Limited Warranty
11
One-Year Limited Warranty
11
Documents
11
Problem Resolution
11
Modifications
11
Warranty Exemptions
13
Exclusive Remedy
13
2 Safety
14
Safe Operators
14
Danger Zone
14
Dangerous Situations
14
Prevention
14
Safe Maintenance and Repair
14
Fuel
14
Hydraulic Oil
15
Traveling Safely on Public Roads
15
End of Operation
15
3 General Characteristics and Specifications
16
Design
16
Read Me
16
Figure 3.1 Dimensions and Weight
16
4 Moving the Bale Wrapper
17
Short Distances
17
Medium Distances
17
Figure 4.1 Controls
17
Figure 4.2 Draw Bar
17
Long Distances
18
Safety Measures
18
Work Lights
18
One Halogen Light Installed on the Cross Bar on the Right Side of the Machine to Facilitate Machine Operation in the Evening or at Night
18
Figure 4.3 Indicator Decal
18
5 Advice for Producing High Quality Fodder Silage
19
Why Make Fodder Silage
19
Why Make Fodder Silage with Round Bales
19
Why Make Continuous Bale Fodder Silage
19
When Is the Best Time to Harvest
19
When Is the Best Time for Baling
20
When Is the Best Time to Produce Continuous Bale Rows
20
6 Wrapping Settings
21
St Plastic Film Roll
21
Figure 6.1 Brake Pedal
21
Figure 6.2 Roll Support and Stretcher
21
Installing the 2 Plastic Film Roll
22
Adjusting the Hoop's Drive Wheel
22
Figure 6.3 Installing the Plastic Film Roll
22
Adjusting the Plastic Film Stretchers
23
Testing the Stretchers
23
Figure 6.4 Hoop Wheel
23
Figure 6.5 Stretcher Spring
23
7 Operation
24
Storage Place Choice
24
Coupling to the Bale Wrapper
24
Unloading and Wrapping
24
Number of Layers of Plastic
25
Trailer Steering System
25
Decoupling from the Bale Wrapper
25
Finishing a Continuous Bale Row
25
Hermetically Sealing a Continuous Bale Row
26
Figure 7.1 Last Bale Wrapped
26
Remote Operation
27
Figure 8.1 Remote Control for Remote Operation
27
Operation
28
Programming
28
Figure 8.2 Remote Operation Module
28
Figure 8.3 Electrical Diagram 1
29
Figure 8.4 Electrical Diagram 2
29
Figure 8.5 Electrical Connections 1
30
Figure 8.6 Electrical Diagram 3
30
Figure 8.7 Electrical Diagram 4
31
Figure 8.8 Electrical Diagram 5
31
9 Maintenance and Storage
32
Safety
32
Grease Gun Lubrication
32
Other Lubrication Points
32
Cleaning
34
Preventative Maintenance
34
Storage
34
10 Troubleshooting
35
Breakdown
35
11 Reassembling the Hoop
37
Outer Hoop
37
Inner Hoop
37
Figure 11.1 Outer Hoop
37
Figure 11.2 Inner Hoop
37
Content 1 General View P.3
41
General View
42
Complete Front Section
43
Frame Front Section
44
Front Spindle
47
Steering Axle
49
Rear Axle
50
Support Hoop
54
Power Unit
55
Spear Support and Spear
58
Hoop
61
Stretcher
64
Hoop Shield
67
