Andover Controls ACX 780 - Wiring Motion Sensors;Exit Push Buttons; Figure 10. Functioning of Doorswitch Input Wired to Supervisory Input

To Next Page

To Previous Page

Hardware Installation

24 Andover Controls Corporation

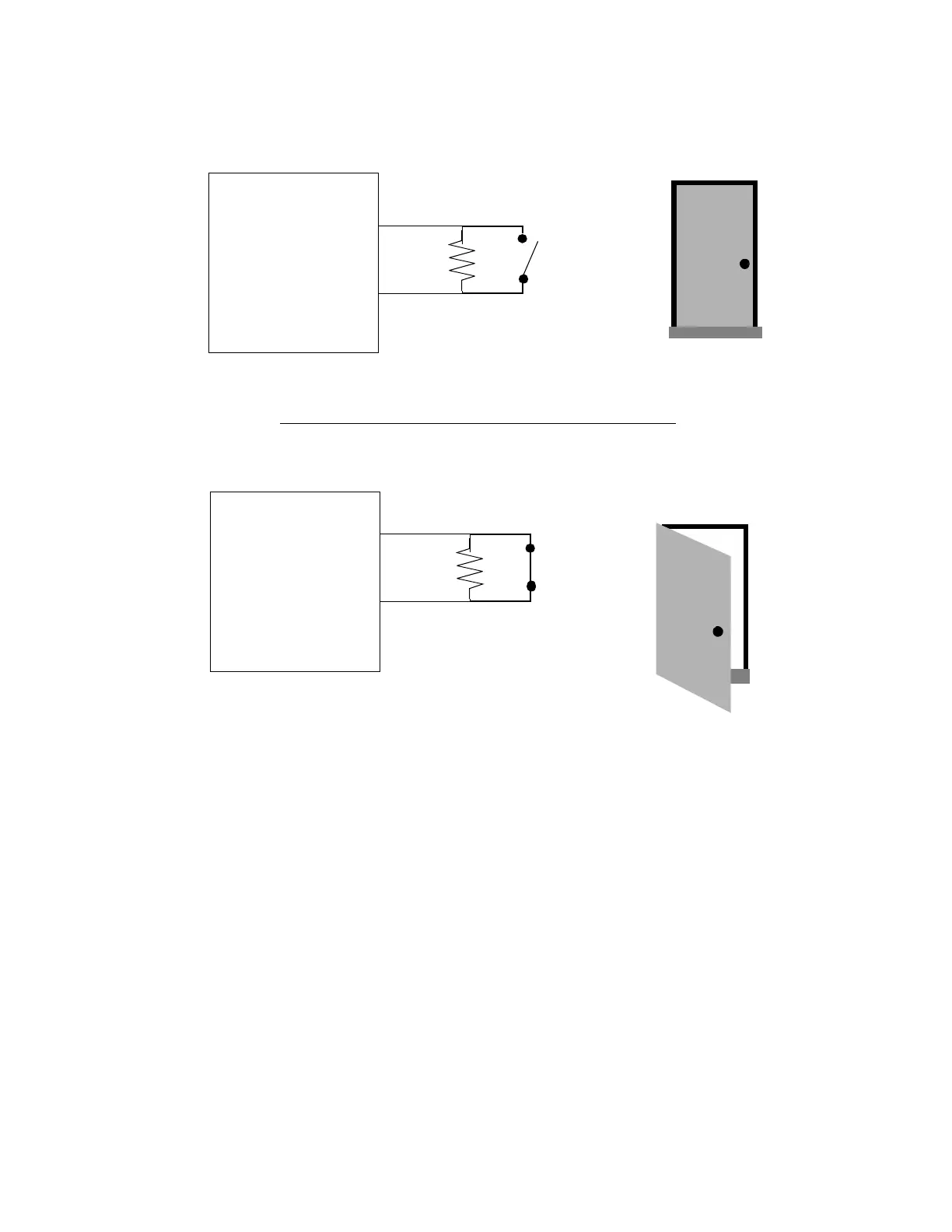

Figure 10. Functioning of DoorSwitch Input Wired to Supervisory Input

Wiring Motion Sensors/Exit Push Buttons

You may wire up to eight of the 32 supervisory inputs to motion sensors

or exit buttons. You wire them the same way you wire DoorSwitch in-

puts, only the motion sensor requires an external power supply of 12

VDC or 24 VDC (UL listed under APHV). The maximum length

wire you may use is 500 ft of #18 gauge wire (152 m of 1.0 mm

wire)

or 200 ft of #22 gauge wire (60 m of 0.35 mm

wire).

10 K

Ω

10 K

Ω

Normally Open DoorSwitch

Door Closed

(Normal)

Detects

Door Open

Access

Controller

Access

Controller

2±
