Hardware Installation
26 Andover Controls Corporation
Wiring the Other Two-Wire Inputs
Follow these steps to wire two-wire inputs:
1. Slip the first wire for the sensor under the screw labeled IN9 and
tighten the screw down on it.
2. Slip the ground wire under the RET9 screw and tighten the screw
down on them.
3. Repeat the steps for each pair of inputs.
Figure 12 shows a counter wired to an input point.

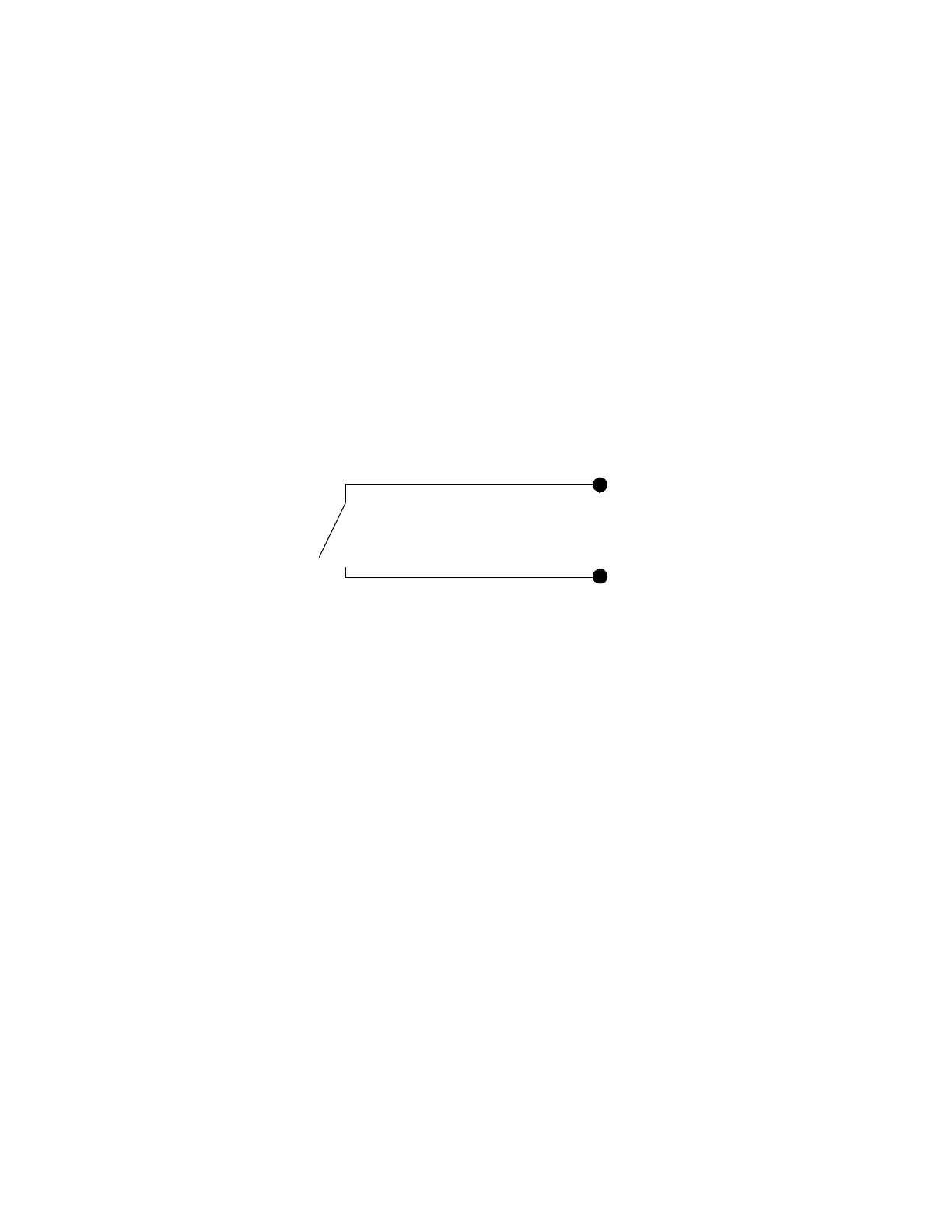

Figure 12. Wiring Diagram for Counter or Digital Input
Wiring the Card Reader Inputs
Be sure you wire all card readers with shielded wiring.
The maximum length of wire you may use depends on the card reader
brand name and the type of wiring/cable you use. Refer to the earlier
sections in this manual.
In the case of Proximity card readers, you may connect the required
12 VDC power supply at the ACX 780/781 or at the card reader.
1 (input point 1)
RET (return)
2±
