Andover Controls ACX 780 User Manual

Hardware Installation
36 Andover Controls Corporation

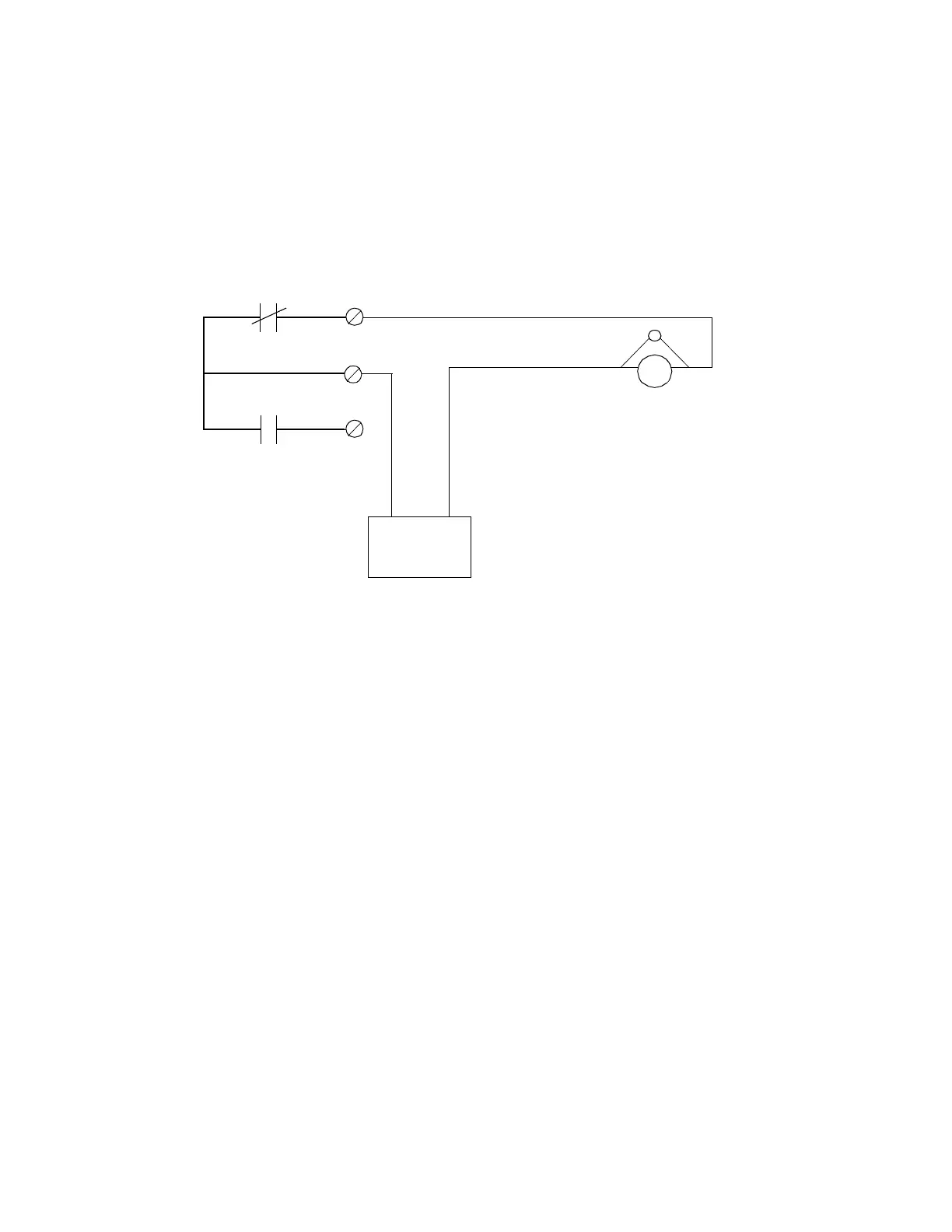

Figure 20 shows the schematic for wiring a DOOR or AUX output if the
circuit is normally closed.
Figure 20. Wiring Diagram for DOOR and AUX Form C Outputs if Normally
Closed
This configuration shows a normally deenergized lock (when secured)
in a fail secure mode. If power loss occurs, the lock circuit opens.
NC
C
NO
C
12/24V
Electromagnetic
Door Lock
Power Supply
(UL listed power
supply (APHV) for
UL listed systems)
(UL listed burglary-
resistant electric
locking mechanism
(CVXY) for
UL listed systems)
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Andover Controls ACX 780 Specifications

General

Brand	Andover Controls
Model	ACX 780
Category	Controller
Language	English
