Hardware Installation

CMX 240 Series Installation Guide B-3

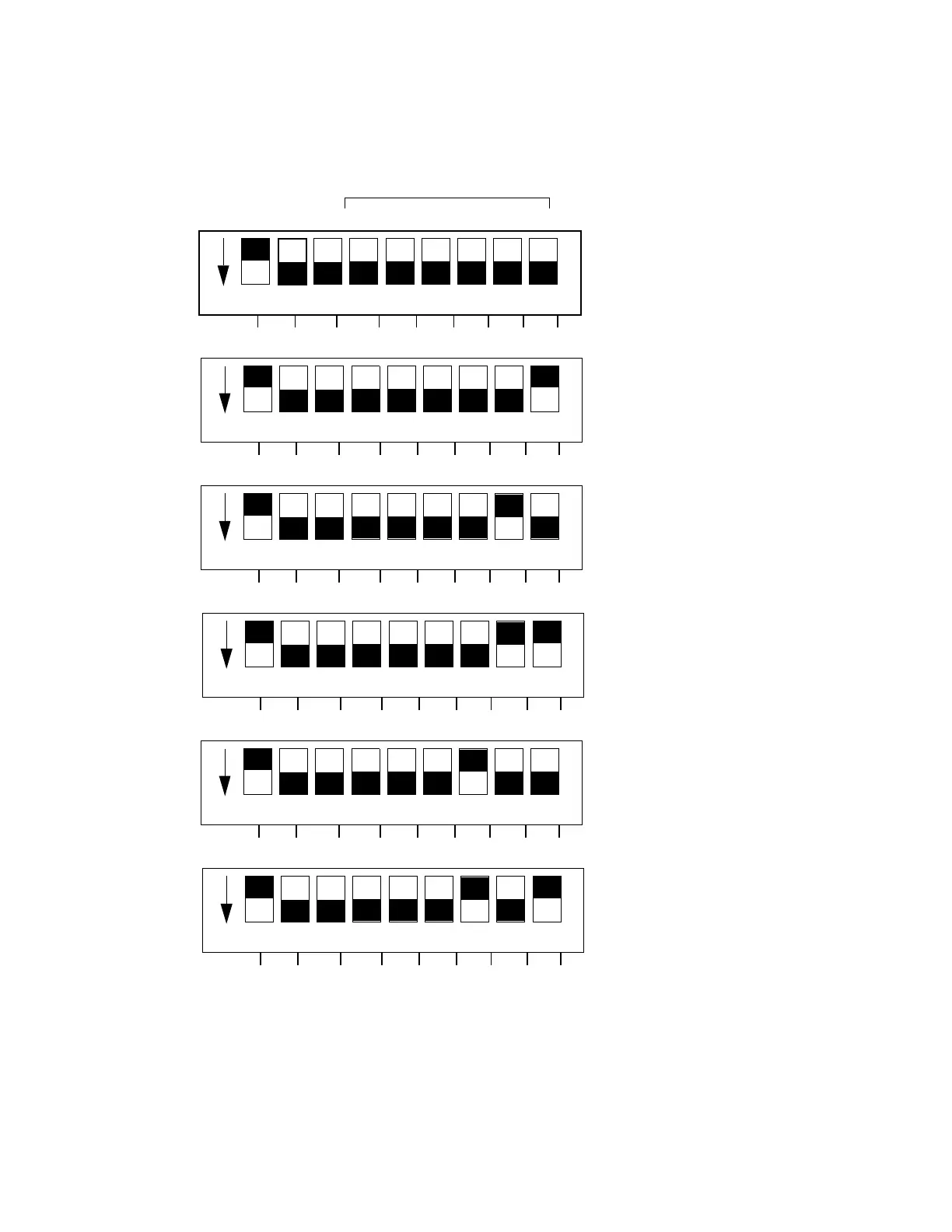

Figure B-2. Switch Settings for Tank Probes

on Channels 1 through 6

123456789ON

Channel 1

Channel 2

123456789ON

Channel 3

Channel 4

123456789ON

Channel 5

Channel 6

(Address 0)

(Address 1)

(Address 2)

(Address 3)

(Address 4)

(Address 5)

32 16 8 4 2 1

Binary Value of Each Switch
