Step 3

Step 4

Installation Procedures

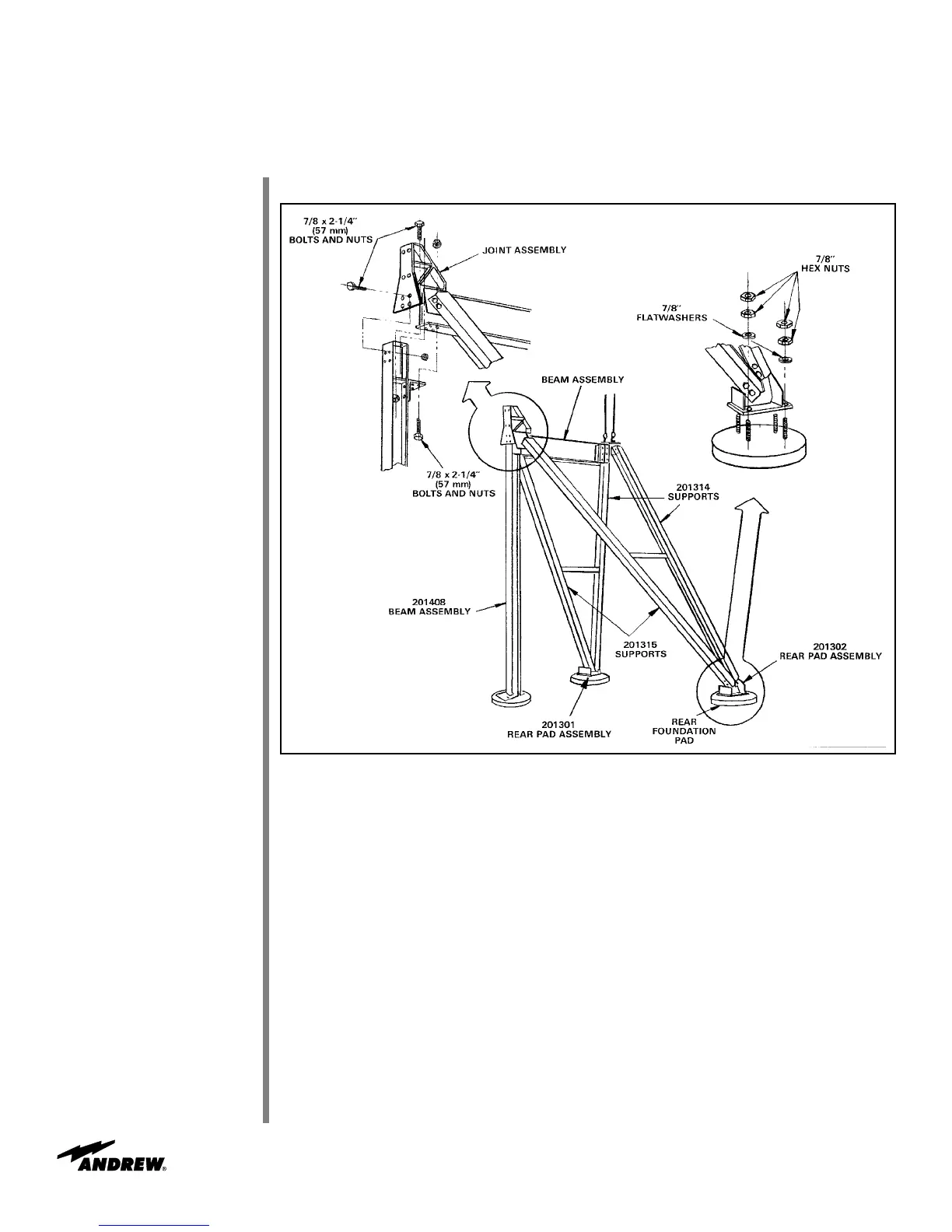

Attach rear pad assemblies to rear foundation pads as pictured in Figure 31.

Figure 31

Connect beam assembly using 7/8 x 2-1/4 in (57 mm) hardware. Tighten supports to

beam assembly per A-325 tensioning procedure.

201313A

201327A
