Andrew 7.3-Meter ESA User Manual

Step 7
Step 8
41
Installation Procedures

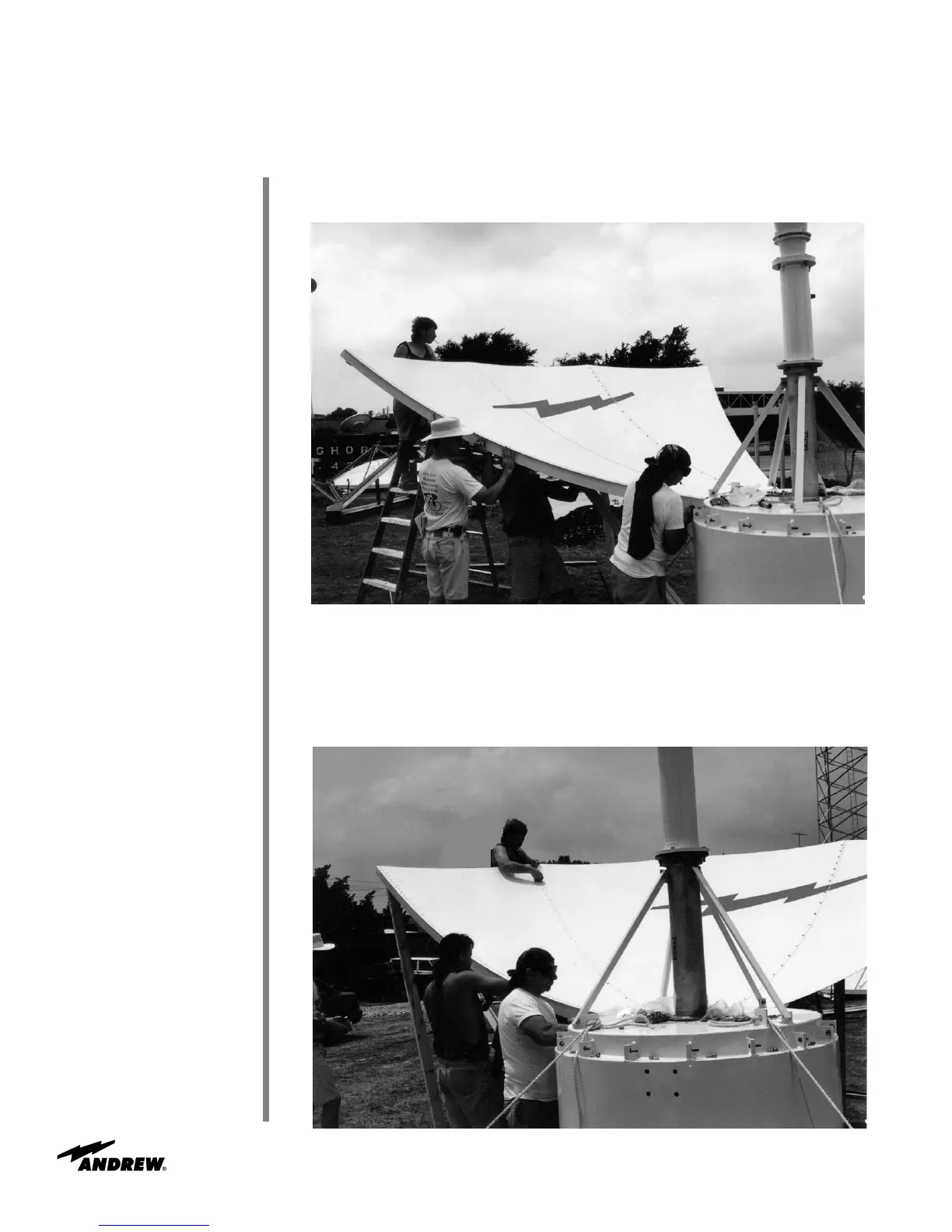

Install third panel segment (adjacent to first panel segment) according to Steps 4 thru 6
and Figure 51.
Figure 51
Continue installing panel segments as described in Steps 4 thru 7 in counter-clockwise
direction as shown in Figure 52. Note: Panels are numbered and should be installed in
proper sequence.
Note: Ensure that 9 ft supports are used at every other panel segment.
Figure 52
