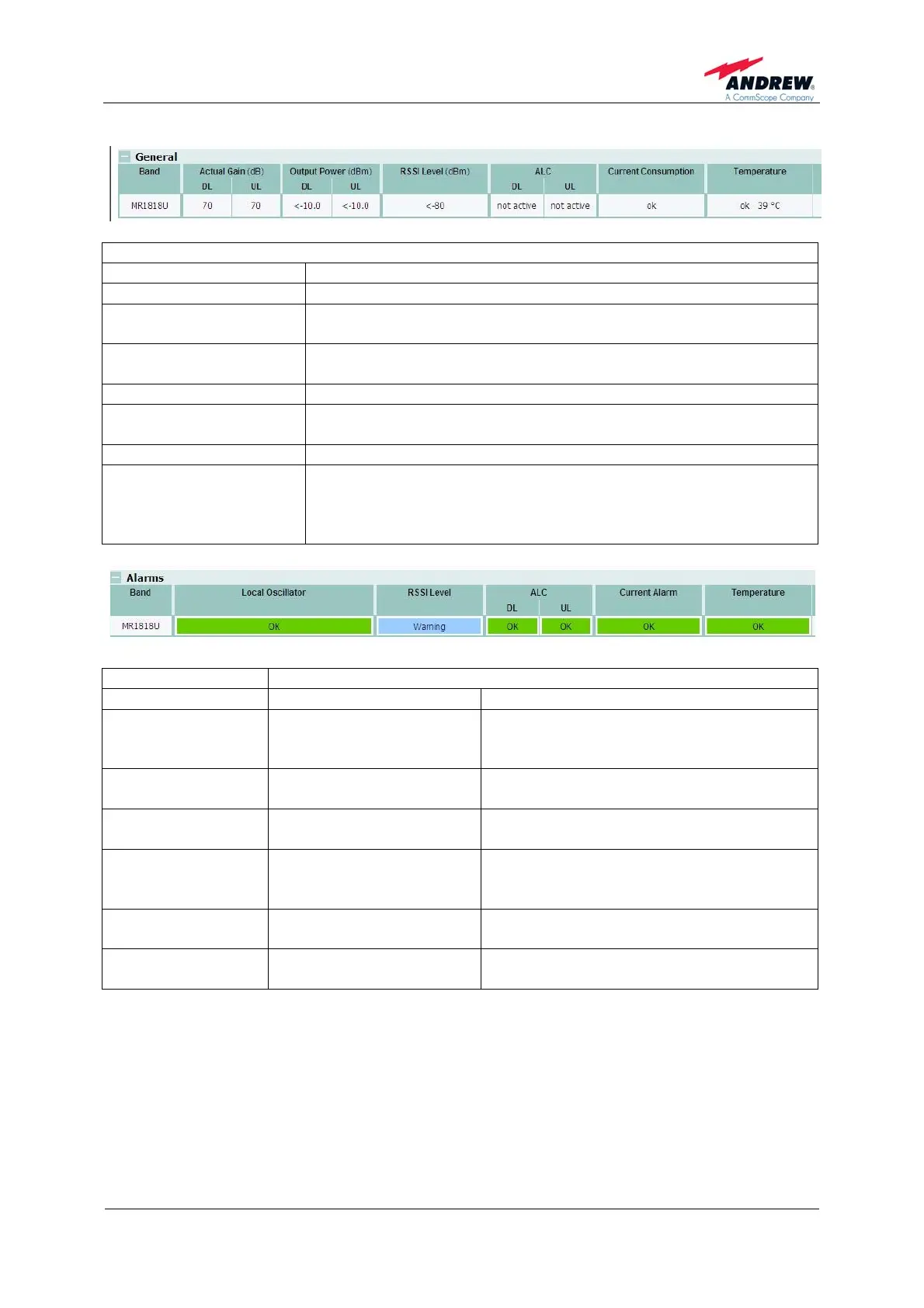

Page 25
Status
Parameter Description of General
Band
For the single band repeater MRx18 only one band is displayed.
Actual Gain (dB)
DL/ UL
The actual UL and DL gain is shown, even if Auto Gain is
activated.
Output Power (dBm)
DL / UL
The actual measured output power in DL and UL is shown, for
low output power levels "<-10.0" is displayed.
RSSI Level (dBm)
The actual DL input level at the donor antenna port is indicated.
ALC DL / UL
The condition of the ALC is displayed herein. When ALC is
active, the ALC limit is stated in brackets, e.g. "active (18)".
Current Consumption
Shows if the current is within the pre-defined limits.
Temperature
The current temperature condition is displayed. If temperature
raises above 80° C, an alarm is generated and the RF section of
the repeater is powered down until normal temperature is
reached.
Description of Alarms
Parameter Cause Solution
Band
For the single band
repeater MRx18 only one
band is displayed.
---
Local Oscillator
The LO does not lock.
Restart repeater. If the error persists,
contact technical support.
RSSI Level
Input signal level too low.
Check antenna alignment, donor antenna
and antenna cables.
ALC
DL/ UL
Input power too high.
Decrease gain, set ‘Auto Gain enabled’ or
decrease input power with external
attenuators.
Current Alarm
Power consumption is not
within the defined range.
Restart repeater. If the error persists,
contact technical support.
Temperature
Temperature too high.
(>80°C)
Check installation location of MRx18 and
improve ventilation.
table 5-2 Status page
The severity of the alarms can be changed in the Settings page (see chapter 5.5.2
Settings - Alarms). The latency time of each alarm is 10 seconds, i.e. the repeater
has to be in alarm condition for 10 seconds before an alarm is notified.
