User’s Manual for
MRx18 Rel. 2 Single-Band
Page 18 M0139ADD.doc
4.2. ELECTRICAL INSTALLATION
) Note: The electrical installation has to be performed in accordance with
the safety regulations of the local authorities. Due to safety
reasons, the electrical installation must be performed by qualified
personnel only. The repeater must not be opened.
¾ Connect the antenna cables to the antenna connectors and the antennas.
¾ Use only the power supply delivered with the unit. Do not modify the power
supply unit (PSU) and cable!
Do not mount the PSU to the ceiling!
Connect the DC connector of the power supply and provide mains to the
power supply. Ensure the DC connector is plugged in correctly as in the
following illustrations.
Plug in the male DC connector by
inserting the lug into the guide at
the DC connector with the arrow-
moulded side on top, see
illustrations.
The DC connector of the cable is
equipped with a locking mechanism.
The system of locking the plug is based
on a “push-pull” mechanism. The
locking sleeve has to be pulled back to
free the connection.

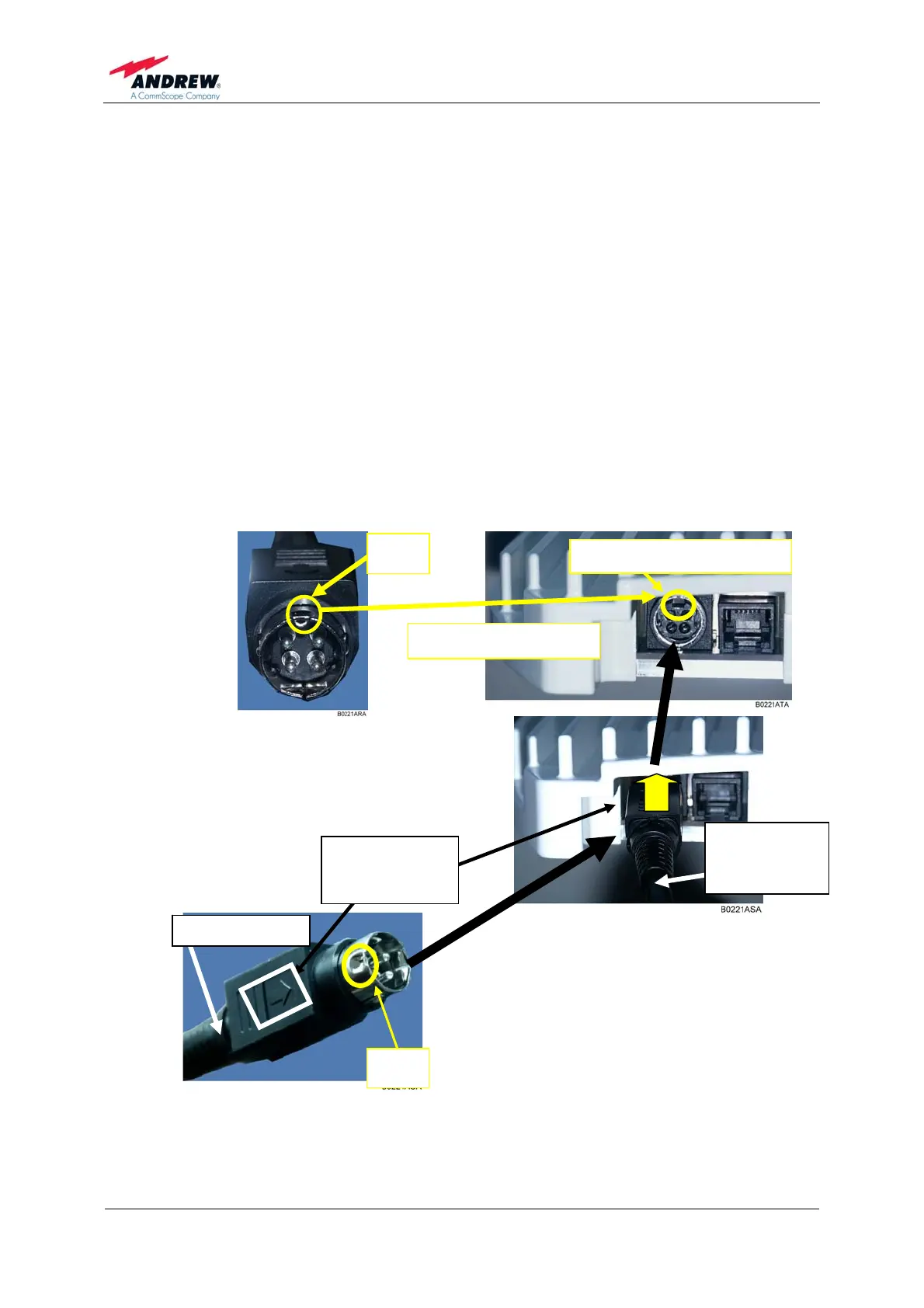

figure 4-2 Power connection of DC connector with MRx18
Lug
Locking sleeve
Pull back
locking sleeve
to disconnect!
Guide of DC connector
Lug
Insert lug into guide
Insert with
arrow-moulded
side on top
