Page 27 of 36

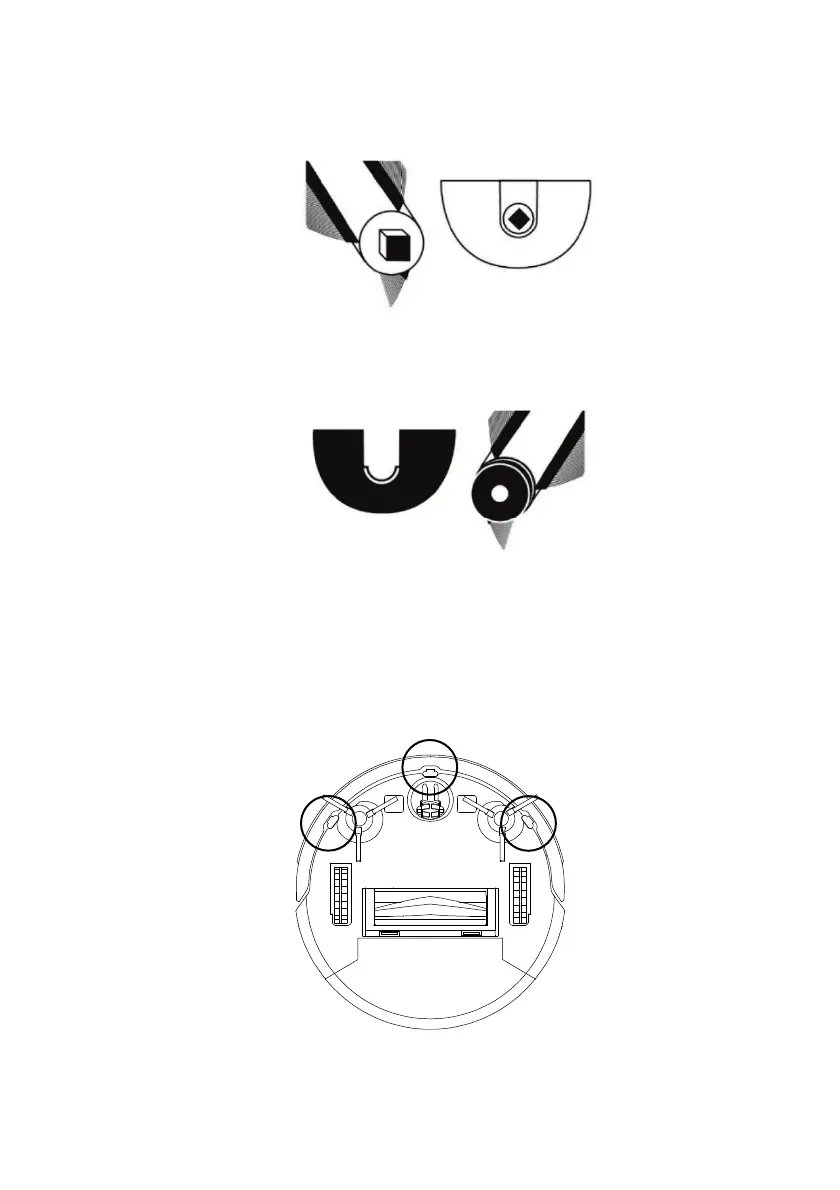

• Re-insert the roller brush by placing the square spoke on the brush
right end into the corresponding square hole on the right side of the
brush recess.
• Lower the left side of the roller brush into the semi-circle slot on the
left side of the brush recess.
• Refit the Roller Brush Surround and push down until it clips in place.
13.6 Cleaning the Robot Sensors
The Robot has three sensors located on the underneath as shown.
• Keep these sensors clean by wiping with a dry cloth or brush them
using the cleaning brush supplied.
