Section 4 Detailed Description
(4) In case that the 0101 fixed pattern is used as the delivery data pattern
When the Pattern Generator output is turned ON, the idle pattern is continuously delivered.
When the delivery operation is performed, the 0101 repetition pattern delivery starts just after the current idle pattern
delivery is finished.
In the Single mode, after the 01 pattern is delivered once, the idle pattern delivery is resumed.
In the Continuous mode, the 01 repetition pattern delivery is repeated until the stop operation is performed. When the
stop operation is performed, the idle pattern delivery is resumed just after the current 01 repetition pattern delivery is
finished.
⋅⋅⋅⋅⋅
⋅⋅⋅⋅⋅
⋅⋅⋅⋅⋅
⋅⋅⋅⋅⋅

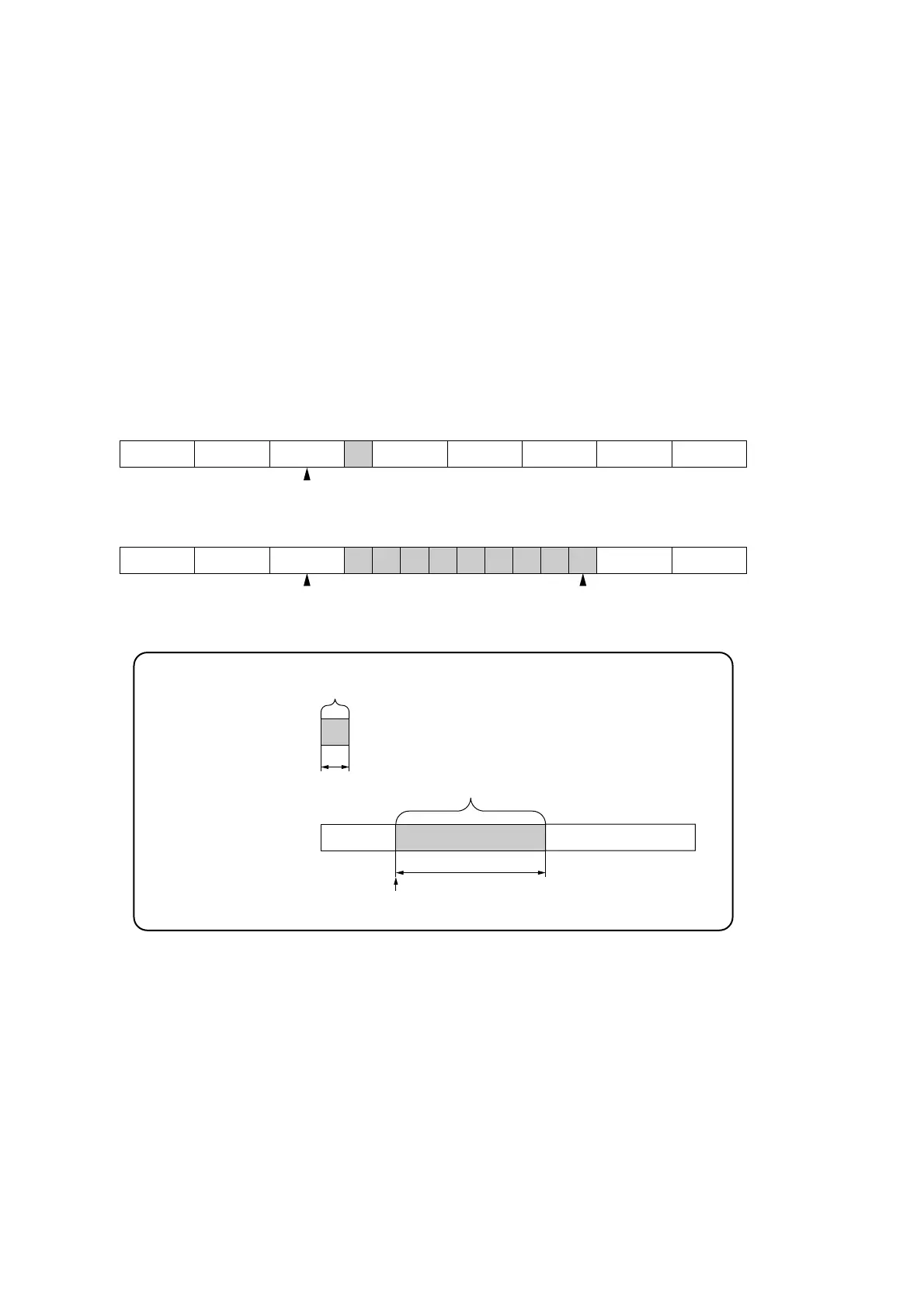

Idle Idle Idle Idle Idle Idle Idle Idle
Idle Idle Idle IdleIdle
Single
delivery operation
Continuous
delivery operation
Stop operation
6553500000
Idle
Data bit length
First delivery address
01 repetition
Idle pattern memory
01
2 bit
01
01
01
01 01 01 01 01 01 01 01
