Section 4 Detailed Description
The Pattern Generator function is described in detail.
4.1 Delivery Mode
The time charts of each delivery data patterns in both the Single and Continuous delivery modes are as follow:
(1) In case that the free pattern Defined: 1 to 4 is used as the delivery data pattern
When the Pattern Generator output is turned ON, the idle pattern is continuously delivered.
When the delivery operation is performed, the free pattern delivery starts just after the current idle pattern delivery is
finished.
In the Single mode, after the free pattern is delivered once, the idle pattern delivery is resumed.
In the Continuous mode, the free pattern delivery is repeated until the stop operation is performed. When the stop
operation is performed, the idle pattern delivery is resumed just after the current free pattern delivery is finished.
⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅
⋅⋅⋅⋅⋅ ⋅⋅⋅⋅⋅

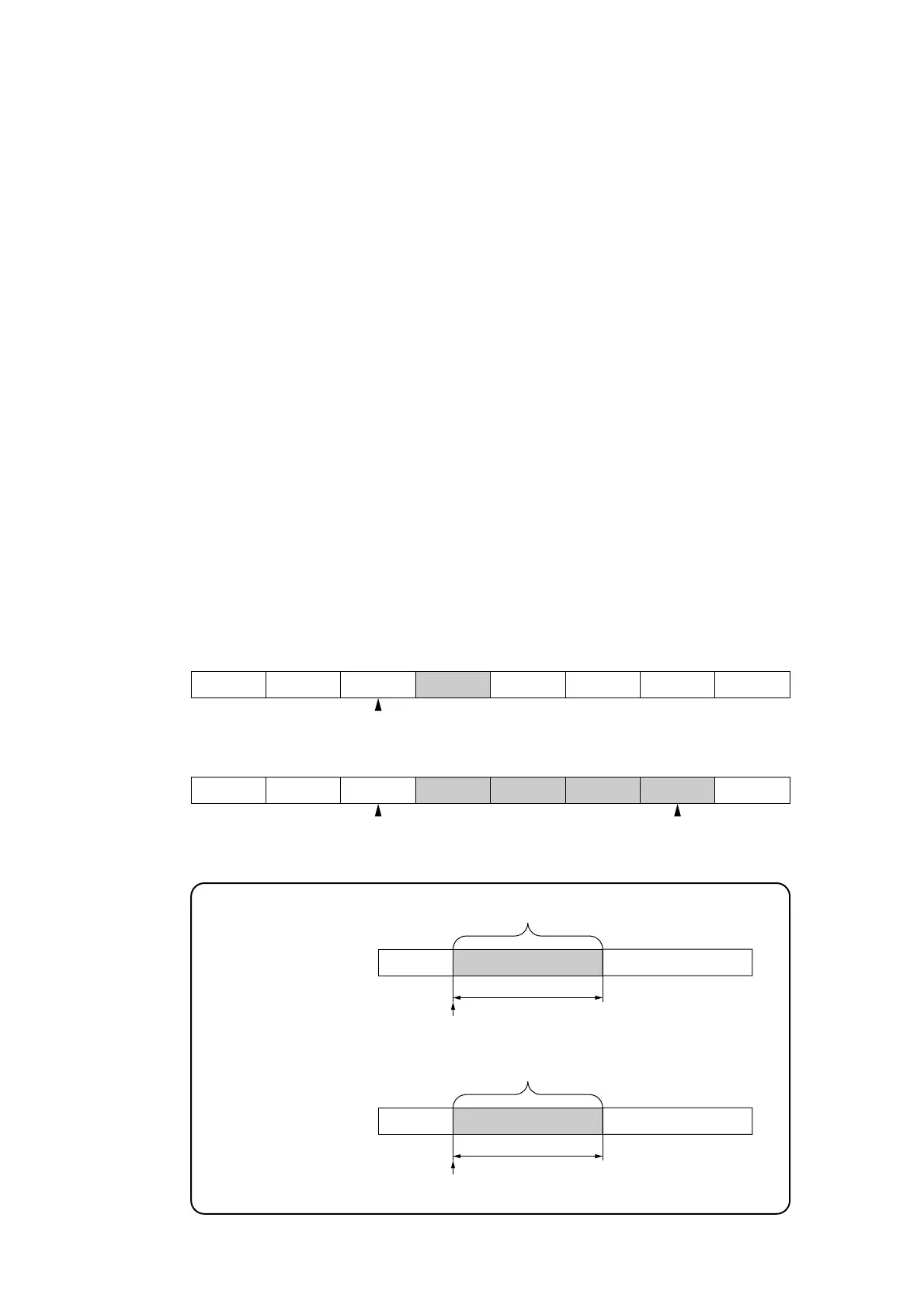

Idle Idle Idle Data Idle Idle Idle Idle
Idle Idle Idle Data Data Data Data Idle
Single
delivery operation
Continuous
delivery operation
Stop operation
Data
Data bit length 6553500000
6553500000
First delivery address
Idle
Data bit length
First delivery address
Free pattern memory
Idle pattern memory
Defined: 1 to 4
4.1 Delivery Mode
To Next Page
