Section 4 Detailed Description

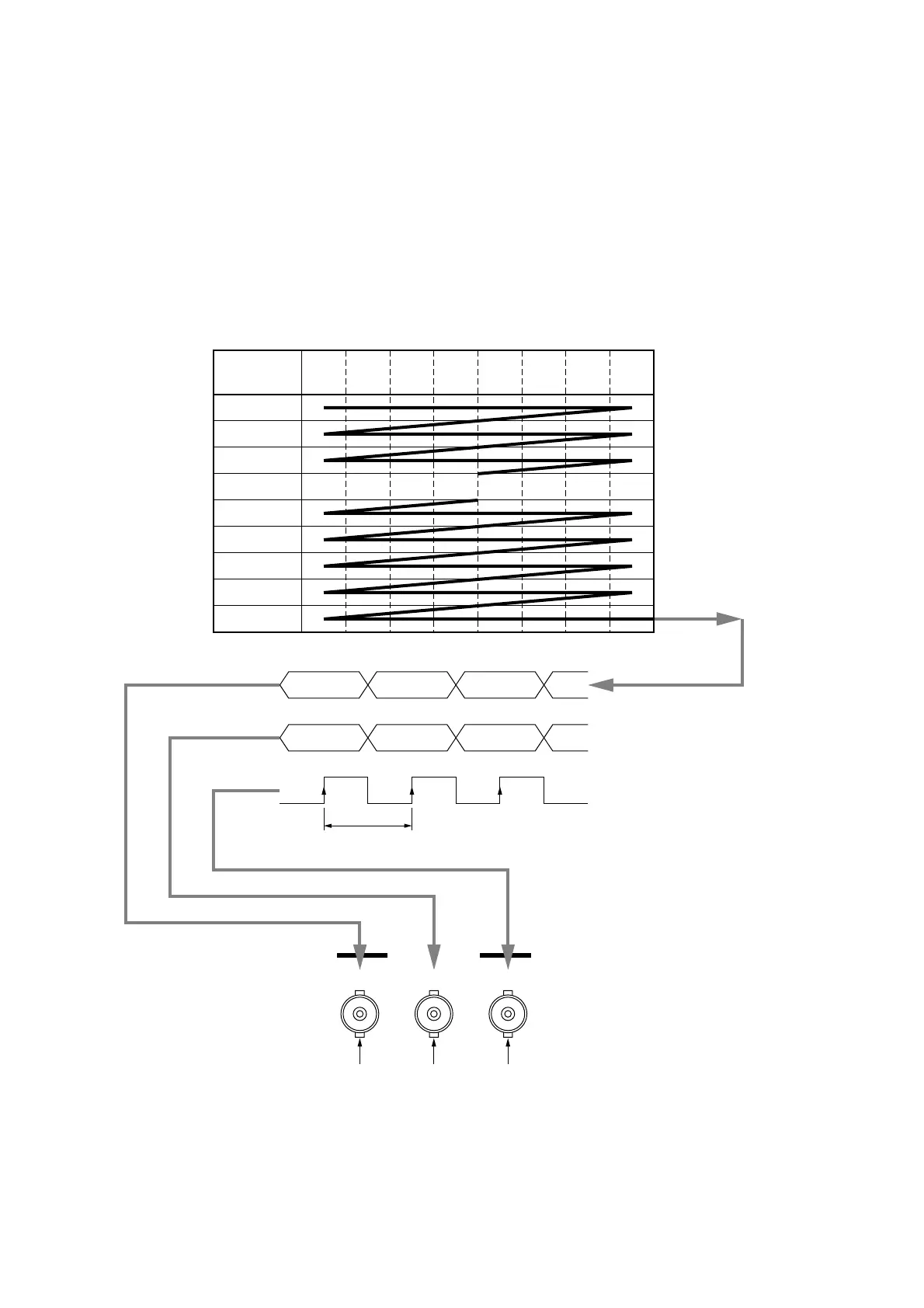

(2) 2-bit NRZ output method
Data are sequentially output by 2-bit into the Data 2
1
Output and the Data 2
0
Output starting from the specified first
delivery address LSB for the specified data bit length (an even number). This is used when the 4-value FSK modulation
is performed in the combination with the FSK encoder.
Address
D7
(MSB
)
D6 D5 D4 D3 D2 D1
D0
(LSB)
65535
65534
65533
:
00004
00003
00002
00001
00000
::::::::
2/Rate
D0 D2 D4
D1 D3 D5
Int Mod Cont
231
Data 2
1
Data 2
0
Clock
Note:
When the specified data bit length is an odd number, the delivery is made of which bit length is 1-bit subtracted
from the specified bit length (an even number). When you want to output an odd bit length data by 2-bit NRZ
output method, continuously write the same data twice to make the total bit length to be an even number before
the delivery.
Example) In the case of the seven-bit data “0100101” delivery by using the 2-bit NRZ output:
Deliver the data to be 14-bit data “01001010100101”.
