Example 2
In case that the following 15-bit data are written into the Defined: 1 free pattern memory and delivered
by using the 2-bit NRZ output method:
“010011011010010”
The two data are connected so that the bit length is an even number, delimited by 8-bit unit, and arranged so that LSB
becomes the first bit. Dummy data (*: either 0 or 1) are added to fill the insufficient two-bit end.
0100110110100100
010011011010010
10011011010010∗∗
: PATTern: DATA: DEFined1: ERASe
: PATTern: DATA: DEFined1 00000, 10110010
: PATTern: DATA: DEFined1 00001, 00100101
: PATTern: DATA: DEFined1 00002, 11011001
: PATTern: DATA: DEFined1 00003,
∗∗010010

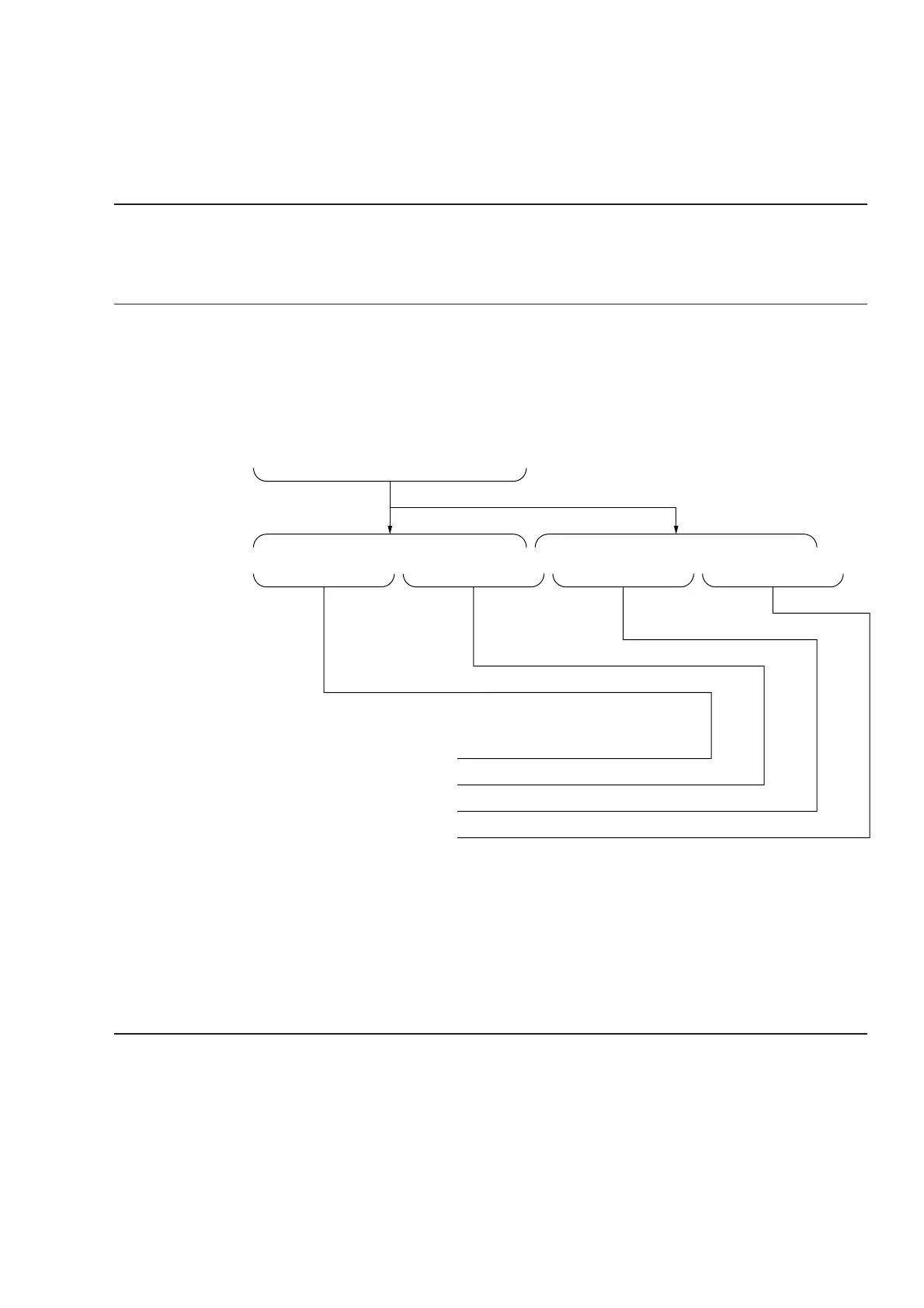

The first bit
↓
After the data are written, the first delivery address is set to “00000”, the data bit length is set to 30-bits (15 bits×2), and
the delivery method is set to 2-bit NRZ output before the delivery.
: PATTern: TOP: DEFined1 00000
: PATTern: LENGth: DEFined1 30
: PATTern: TYPE 2bit
