S331L MM PN: 10580-00323 Rev. B 4-1
Chapter 4 — Assembly Replacement
This section will provide a list of tools and procedures to replace the sub-assemblies within the S331L.
Tools Required:
• #1 Philips Screw Driver
• #6 Torx Screw Driver
• 19mm wrench
4-1 Replacing the S331L Batteries
This procedure provides instructions for replacing the batteries in the S331L.
1. Remove the bottom bumper..
Caution
Electrostatic Discharge (ESD) can damage the highly sensitive circuits in the instrument.
Repair of damage that is found to be caused by electrostatic discharge is not covered under
warranty.
The S331L contains components that can be easily damaged by electrostatic discharge (ESD). An
ESD safe work area and proper ESD handling procedures that conform to ANSI/ESD S20.20-1999
or ANSI/ESD S20.20-2007 is mandatory to avoid ESD damage when handling subassemblies or
components found in the instrument.

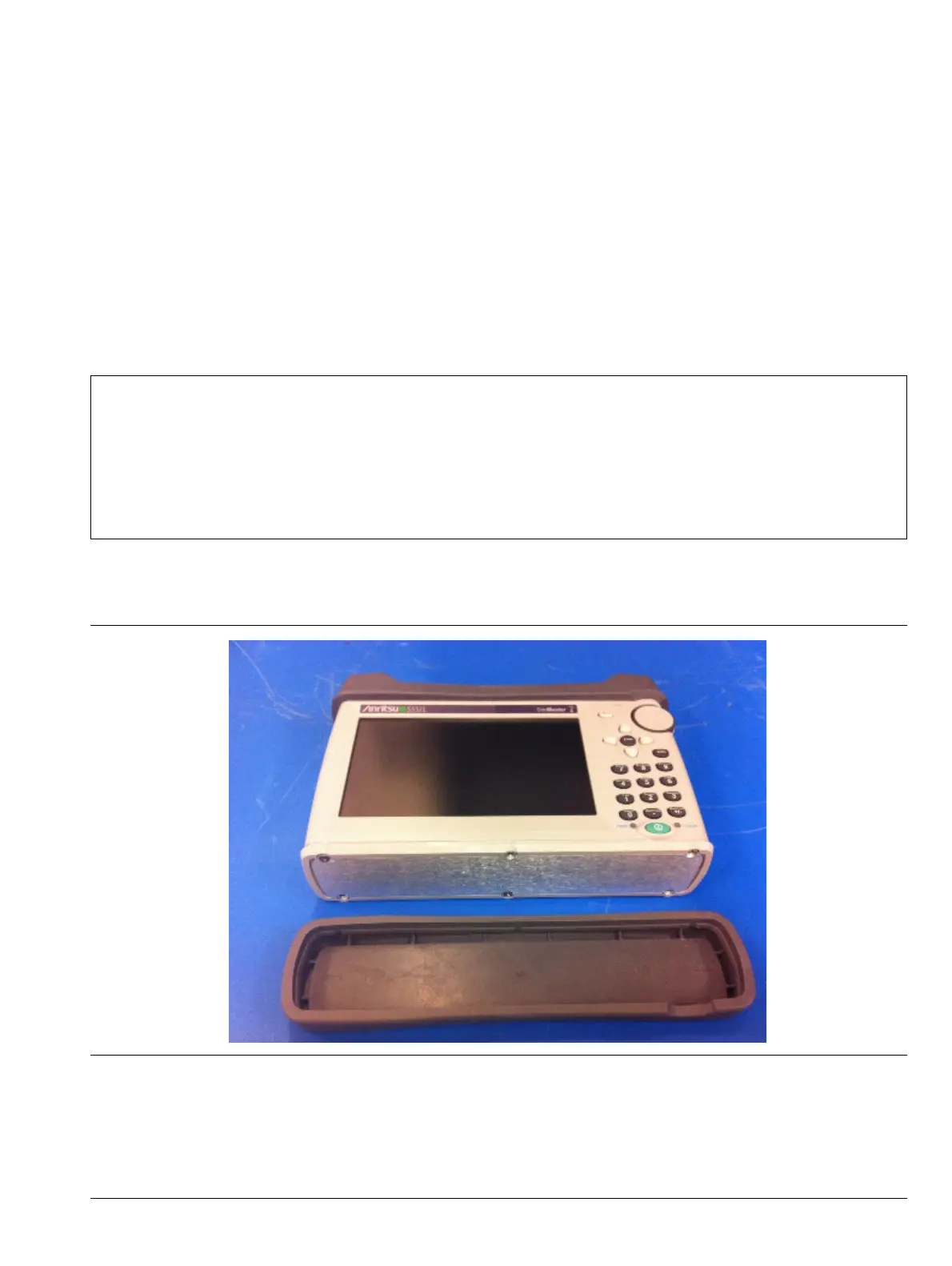

Figure 4-1. Bottom Bumper Removal
To Next Page
