4-7 SOM Module Replacement Assembly Replacement
4-14 PN: 10580-00323 Rev. B S331L MM
6. With the shields removed the SOM Module can now be removed by gently prying up at each end where
the arrows are located until the module releases from the Main/VNA PCB, see Figure 4-21. Make note of
the orientation of the SOM Module so it can be installed the same way. For installation gently press the
new SOM module in place by supporting the back side of the Main/VNA PCB, to prevent the Main PCB
from flexing..

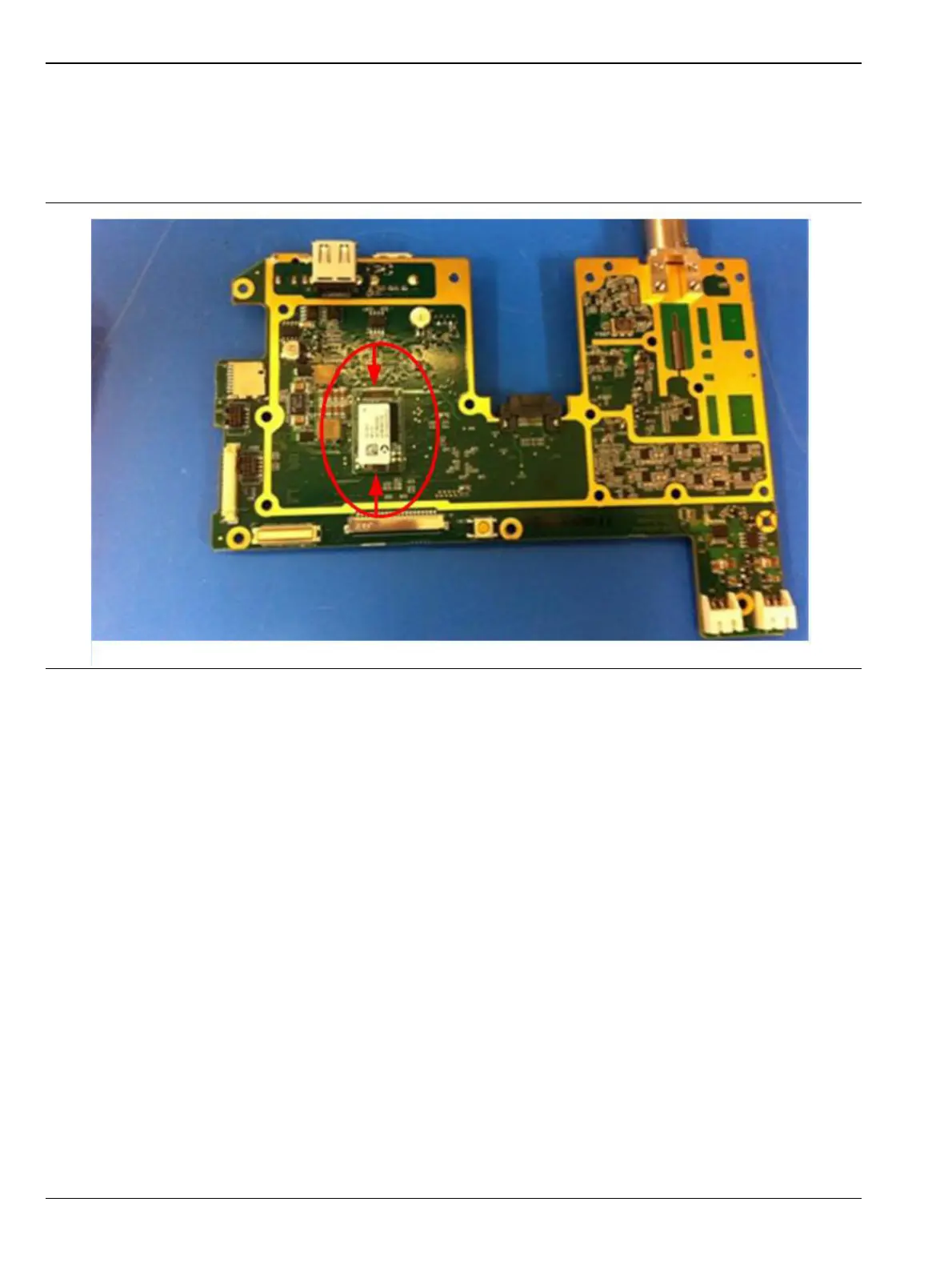

Figure 4-21. With Shields Removed the SOM Can Be Removed
