INSTALLATION OF DRAIN
• In dehumidication mode, remove the top
drain plug on the back of the appliance and
connect the drain hose (sold separately). Use
3/4’’ hose with 5/8’’ coupling with external
thread. For models without drain connection,
connect the drain hose to the hole. Lead the
hose to a suitable drain (g. 20a).
• In heat pump mode, remove the bottom drain
plug on the back of the appliance and connect
the drain hose (sold separately). Use 3/4’’
hose with 5/8’’ coupling with internal thread.
For models without drain connection, connect
the drain hose to the hole. Lead the hose to a
suitable drain (g. 20b). NOTE: Check that the
hose and coupling are tight. Make sure the
hose is not creased or clenched. Lead the hose
to a suitable drain and make sure that the
end of the hose points down (g. 20a, 20b,
21a). Never point the end of the hose up (g.
21b).
• When the water level in the bottom tray
reaches the specied level the appliance emits
8 beeps and the display shows P1. The air
conditioning/dehumidication stops, but the
fan continues to run.
• Carefully move the appliance to a suitable
drain, remove the bottom plug and allow the
water to drain out (g. 22). Replace the
bottom drain plug and start the appliance. P1
disappears from the display. Contact your
dealer if the fault remains.
NOTE: Remember to replace the bottom drain plug
before starting the appliance.

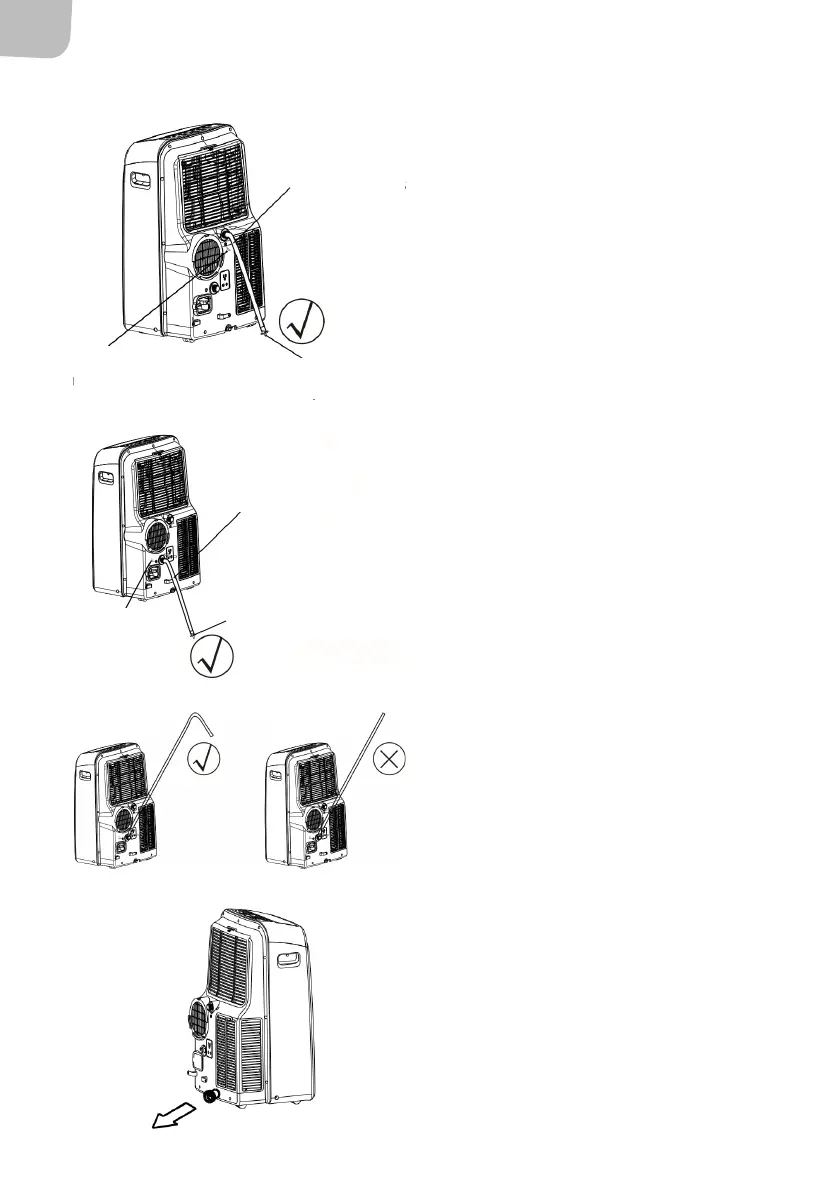

Fig. 20a
Fig. 20b
Fig. 21b
Fig. 22
Fig. 21a
Hose for
continuous
drainage
Remove the top drain
plug
Adapter for drain
hose
Hose for
continuous drainage
Remove the
bottom drain
plug
Adapter for drain
hose
