12

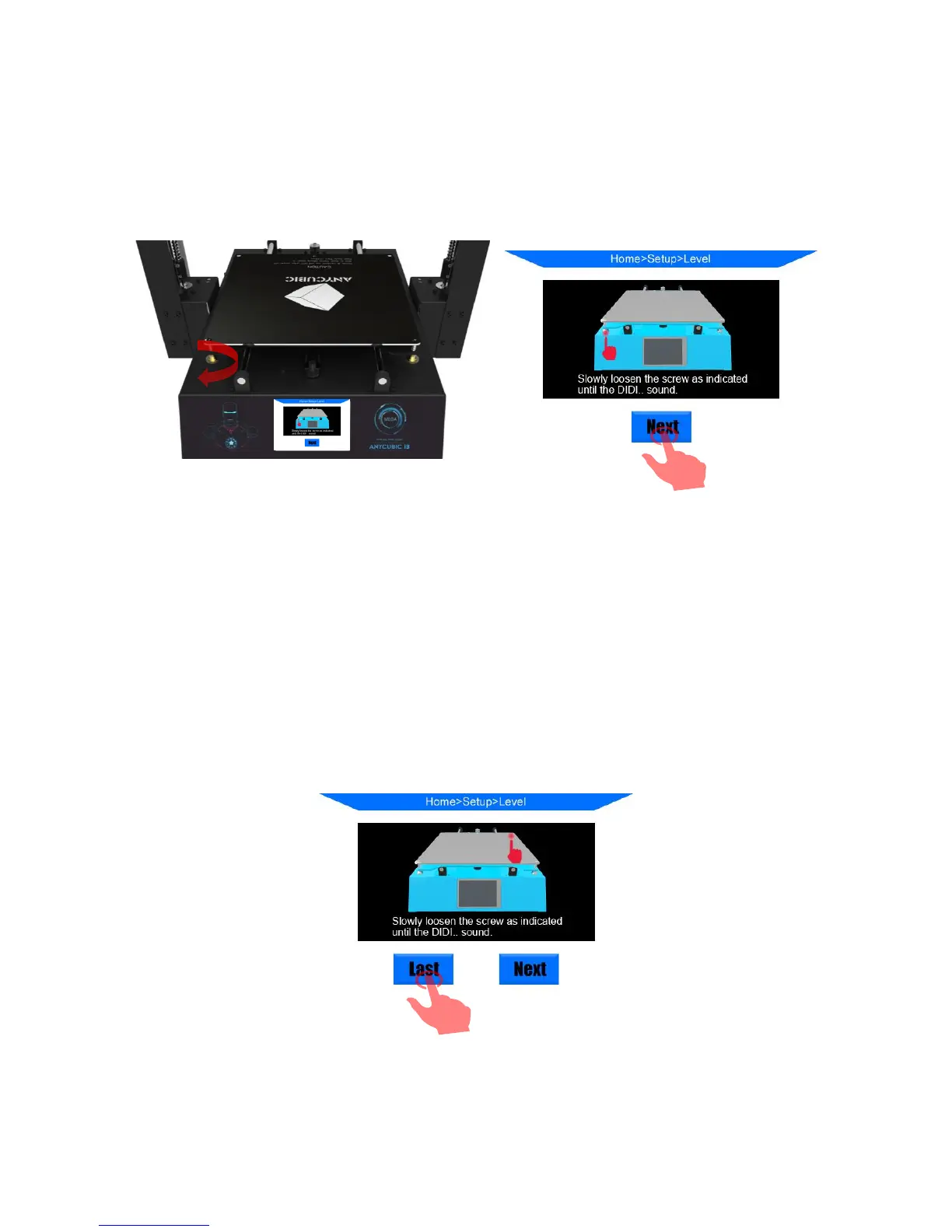

and finally triggers the sensor and there will be audio feedback from the beeper. When
you hear the beep, please stop adjusting the nut and click “Next” for the following
point (Fig. 13). Do the same to the rest points.
(Figure 13)
5. The principle of “Assisted leveling” is to manually adjust the height between proximity
sensor (nozzle) and platform until the beep.
The procedures are: tighten the 4 nuts under print platform-->click “Level”-->loosen
the nut at point No. 1-->hear the beep-->next point…-->done.
During leveling, it is suggested to click “Last” to check the previous points to verify the
results because it may need fine tune few times to achieve the best result (Fig. 14).
(Figure 14)
6. Upon finished, the checking interface will appear (Fig. 15).
