AnyTone AT-588 User Manual

5
3
Red
Black
Regulated power supply (QRP-01)
DC power cable with fuse holder (
QPL-01)
Regulated
power supply
(QRP-01)
Ext. Power jack
ACC terminal
Cigar-Plug connection

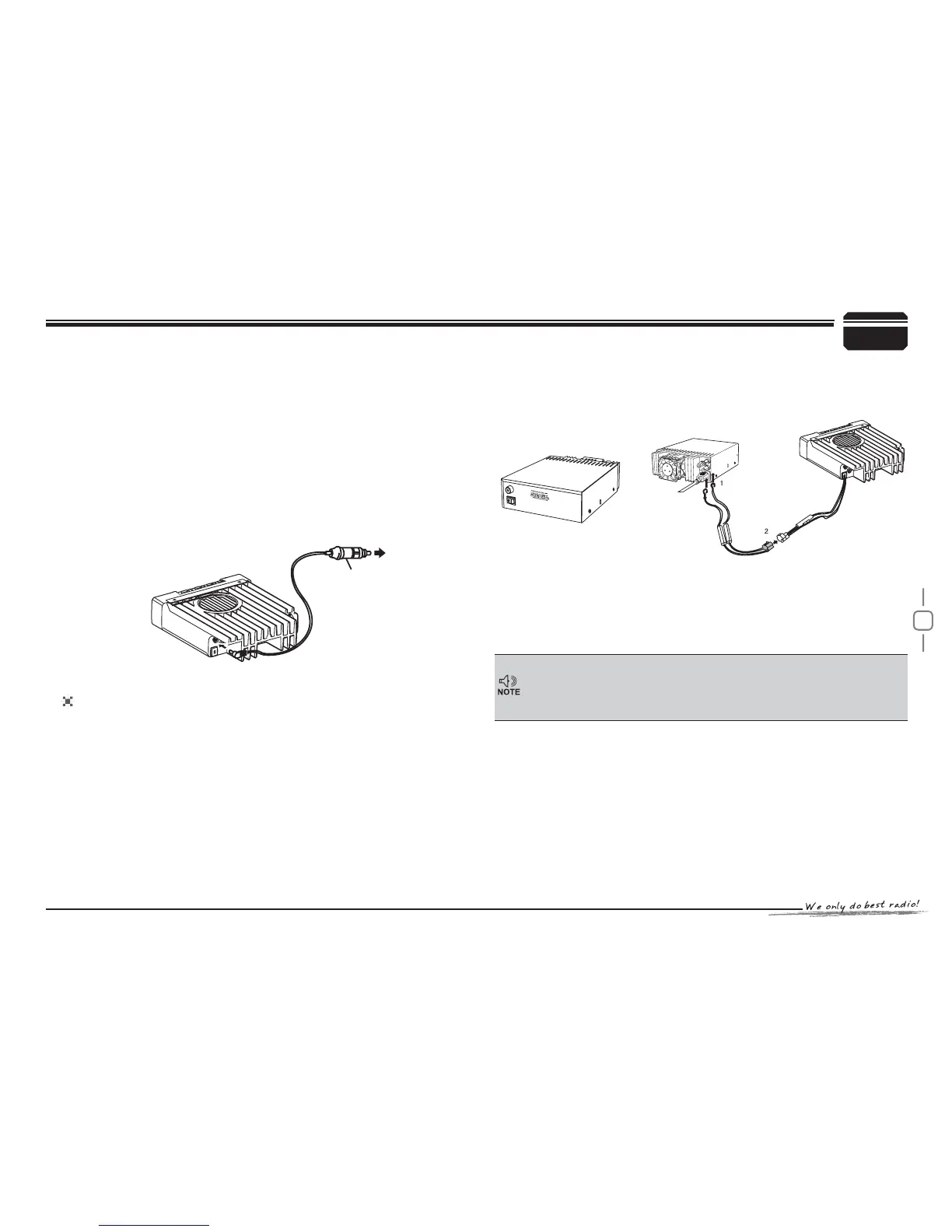

Initial Installation
Before connecting the DC power to the transceiver, be sure to switch
the transceiver and the DC power supply OFF.
Do not plug the DC power supply into an AC outlet until you make all
connections.
,QRUGHUWRXVHWKLVWUDQVFHLYHUIRU¿[HGVWDWLRQRSHUDWLRQ\RXZLOO
need a separate 13.8V DC power supply (not included)
, power
supply( QRP-01) as optional accessories. Please contact local dealer
to require.
The recommended current capacity of your power supply is 12A.
Connect the DC power cable to the regulated DC power supply
1.
and ensure that the polarities are correct. (Red: positive, Black:
negative).
Do not directly connect the transceiver to an AC outlet.
Use the supplied DC power cable to connect the transceiver to a
regulated power supply.
Do not substitute a cable with smaller gauge wires.
To turn on the unit, press the power switch manually while it is
illuminated. (While ignition key is at ACC or ON position)
When the ignition key is turned to ACC or ON position with the
8.
radio's power switch on, the unit turns on automatically and the
power switch will be lit. Turn the ignition key to OFF position or
manually turn the power switch off to shut down the radio.
Using extra cable,power consumption:5MAH.
9.
Without this function,user can turn on/off radio by Power knob.
10.
Connect the transceiver's DC power connector to the connector
2.
on
the DC power cable.
3UHVVWKHFRQQHFWRUV¿UPO\WRJHWKHUXQWLOWKHORFNLQJWDEFOLFNV .
Fixed Station Operation

AnyTone AT-588 Specifications

General

Operating Voltage	13.8V DC ±15%
Weight	1.2 kg
Channel Spacing	12.5/25 kHz
Squelch	Carrier, CTCSS, DCS
Modulation	FM
