AOC N950SW User Manual

Service Manual AOC N950SW
18

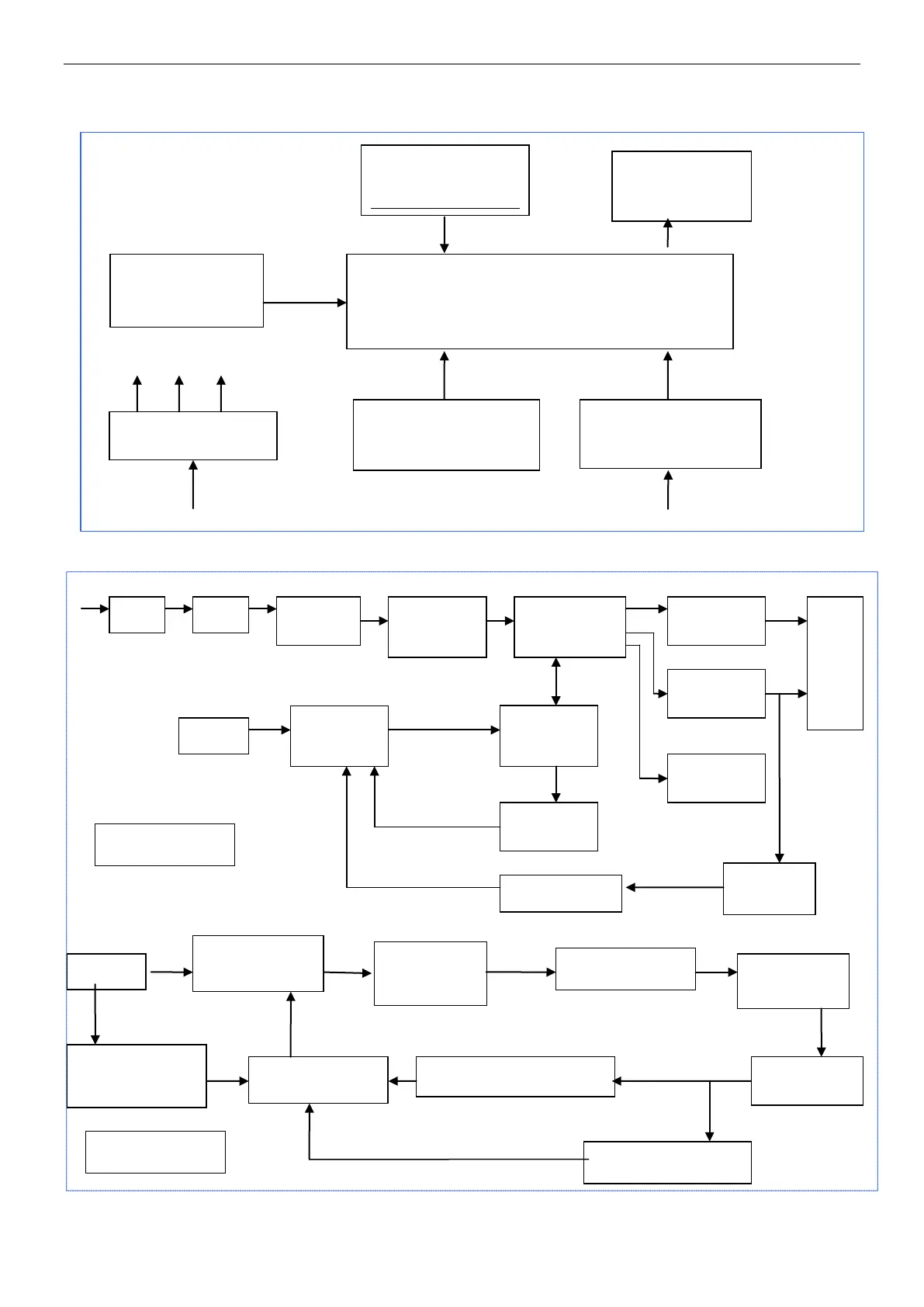

4.3 Main 主板方框图
4.4 Power 电源板方框图
Fuse EMI
Rectifier
Smoothing
Capacitor
Transformer
T901
MOS
Q901
IC-PWM
IC901
16V
Rectifier
5V
Rectifier
16V
5V
Sense
resistor
Vcc
Rectifier
regulating
Sampling
PhotoCoupler
Vcc
Open Lamp Protection
16V DC
IC Power Supply
Converter
DC-AC
Transformer
T801
High Voltage
Output
Resonance NET
Switching MOS
Q802-AM9945
AC input
100-240V
2- CCFL PWM Control IC
Current Sampling
Power part
Inverter part
Crystal 24MHZ
(X401)
Panel Interface
(CN406)
MCU RTD2270LW-CG
(U401)
D-Sub Connector
(CN101)
EEPROM
MX25L2026DM1I
(U403)
H sync
V sync
Key Board Control
(CN401/402)
Voltage converter
5V
5V 3.3V 1.8V
From PC
DDC

AOC N950SW Specifications

General

Brand	AOC
Model	N950SW
Category	Monitor
Language	English
