AOC N950SW User Manual

Service Manual AOC N950SW
28

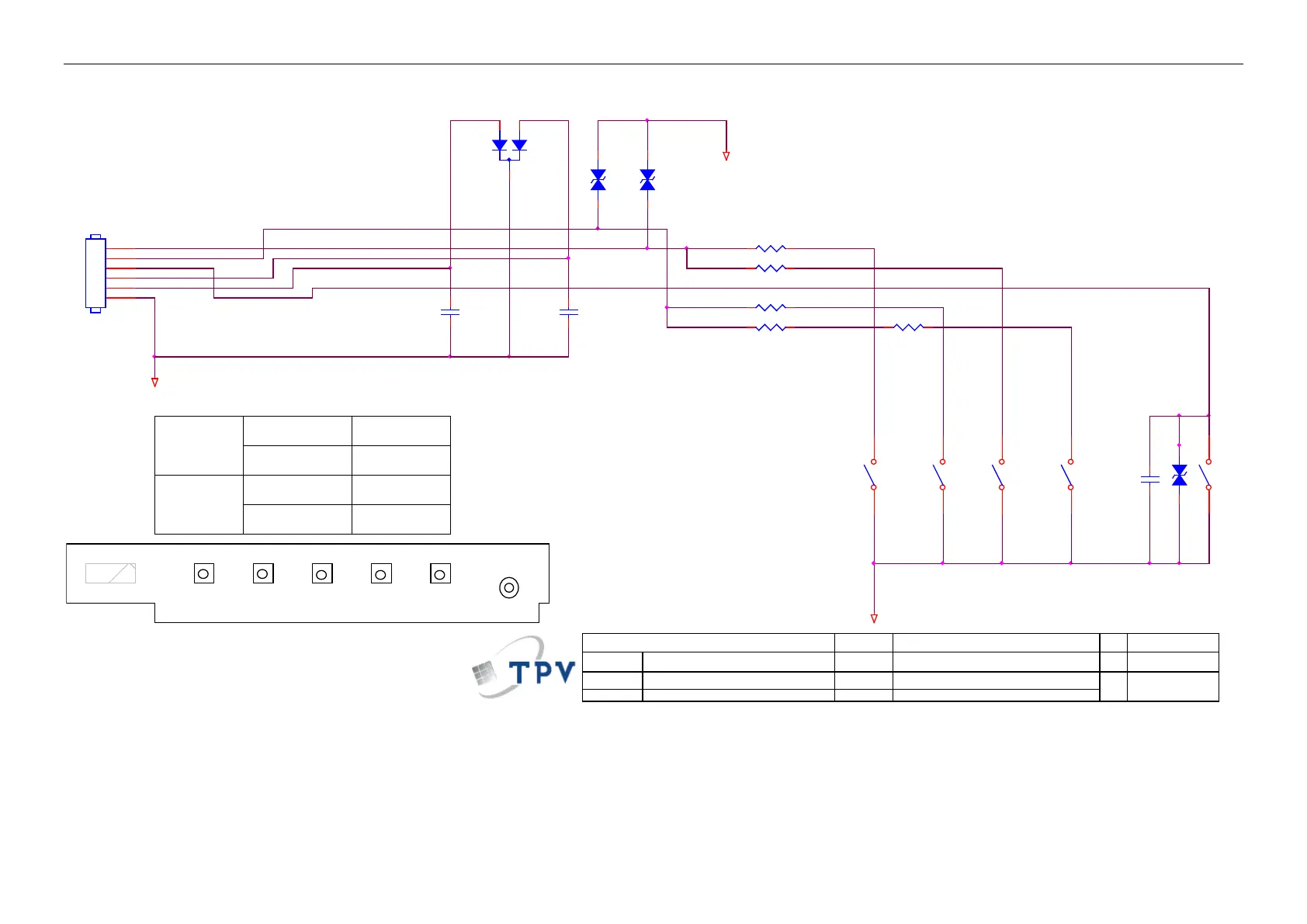

5.3 按键板 key board
MENU
LBADC2
LED_1#
DOWN
DC_POWERON
1 3
2
UB
SUR
LED001
1
2
3
4
5
6
CN001
CONN
POWER
JR001 0 OHM +-5% 1/8W
C007
NC/0.1uF 50V
AUTO
DOWN
1 2
ZD002
MLVS0603M04
LBADC2
(AUTO)
UP
(UP+)
(2K)
(DOWN-)
UP
1 2
ZD003
MLVS0603M04
1
2
ZD001
MLVS0603M04
CONNECTOR
(0)
(MENU) (Power)
AUTO(2.0K)
LBADC1
0V
1.118V
MENU
LED
OEM MODEL Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
e2252Vw C
N/A
B
2 2Wednesday , February 16, 2011
715G4851-K0C-000-0010
<
称爹>
2.0.key
715G4851-K0C-000-0010
SGND
SW002
SW
SW004
SW
SW001
SW
SW005
SW
R003 2KOHM 1% 1/10W
R002 0R01 1/10W
C001
0.1uF 50V
SW003
SW
R001 2KOHM 1% 1/10W
C002
0.1uF 50V
R004
1K 1/10W
LBADC1
0.673V
1.118V
(1K)
SGND
SGND
LED_2#

AOC N950SW Specifications

General

Brand	AOC
Model	N950SW
Category	Monitor
Language	English
