Service Manual AOC N950SW

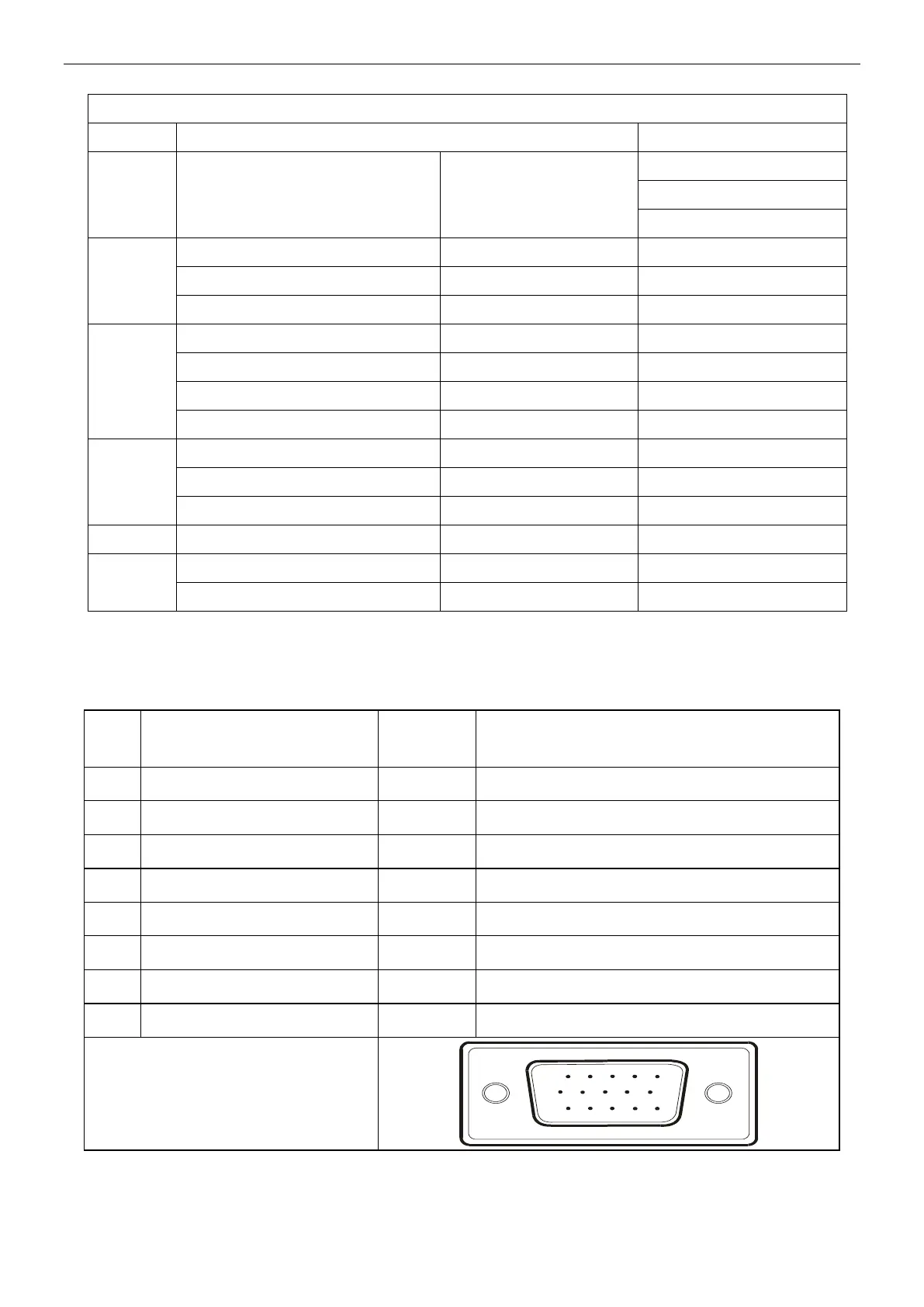

1.2 工厂预设模式
VESA MODES
Mode Resolution Total
Nominal
Clock
(MHz)
VGA
640x480@60Hz 800x525 25.175
640x480@72Hz 832x520 31.5
640x480@75Hz 840x500 31.5
SVGA
800x600@56Hz 1024x625 36
800x600@60Hz 1056x628 40
800x600@72Hz 1040x666 50
800x600@75Hz 1056x625 49.5
XGA
1024x768@60Hz 1344x806 65
1024x768@70Hz 1328x806 75
1024x768@75Hz 1312x800 78.75
1280x720@60Hz 1664x748 74.5
WXGA
1360x768@60Hz 1792x795 85.5
1366x768@60Hz 1792x798 85.5
1.3 接口说明
VGA connector
Pin
No.
Description Pin No. Description
1. Red Input 9. +5VDC
2. Green Input 10. GND
3. Blue Input 11. GND
4. GND 12. SDA- DDC-Serial Data
5. Connection detect 13. H Sync
6. Red GND 14. V Sync
7. Green GND 15. SCL- DDC-Serial Clock
8. Blue GND
